Electric clothes dryers represent one of the most power-hungry appliances in modern homes, requiring specialized wiring to handle their substantial electrical demands. As an electrical engineer with transformer expertise, I recognize how dryer circuits share important characteristics with transformer secondary wiring designed for high-current applications. The wiring connecting your dryer to the electrical panel must safely deliver large amounts of power while maintaining proper voltage levels, similar to how transformer connections must efficiently transfer energy without excessive losses.
Transformer technology relates directly to dryer wiring because both systems must accommodate high current flows while preventing dangerous voltage drops. This relationship becomes particularly important when considering how proper wire sizing affects both safety and performance. While transformers step down voltage to usable levels, the wiring must deliver this power efficiently to prevent overheating and ensure the dryer operates at peak efficiency.
Critical Characteristics of Dryer Wiring
Wires designed for dryer circuits must combine adequate current capacity with durable insulation that can withstand the heat generated in operation. These requirements resemble those for transformer secondary conductors where heat dissipation and current carrying capacity are equally important. Modern dryer wiring typically uses thick copper conductors with insulation rated for at least 60°C, though 75°C or 90°C ratings provide additional safety margin.
The conductor material must maintain stable connections despite the thermal cycling that occurs as the dryer starts and stops. These durability requirements parallel those for transformer connections where repeated heating and cooling can loosen inferior terminations. Proper wire selection prevents dangerous overheating that could lead to insulation failure or electrical fires.
Recommended Wire Types for Dryer Circuits
10/3 NM-B Cable with Ground
For most residential dryer installations, 10/3 NM-B cable (commonly called Romex) provides the standard wiring solution. This cable contains three insulated 10 AWG copper conductors (hot, hot, neutral) plus a bare ground wire, all protected by an outer plastic jacket. The configuration mirrors the three-wire plus ground arrangement used in many transformer secondary connections for balanced 120/240V systems.
The 10 AWG copper conductors can safely handle the 30-amp current requirements of most electric dryers. These capacity specifications resemble those considered when sizing transformer secondary conductors for similar loads. The color-coded insulation (black, red, white) simplifies proper connections at both the dryer outlet and circuit breaker panel.
Individual THHN/THWN Conductors in Conduit
For installations requiring additional protection or where local codes mandate conduit, individual THHN or THWN conductors provide a robust alternative. These single conductors feature durable insulation that resists moisture and heat, making them suitable for dryer circuits in basements or other potentially damp locations. The installation method parallels the protected conductor runs used in commercial transformer installations where extra mechanical protection is needed.
The individual conductors allow for easier replacement or upgrades if future electrical codes change. This flexibility resembles the adaptable nature of transformer connections that may need modification for system upgrades. Proper conduit sizing ensures adequate space for heat dissipation and complies with NEC fill requirements.
Electrical Specifications and Safety Standards
Voltage and Current Requirements
Modern electric dryers typically require a 240V circuit with 30-amp capacity, though some larger models may need 40-50 amps. These power requirements parallel the load considerations for transformer sizing where both voltage and current must be properly matched. The 240V supply provides power to the heating elements while 120V operates the drum motor and controls.
The NEC specifies minimum 10 AWG copper wire for 30-amp dryer circuits, though some inspectors prefer 8 AWG for longer runs. These sizing guidelines resemble the conductor selection process for transformer secondaries where voltage drop and ampacity must both be considered. Proper wire sizing prevents excessive voltage drop that could cause poor dryer performance or overheating.
Grounding and Polarization
Modern dryer installations require proper equipment grounding to prevent shock hazards. These safety measures parallel the comprehensive grounding systems used with transformers that prevent dangerous voltage potentials. The grounding conductor must be properly connected to both the dryer frame and the electrical panel’s grounding system.
Polarization must be maintained with the neutral conductor properly identified and connected. These wiring practices resemble the phase identification requirements for transformer connections where incorrect phasing could create hazardous conditions. All connections must be tight and secure to prevent arcing or overheating at terminals.
Installation Methods and Best Practices
Outlet and Connection Techniques
Dryer outlets require heavy-duty receptacles specifically rated for 30-amp 240V service. These connection requirements mirror those for high-current transformer terminals where robust contacts prevent overheating. The receptacle should match the plug configuration on your dryer, with modern installations typically using 4-prong NEMA 14-30R outlets.
All connections must be made with proper torque to ensure good electrical contact without damaging terminals. These installation practices resemble the careful termination techniques used in transformer connections where loose lugs can cause dangerous hot spots. Anti-oxidant compound may be used on aluminum wire connections to prevent corrosion.
Circuit Protection and Overcurrent Devices
Dryer circuits must be protected by a dedicated circuit breaker matching the wire ampacity. These protection requirements parallel those for transformer secondaries where overcurrent devices must coordinate with conductor ratings. A double-pole 30-amp breaker is standard for most dryer installations, providing simultaneous interruption of both hot legs.
The breaker must be properly sized to protect the wiring while allowing normal startup currents. These protection considerations resemble those for transformer primary protection where inrush currents must be accommodated. AFCI protection may be required for dryer circuits in some jurisdictions, adding another layer of safety.
Comparison with Alternative Wiring Methods
Aluminum vs Copper Conductors
While copper conductors dominate modern dryer installations, aluminum wiring may be found in some older homes. These material differences parallel those considered in transformer design where copper windings are preferred but aluminum is sometimes used. Aluminum wiring requires special termination techniques and compatible devices to prevent oxidation problems.
The larger diameter of aluminum conductors for equivalent current capacity can make connections more challenging. These installation considerations resemble those faced when working with aluminum transformer windings where proper compression and anti-oxidants are critical. Most electricians prefer copper for dryer circuits due to its superior conductivity and reliability.

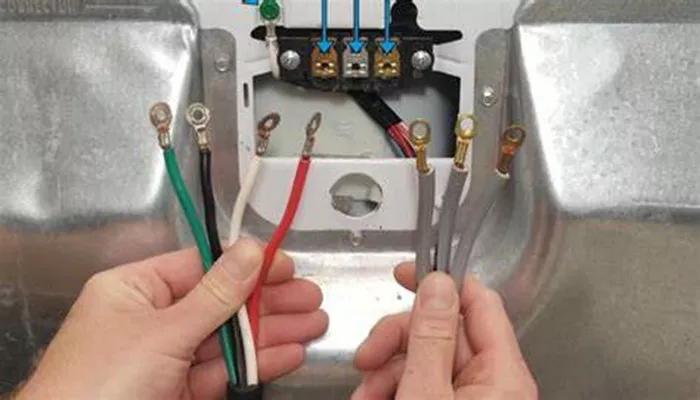

Three-Wire vs Four-Wire Configurations
Older dryer installations often used 3-wire circuits (hot, hot, neutral-ground), while modern codes require 4-wire circuits (hot, hot, neutral, ground). These evolving standards parallel changes in transformer grounding practices where separate neutral and ground paths are now mandated. The 4-wire configuration provides improved safety by isolating neutral currents from the equipment ground.
Upgrading from 3-wire to 4-wire may require running new cable if the existing wiring lacks a separate ground conductor. These modification requirements resemble those encountered when updating older transformer installations to current grounding standards. The improved safety justifies the additional installation effort in most cases.
Future-Proofing Your Dryer Wiring
Anticipating Higher Efficiency Models
Future dryer models may require different electrical characteristics as technology evolves. These potential changes parallel the load variations considered in transformer sizing where future equipment upgrades must be anticipated. Installing conduit rather than NM cable makes future wiring changes easier if dryer requirements change.
Choosing wire with higher temperature ratings provides additional safety margin for future high-efficiency models. These conservative design practices resemble the engineering margins built into transformer specifications where extra capacity improves longevity. The small additional cost of higher-rated materials pays dividends in flexibility.
Smart Dryer Integration
Modern dryers increasingly incorporate smart features and connectivity options. These technological advancements parallel the digital monitoring systems being added to transformer installations. Planning for potential low-voltage control wiring or communication cables during initial installation simplifies future smart home integration.
Installing empty conduit or pull strings facilitates later additions without major renovations. These forward-looking installation practices resemble those used in commercial electrical systems where expansion is anticipated. A well-planned dryer circuit can adapt to emerging technologies while maintaining safety and performance.
Conclusion
Proper wire selection for dryer circuits requires careful consideration of current requirements, safety standards, and potential future needs. The relationship between wire quality and appliance performance becomes particularly evident when examining long-term operation. Just as transformer design carefully considers conductor sizing and insulation, dryer wiring must account for both immediate requirements and possible upgrades.
The electrical principles governing dryer installations share fundamental concepts with transformer applications, particularly regarding high-current capacity and proper grounding. By understanding these principles and following best practices, installers can create robust dryer circuits that deliver years of safe, reliable service. The careful attention to wire type, connection methods, and protection standards ensures optimal performance while minimizing fire and shock hazards.
As appliance technology continues to evolve, the electrical infrastructure supporting dryers must be both capable and adaptable. This comprehensive approach mirrors the engineering considerations applied to transformer systems where performance and safety are equally important. Proper wire selection and installation techniques ultimately determine the reliability and safety of your dryer’s electrical connection.
