What Is a Twisted Pair Wire?

by jingji47

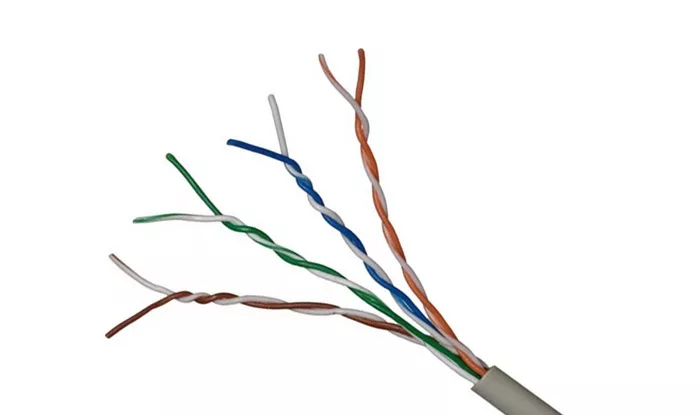

Twisted pair wiring represents one of the most fundamental and widely used conductor configurations in modern electrical and communication systems. As an electrical engineer specializing in transformers, I recognize twisted pair’s critical role in both power and signal transmission applications. This simple yet effective design consists of two insulated copper wires twisted together in a helical pattern, creating a balanced transmission line that offers significant advantages over parallel conductor arrangements.

The twisted pair concept shares important similarities with transformer winding techniques where conductor positioning directly affects electromagnetic performance. Both applications require careful consideration of electromagnetic interference (EMI) reduction and signal integrity maintenance. The twisting action in these cables creates a natural cancellation effect for electromagnetic fields, much like the carefully arranged windings in a transformer core work to contain and direct magnetic flux.

Advertisements

​​Key Characteristics of Twisted Pair Wiring​​

The physical twisting of conductors provides inherent noise immunity by ensuring any interference affects both wires equally. This balanced transmission approach parallels the symmetrical winding techniques used in transformer construction where balanced flux distribution is essential for efficient operation. The number of twists per unit length, known as the twist rate, determines the cable’s effectiveness at canceling various interference frequencies.

Advertisements

Twisted pair cables maintain consistent electrical characteristics along their length, similar to the uniform winding distribution required in transformer coils. This consistency ensures predictable performance whether used for low-voltage control signals or higher-current applications. The cable’s characteristic impedance, determined by conductor spacing and insulation properties, must match connected equipment for optimal power transfer, much like impedance matching considerations in transformer design.

Advertisements

Composition and Construction Details

​​Conductor Materials and Insulation Types​​

Twisted pair wires typically use high-purity copper conductors, similar to the winding materials in quality transformers where conductivity directly impacts efficiency. The copper may be solid or stranded depending on flexibility requirements, with solid conductors offering better electrical performance for fixed installations and stranded versions providing necessary flexibility for movable applications.

Advertisements

Insulation materials range from basic PVC to advanced polyethylene compounds, each selected for specific dielectric properties and environmental resistance. These material choices mirror the insulation selection process for transformer windings where voltage rating and thermal performance are primary considerations. Some twisted pair cables incorporate gas-injected foam insulation to reduce dielectric losses, a technique comparable to the insulation optimization methods used in high-frequency transformer designs.

​​Twisting Patterns and Pair Configurations​​

The precise twisting pattern significantly affects cable performance, with tighter twists generally providing better noise rejection at higher frequencies. This relationship between physical configuration and electrical performance resembles how transformer winding geometry influences inductance and leakage flux characteristics. In multi-pair cables, different twist rates are often used for adjacent pairs to minimize crosstalk, similar to the careful layer insulation techniques employed in transformer winding stacks.

Shielded twisted pair variants include metallic foil or braid coverings that provide additional EMI protection, much like the electrostatic shields used in some transformer designs to prevent capacitive coupling between windings. These shielded versions are essential for sensitive measurement circuits or high-noise environments, paralleling the shielding requirements for instrument transformers used in electrical metering applications.

Electrical Properties and Performance Characteristics

​​Impedance and Transmission Line Effects​​

Properly designed twisted pair cables exhibit consistent characteristic impedance, typically ranging from 100 to 150 ohms for communication cables. This impedance stability resembles the carefully controlled leakage reactance in transformer designs where predictable electrical characteristics are necessary for proper system operation. The twisted geometry helps maintain impedance uniformity along the cable length by preventing conductor separation that could alter electrical properties.

At higher frequencies, twisted pair wiring behaves as a transmission line where signal propagation becomes dependent on the distributed capacitance and inductance of the pair. These transmission line effects parallel the frequency-dependent behavior of transformer windings where interwinding capacitance and leakage inductance affect high-frequency performance. Proper termination becomes crucial to prevent signal reflections, similar to impedance matching requirements in pulse transformer applications.

​​Noise Rejection and EMI Performance​​

The twisted pair’s greatest advantage lies in its exceptional common-mode noise rejection capability. This noise immunity results from the balanced nature of the twisted configuration where interference affects both conductors equally, allowing receivers to cancel out noise through differential signaling. This principle mirrors the noise rejection techniques used in transformer-coupled circuits where common-mode chokes exploit similar balanced transmission characteristics.

Electromagnetic interference reduction in twisted pairs occurs through two primary mechanisms: cancellation of induced voltages due to the twisting geometry and balancing of capacitive coupling between conductors. These noise reduction strategies resemble the techniques used in transformer design to minimize stray magnetic fields and capacitive coupling between windings. The effectiveness increases with higher twist rates, much like how closer winding spacing improves transformer coupling efficiency.

Applications in Electrical Systems

​​Communication and Data Transmission​​

Twisted pair wiring forms the backbone of modern telecommunications infrastructure, from telephone lines to high-speed Ethernet networks. These applications parallel the use of specialized transformer couplers in communication systems where signal integrity and isolation are paramount. The balanced nature of twisted pair transmission makes it ideal for carrying differential signals over long distances with minimal interference, similar to how balanced transformer windings maintain signal quality in measurement applications.

Different categories of twisted pair cables (Cat5, Cat6, etc.) are optimized for specific bandwidth requirements, much like various transformer designs are tailored for different frequency ranges. Higher category cables feature more stringent twist uniformity and shielding requirements to support faster data rates, comparable to the precision winding techniques used in broadband transformers designed for wide frequency response.

​​Power and Control Circuit Applications​​

Beyond communications, twisted pair wiring finds extensive use in low-voltage power and control circuits where noise immunity is critical. These applications often interface with control transformers where clean signal transmission ensures proper equipment operation. Industrial sensor wiring frequently uses twisted pairs to maintain measurement accuracy in electromagnetically noisy environments, similar to how instrument transformers require careful wiring practices to preserve signal fidelity.

Motor control circuits often employ twisted pair wiring for feedback signals and encoder connections, where the cable’s noise rejection prevents false triggering from variable frequency drive emissions. This usage parallels the noise suppression requirements in transformer-coupled motor control systems where electrical noise can disrupt sensitive control electronics. The twisting action helps maintain signal integrity even when routed near power conductors carrying substantial current.

Comparison with Alternative Wiring Methods

​​Twisted Pair vs Coaxial Cable​​

While coaxial cables offer superior shielding for single-ended signals, twisted pairs provide better performance for differential signaling at lower cost. This trade-off resembles the choice between different transformer coupling methods where balanced configurations often outperform single-ended designs in noise rejection. Coaxial cables have a defined center conductor and outer shield, whereas twisted pairs treat both conductors equally, similar to how transformer secondaries can be configured for either balanced or unbalanced output.

The balanced nature of twisted pair transmission makes it less susceptible to ground loop issues compared to coaxial systems, paralleling the ground isolation benefits provided by properly designed transformer couplings. However, coaxial cables typically offer higher bandwidth for a given conductor size, much like how certain transformer designs can achieve wider frequency response through specialized construction techniques.

​​Twisted Pair vs Parallel Conductor Wiring​​

Simple parallel conductor arrangements lack the noise immunity of twisted pairs due to unequal exposure to electromagnetic interference. This performance difference mirrors the distinction between carefully wound transformer coils and simple inductor designs where flux distribution significantly affects performance. The twisting action ensures both conductors experience nearly identical interference patterns, allowing receivers to effectively cancel out noise through common-mode rejection.

Parallel conductors also exhibit higher crosstalk between adjacent circuits compared to twisted pairs, similar to how poorly arranged transformer windings suffer from increased interwinding capacitance. The consistent spacing maintained by the twisting action provides predictable electrical characteristics along the entire cable length, much like uniform transformer winding distribution ensures consistent performance across the operating range.

Installation Considerations and Best Practices

​​Proper Handling and Routing Techniques​​

Twisted pair cables should maintain their natural twist rate during installation to preserve designed electrical characteristics. This handling requirement resembles the care taken when installing transformer leads where conductor positioning affects performance. Excessive untwisting at termination points can degrade noise immunity, similar to how improper transformer lead dressing can increase susceptibility to electromagnetic interference.

Routing twisted pair cables away from strong electromagnetic sources minimizes potential interference, paralleling the installation practices for sensitive transformer-coupled measurement circuits. When crossing power cables, the intersection should be made at 90 degrees to reduce inductive coupling, much like the orthogonal winding arrangements used in some transformer designs to minimize unwanted interactions between circuits.

​​Termination and Connection Methods​​

Proper termination techniques are critical for maintaining the twisted pair’s noise rejection capabilities throughout the connection point. These requirements mirror the careful connection practices used in transformer installations where termination quality directly affects performance. The use of twisted-pair-specific connectors that maintain conductor pairing and spacing ensures consistent impedance up to the connection point.

Balanced termination schemes should be used throughout the system to preserve the twisted pair’s differential signaling advantages. This approach parallels the balanced circuit design principles employed in transformer-coupled audio and measurement systems. Any imbalance introduced at connection points can convert common-mode noise into differential noise that the system cannot reject, similar to how transformer winding imbalances can degrade common-mode rejection ratios.

Conclusion

Twisted pair wiring has maintained its position as a fundamental component in electrical and communication systems due to its elegant simplicity and proven effectiveness. The technology’s inherent noise rejection capabilities and balanced transmission characteristics continue to make it indispensable in an era increasingly dominated by digital communications and sensitive electronic equipment. Much like transformer designs that have evolved while maintaining core electromagnetic principles, twisted pair wiring has adapted to modern requirements while preserving its essential noise-canceling geometry.

Looking ahead, twisted pair wiring will continue to evolve alongside advancements in materials science and manufacturing technology while maintaining its core benefits. The technology’s adaptability ensures it will remain a vital component in everything from basic power wiring to advanced data networks, much like transformers continue to serve essential roles across power systems despite centuries of technological progress. By understanding and properly applying twisted pair principles, electrical engineers can design systems that deliver reliable performance even in challenging electromagnetic environments.
