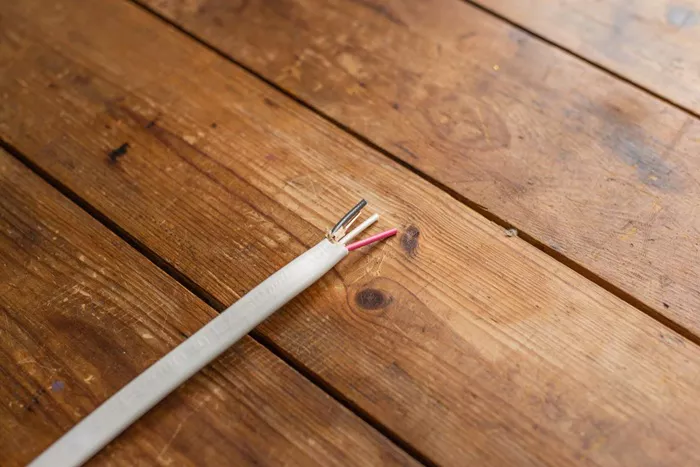

Non-metallic (NM) electrical wire represents a standardized cable assembly designed for safe power distribution in residential and commercial buildings. As an electrical engineer with transformer expertise, I recognize NM cable’s critical role in connecting service panelboards to branch circuits throughout structures powered by distribution transformers. These plastic-sheathed cables provide a complete wiring solution that eliminates the need for separate metallic conduit while maintaining compliance with electrical safety codes.
The construction of NM cable bundles color-coded insulated conductors within a durable thermoplastic jacket, creating an integrated wiring system that simplifies installation compared to traditional conduit methods. This design approach differs from transformer winding configurations but serves the complementary purpose of safely delivering power from distribution transformer secondaries to utilization equipment. NM wiring’s material composition and structural design reflect careful engineering considerations that balance electrical performance, mechanical protection, and installation efficiency.
Key Characteristics of Non-Metallic Cable
Standard NM-B cable contains two or more insulated current-carrying conductors with an additional bare copper ground wire, all enclosed within a moisture-resistant outer sheath. These conductor arrangements mirror the multiple voltage outputs available from distribution transformer secondaries that serve various circuit requirements in buildings. The cable’s polyvinyl chloride (PVC) based insulation system maintains flexibility across typical indoor temperature ranges while providing reliable electrical isolation and physical protection.
Temperature ratings for NM cable conductors reach 90°C, though the overall cable assembly carries a 60°C rating under continuous load conditions. These thermal specifications align with the temperature class ratings used for transformer insulation systems where different components may have varying thermal limits. Proper NM cable sizing ensures safe operation within these temperature constraints while efficiently delivering power from transformer secondaries to branch circuits throughout the building.
Composition and Construction Details
Conductor Materials and Configuration
NM cables exclusively use copper conductors due to their superior conductivity and compatibility with standard connection methods. This material choice parallels the copper windings found in most distribution transformers where energy efficiency and reliable terminations are essential. The conductors follow standardized American Wire Gauge (AWG) sizing, with 14 AWG and 12 AWG being most prevalent for residential branch circuits fed by typical 240/120V transformer secondaries.
The integrated bare copper ground conductor provides critical fault current protection, similar to the grounding systems incorporated in transformer installations for equipment and personnel safety. This ground wire runs parallel to the insulated conductors within the cable assembly, completing the essential safety circuit required by modern electrical codes. The ground path ensures low-impedance fault current return to the source transformer, enabling protective devices to operate effectively during fault conditions.
Insulation and Jacket Materials
Individual conductors within NM cable feature color-coded thermoplastic insulation that identifies their function in the circuit. These insulation coloring conventions parallel the phase identification markings found on transformer terminals that help maintain proper system phasing during installation. The outer sheathing consists of a flame-retardant PVC compound that resists moisture penetration, abrasion, and physical damage during normal installation and service conditions.
The composite construction creates a unified cable assembly that streamlines installation while meeting all necessary electrical and mechanical protection requirements. This design efficiency resembles the space-saving benefits of modern compact transformer designs that integrate multiple features into single units. The materials maintain stable electrical properties in typical indoor environments while remaining lightweight enough for efficient handling during building wiring projects of all scales.
Electrical Properties and Performance Standards
Voltage Ratings and Current Capacity
Standard NM cable carries a 600-volt rating, making it suitable for nearly all residential and light commercial power distribution applications. These voltage requirements align perfectly with common transformer secondary voltages that power building electrical systems throughout North America. The cable’s ampacity follows NEC Table 310.16 for copper conductors, with necessary adjustments made for ambient temperature conditions and cable bundling situations that affect heat dissipation.
Current carrying capacity decreases when multiple NM cables are installed together in bundles due to reduced heat dissipation capabilities. These derating factors parallel the thermal considerations applied to transformer installations where heat buildup directly affects performance and longevity. Proper conductor sizing ensures NM cable can handle anticipated loads without exceeding temperature limits that could prematurely degrade insulation materials over years of service.
Compliance with Safety Standards
NM wire must meet UL Standard 719 and NFPA 70 (National Electrical Code) requirements for building wiring applications. These rigorous certification standards ensure consistent quality and performance across manufacturers, similar to the standards governing transformer production and installation. Nationally recognized testing laboratories thoroughly evaluate NM cable for flame resistance, insulation integrity, mechanical durability, and environmental performance before granting approval for use in construction projects.
Permanent markings on the cable jacket clearly identify all key specifications including wire size, temperature rating, voltage class, and compliance certifications. These identification methods resemble the comprehensive nameplate information found on transformers that communicates essential performance characteristics to installers and inspectors. Proper labeling helps ensure correct cable selection for specific applications while simplifying compliance verification during electrical inspections and system maintenance.
Installation Methods and Best Practices
Residential Wiring Techniques
NM cable installation begins with careful circuit planning to optimize cable routes and minimize voltage drop throughout the building. These design considerations parallel the voltage regulation planning for transformer installations where conductor length and sizing directly affect system performance. The cable typically runs through framing members with protective metal plates installed at potential puncture points, similar to the mechanical protection used for transformer secondary connections in building applications.
Proper support at regular intervals prevents excessive sagging that could strain connections over time while maintaining professional installation standards. These support requirements resemble the secure mounting techniques used for transformer installations where mechanical stability ensures long-term reliability. Electrical codes mandate NM cable be secured within 12 inches of boxes and at intervals not exceeding 4.5 feet for most residential applications, with additional supports required in visible attic and basement areas.
Commercial Building Applications
In commercial construction projects, NM cable often routes through dedicated wireways or above suspended ceilings with appropriate support systems. These installation methods parallel the careful routing of transformer secondary conductors in commercial facilities where both functionality and appearance matter. Fire-rated assemblies frequently require special penetration sealing methods where cables pass through walls or floors, similar to firestop requirements for transformer vault penetrations in large buildings.
Transition points between NM cable and other wiring methods require properly sized junction boxes and listed connectors to maintain system integrity. These interface details resemble the connection compartments used in transformer installations where different wiring systems must interact safely and reliably. Installers must maintain proper cable bending radii to prevent insulation damage during pulling, much like the careful bending requirements for transformer leads during equipment installation.
Comparison with Alternative Wiring Methods
NM Cable vs Metallic Sheathed Cable
Armored cable (AC) and metal-clad (MC) cable provide superior mechanical protection through their interlocked metal sheaths but at significantly higher material and installation costs. These alternative wiring methods resemble the armored construction sometimes specified for transformer secondary conductors in industrial environments where physical protection is paramount. While offering excellent durability, these metallic cables are heavier, more difficult to install, and require careful grounding of their metal sheaths.
NM cable’s lighter weight and lower installed cost make it preferable for typical residential applications where extreme physical protection isn’t required. This economic advantage parallels the cost considerations when choosing between different transformer types for various applications. The plastic sheathing also eliminates potential grounding and bonding issues that can occur with damaged metallic cable armor over time.
NM Cable vs Conduit Wiring Systems
Conduit wiring systems allow easier future circuit modifications and additions but require substantially more labor and materials during initial installation. These trade-offs resemble the decisions faced when choosing between different transformer connection methods where flexibility must balance with installation complexity and cost. NM cable provides a practical compromise for permanent installations where major circuit changes are unlikely during the building’s service life.
The integrated design of NM cable eliminates the need for field assembly of conduit and separate conductors, significantly reducing installation time and skill requirements. This installation efficiency mirrors the advantages of factory-assembled transformer equipment versus field-constructed alternatives. While conduit may be required in certain commercial or industrial applications, NM cable remains the standard choice for most residential wiring projects where cost-effectiveness and adequate protection are primary considerations.
Maintenance and Troubleshooting Considerations
Preventative Inspection Practices
Periodic visual inspections of accessible NM cable runs help identify potential problems before they escalate into serious safety hazards. These maintenance procedures parallel the inspection protocols for transformer connections where early detection prevents catastrophic failures. Qualified electricians should examine cable insulation for damage, check for rodent chewing in vulnerable areas, and inspect termination points for signs of overheating or corrosion during routine maintenance cycles.
Infrared thermographic scans of electrical panels and visible connections can reveal developing hot spots caused by loose NM cable terminations or overloaded circuits. These diagnostic techniques resemble the thermal imaging surveys used to assess transformer performance where temperature variations often indicate underlying problems. Proactive identification of connection issues allows for timely repairs before damage spreads to cable insulation or connected equipment.
Repair and Replacement Guidelines
Damaged NM cable sections require complete replacement when insulation integrity becomes compromised, as field repairs cannot restore the original safety margins. These replacement standards mirror the conductor replacement protocols for transformer windings where partial repairs might create hidden reliability risks. All splices must occur within approved junction boxes using listed connectors that maintain the cable’s original temperature and voltage ratings throughout the repaired circuit.
When upgrading electrical systems or adding new circuits, installers should consider potential future load increases when selecting NM cable sizes. These planning considerations resemble the capacity margins built into transformer specifications that allow for reasonable load growth over time. Slight oversizing of conductors during initial installation often prevents costly rewiring projects when adding circuits or upgrading appliances in subsequent years.
Future Developments in Building Wiring Technology
Smart NM Cable Concepts
Emerging technologies may integrate circuit monitoring capabilities directly into NM cable designs through innovative material science and manufacturing techniques. These potential innovations parallel the condition monitoring systems being incorporated into modern transformer designs. Future NM cables could include embedded sensors that detect insulation degradation, overheating, or ground faults before failures occur, significantly improving residential electrical safety through early warning systems.
Advanced insulation materials with color-changing properties that indicate excessive heat exposure represent another promising development direction. These smart materials would function similarly to temperature indicators used on transformer windings where thermal stress monitoring is critical for preventing insulation breakdown. Such technological advancements could help prevent electrical fires by providing visible warnings of developing problems in branch circuits before they reach dangerous levels.
Sustainable Material Innovations
New NM cable formulations are beginning to incorporate recycled copper conductors and eco-friendly insulation compounds that reduce environmental impact. These sustainable developments align with green initiatives in transformer manufacturing where material choices increasingly consider lifecycle environmental factors. Research into bio-based plasticizers and halogen-free flame retardants may further reduce the ecological footprint of future building wire installations while maintaining or improving current safety standards.
Improved recycling processes for NM cable could enhance recovery rates of valuable copper while properly managing insulation material disposal. These end-of-life solutions resemble the comprehensive recycling programs established for retired transformers where material recovery helps offset disposal costs and environmental impacts. Sustainable lifecycle management will become increasingly important for all electrical infrastructure components as environmental regulations continue evolving worldwide.
Conclusion
Non-metallic electrical cable has established itself as the fundamental building block of safe and efficient power distribution in residential and light commercial construction. The technology’s design principles share important engineering considerations with transformer systems where material selection, thermal performance, and installation quality directly impact reliability and safety. As electrical codes and building practices continue evolving, NM wiring remains a trusted solution for delivering power from service transformers to the growing array of electrical devices in modern structures.
The ongoing development of NM cable variants and related wiring methods demonstrates the electrical industry’s commitment to improving safety while meeting changing installation requirements and environmental standards. These advancements parallel the continuous innovations seen in transformer design where new materials and construction techniques regularly enhance performance and efficiency. Proper selection and professional installation of NM cable ensures building electrical systems will deliver decades of safe, reliable operation that matches the quality expected from modern transformer equipment.
Looking ahead, NM wiring will likely incorporate new materials and intelligent features while maintaining the core characteristics that have made it an industry standard for generations. These future developments will mirror the technological progress in transformer engineering where traditional electromagnetic principles combine with advanced monitoring and control capabilities. By thoroughly understanding NM cable’s properties and applications, electrical professionals can design and install systems that provide exceptional service life while supporting the evolving power distribution needs of homes and businesses worldwide.
