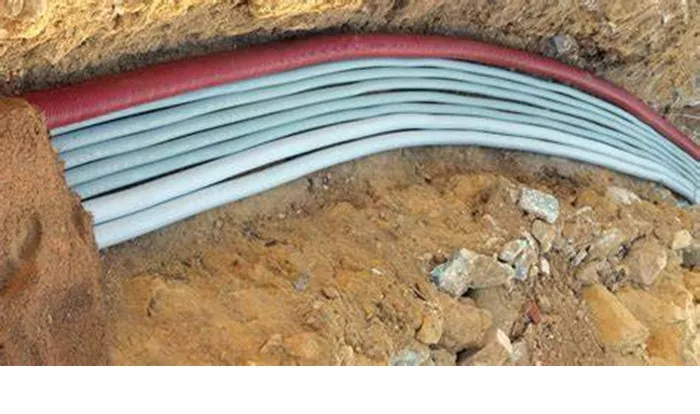

Buried conduit wiring provides a protected pathway for electrical conductors in outdoor and underground applications. As an electrical engineer specializing in power distribution systems, I recognize how underground conduit installations complement transformer setups by creating durable connections between equipment. The National Electrical Code (NEC) specifies several wire types suitable for burial in conduit, each designed to withstand the unique challenges of below-grade installations while maintaining reliable electrical performance.
These wiring systems share critical design considerations with transformer installations where moisture protection and long-term reliability are equally important. While transformers handle voltage transformation and power distribution, underground conduit wiring completes the circuit to end-use equipment while providing superior mechanical protection. The relationship becomes particularly vital in industrial complexes and utility installations where robust electrical infrastructure must endure harsh environmental conditions.
Key Characteristics of Conduit-Buried Wiring
Wires designed for underground conduit must resist moisture infiltration and maintain insulation integrity despite constant soil contact. These environmental requirements resemble the protection needed for underground transformer installations where waterproofing is essential for reliable operation. Underground-rated wires typically carry THWN or XHHW insulation designations, indicating suitability for wet locations and burial applications when installed in approved conduit systems.
Temperature ratings for buried conduit wiring generally range from -20°C to 90°C, accommodating seasonal ground temperature variations similar to those affecting underground transformer performance. Proper wire sizing accounts for reduced heat dissipation in buried conditions, just as transformer ratings consider installation environment factors that affect cooling capacity.
Approved Wire Types for Underground Conduit
THWN-2 Thermoplastic Insulated Wire
THWN-2 wire represents the most common conductor choice for underground conduit installations due to its balanced performance characteristics. The dual-rated insulation (Thermoplastic Heat and Water-resistant Nylon-coated) provides excellent moisture resistance while maintaining flexibility for easier pulling through conduit runs. This wire type’s construction parallels the durable insulation systems used in transformer windings where reliable performance under varying conditions is essential.
Available in copper and aluminum versions, THWN-2 wire accommodates different installation requirements and budget considerations, similar to how transformer designs offer various conductor material options. The nylon jacket provides additional protection against abrasion during installation, much like the mechanical protection built into transformer lead terminations. Color-coded insulation simplifies phase identification throughout the electrical system, maintaining consistency with transformer connection color conventions.
XHHW-2 Cross-Linked Polyethylene Wire
XHHW-2 wire offers superior thermal and chemical resistance for demanding underground applications near transformer installations. The cross-linked polyethylene insulation provides enhanced dielectric strength and heat resistance compared to standard THWN wire, making it ideal for industrial environments and higher temperature locations. These improved characteristics resemble the advanced insulation systems used in high-performance transformers where increased thermal capacity extends equipment life.
The thicker insulation on XHHW-2 wire allows for higher voltage ratings in the same conduit size, similar to how transformer insulation systems accommodate various voltage classes. The wire’s construction provides excellent resistance to soil chemicals and moisture, crucial for maintaining reliable underground connections to pad-mounted transformers and other outdoor electrical equipment.
Specialized Underground Conduit Wiring
RHW-2 Rubber Insulated Wire
RHW-2 (Rubber Heat and Water-resistant) wire serves specialized underground applications requiring exceptional flexibility and moisture resistance. This wire type’s rubber-based insulation provides superior performance in wet locations and can withstand occasional submersion, making it suitable for conduit runs in flood-prone areas near transformer installations. The material properties resemble the resilient insulation used in submersible transformer applications where constant moisture exposure occurs.
The wire’s construction maintains stable electrical properties despite temperature fluctuations common in underground environments, similar to how transformer insulation systems must perform reliably through seasonal changes. RHW-2 wire is particularly useful for underground connections to vault-installed transformers where conduit runs may encounter standing water or high humidity conditions.
MV-90 Medium Voltage Cable
MV-90 cable is specifically engineered for underground medium voltage applications typically found in transformer primary connections and industrial power distribution. This cable features ethylene propylene rubber (EPR) insulation that provides excellent dielectric properties for voltages up to 35kV when installed in conduit. The construction includes semi-conductive shields that control electrical stress distribution, similar to the grading systems used in high-voltage transformer bushings.
When buried in conduit, MV-90 cable requires careful handling to prevent damage to its layered insulation system during installation. These precautions mirror those taken with underground transformer connections where insulation integrity directly impacts long-term reliability. The cable’s design accommodates thermal expansion and contraction cycles experienced in underground environments, much like underground transformer installations must account for soil movement and temperature variations.
Electrical Properties and Installation Considerations
Voltage Ratings and Ampacity Calculations
Underground conduit wiring accommodates voltage classes from 600V for branch circuits up to 35kV for primary transformer connections. These voltage capabilities align with the input and output ranges of various power and distribution transformers throughout electrical systems. Ampacity calculations for buried conduit wiring must consider soil thermal resistivity and conduit fill percentages, similar to how transformer ratings account for installation environment factors affecting heat dissipation.
Current carrying capacity decreases when multiple current-carrying conductors share the same underground conduit due to restricted heat dissipation. These derating requirements parallel the thermal considerations applied to transformer banks where heat buildup from adjacent units affects overall performance. Proper wire sizing ensures safe operation within these constraints while efficiently delivering power from source transformers to connected loads.
Conduit Material Selection and Burial Depth
Rigid metal conduit (RMC) and PVC conduit are both commonly used for underground wiring installations near transformers. These material choices involve trade-offs between mechanical protection and corrosion resistance that resemble the enclosure selection process for outdoor transformers. PVC conduit offers excellent corrosion resistance for most soil conditions while RMC provides superior physical protection in high-traffic areas or rocky soils.
Burial depth requirements vary based on conduit material and application, typically ranging from 18 inches for residential installations to 36 inches for commercial and industrial sites. These depth specifications parallel the burial considerations for underground transformer installations where adequate cover protects equipment while allowing for proper heat dissipation. All underground conduit runs should include warning tape above the installation to prevent accidental damage during future excavation work.
Installation Best Practices
Proper Pulling Techniques and Conduit Preparation
Successful underground conduit installations begin with careful conduit preparation to prevent wire damage during pulling operations. These precautions resemble the meticulous handling procedures for transformer connections where insulation integrity is critical. Conduit interiors must be clean and free of burrs, with pulling lubricants applied to reduce friction during wire installation, particularly important for long runs between transformers and distribution equipment.
Pulling tension must be monitored to avoid exceeding the wire manufacturer’s specifications, similar to torque control during transformer bushing installations. Swivel pulling eyes distribute force evenly across all conductors, preventing individual wires from bearing excessive stress during installation in congested areas near transformer pads or vaults.
Sealing and Protection Methods
Proper sealing of underground conduit entries prevents moisture migration into electrical equipment and transformer enclosures. These sealing techniques resemble the waterproofing methods used in underground transformer installations where moisture protection is essential for reliable operation. Expansion fittings accommodate thermal movement at conduit entry points, similar to provisions made for transformer connections that experience temperature-related dimensional changes.
All above-ground conduit terminations require physical protection and proper support to prevent damage from environmental factors or human activity. These protective measures parallel the security features incorporated into above-ground transformer installations where exposed components need safeguarding. Proper labeling of underground conduit runs simplifies future maintenance and troubleshooting, much like comprehensive transformer nameplates aid in equipment servicing.
Maintenance and Long-Term Performance
Preventative Inspection Strategies
While underground conduit wiring requires minimal maintenance, periodic checks of accessible portions help identify potential issues before they cause system failures. These inspection protocols parallel the maintenance schedules for underground transformer installations where early problem detection prevents major outages. Infrared scans of above-ground terminations can reveal developing hot spots caused by loose connections or corrosion, similar to thermal monitoring practices for transformer terminals.
Documenting precise conduit routes facilitates future excavation work and prevents accidental damage during landscaping or construction projects. These record-keeping practices resemble the as-built documentation requirements for underground transformer installations where accurate location information is crucial for maintenance and repairs.
Wire Replacement and System Upgrades
Damaged wires in underground conduit typically require complete replacement due to the difficulty of making reliable splices in buried conditions. These replacement standards mirror the conductor replacement protocols for transformer windings where partial repairs might compromise long-term reliability. When upgrading underground electrical systems, new conduit installations should include spare conduits or oversized pipes to accommodate future expansions, similar to the capacity margins built into transformer specifications.
Proper wire pulling techniques must be employed during replacement operations to avoid damaging adjacent conductors or the conduit itself. These careful installation methods resemble the precision required when replacing transformer connections where improper handling can lead to premature failure. All underground repairs should be performed by qualified personnel familiar with the unique challenges of buried electrical systems.
Future Developments in Underground Conduit Technology
Smart Conduit Monitoring Systems
Emerging technologies may integrate condition monitoring capabilities directly into underground conduit installations. These innovations parallel the diagnostic systems being incorporated into modern transformer designs. Future conduit systems could include embedded sensors that detect insulation degradation or water intrusion before failures occur, significantly improving system reliability through predictive maintenance capabilities.
Advanced conduit materials with indicators for excessive heat or mechanical stress represent another promising development direction. These smart materials would function similarly to monitoring systems used in critical transformer installations where early warning of developing problems is valuable. Such technological advancements could help prevent underground electrical failures by providing actionable data before service interruptions occur.
Sustainable Installation Materials
New underground conduit systems are incorporating recycled materials and environmentally friendly components. These sustainable developments align with green initiatives in transformer manufacturing where lifecycle environmental impact is increasingly considered. Research into biodegradable pulling lubricants and low-impact installation methods may further reduce the ecological footprint of underground wiring projects while maintaining or improving current performance standards.
Improved recycling processes for retired underground wiring could enhance recovery rates of valuable metals while properly managing insulation materials. These end-of-life solutions resemble the comprehensive recycling programs established for transformers where material recovery helps offset disposal costs and environmental impacts. Sustainable practices will become increasingly important for all underground electrical infrastructure as environmental regulations continue evolving worldwide.
Conclusion
Properly selected and installed underground conduit wiring forms an essential component of reliable electrical distribution systems, creating protected pathways for power delivery in outdoor and below-grade applications. The technology’s design principles share fundamental engineering considerations with transformer installations where environmental protection and long-term performance are equally vital. As electrical infrastructure continues evolving, underground conduit remains a trusted solution for creating durable connections that withstand harsh conditions while delivering power efficiently.
The ongoing development of underground wiring methods and materials demonstrates the electrical industry’s commitment to improving system performance while meeting increasingly stringent installation requirements. These advancements parallel the continuous innovations seen in transformer design where new technologies regularly enhance reliability and efficiency. Proper selection and professional installation of underground conduit wiring ensures electrical systems will provide decades of trouble-free operation that matches the quality expected from modern transformer equipment.
Looking ahead, underground conduit technology will likely incorporate advanced materials and monitoring capabilities while maintaining the core characteristics that have made it an industry standard. These future developments will mirror the technological progress in transformer engineering where traditional electrical principles combine with smart monitoring systems. By thoroughly understanding underground conduit wiring options and applications, electrical professionals can design and install systems that provide exceptional service life while supporting the evolving power distribution needs of modern infrastructure.
