Non-metallic (NM) wire represents a common electrical cable type primarily used in residential and commercial building wiring applications. As an electrical engineer specializing in power distribution systems, I recognize NM cable’s role as the modern successor to early knob-and-tube wiring methods, offering improved safety and installation efficiency. These cables share important functional relationships with transformer systems that power the buildings where NM wiring distributes electricity to outlets, lighting, and appliances.
The construction of NM cable bundles insulated conductors within an outer non-metallic jacket, creating a complete wiring solution that doesn’t require metal conduit for protection. This design approach differs from transformer winding configurations but serves the complementary purpose of safely delivering power from distribution transformers to end-use devices. NM wiring’s plastic-based materials provide electrical isolation and physical protection while allowing flexibility during installation, much like the insulation systems in dry-type transformers balance protection with thermal performance.
Key Characteristics of Non-Metallic Wire

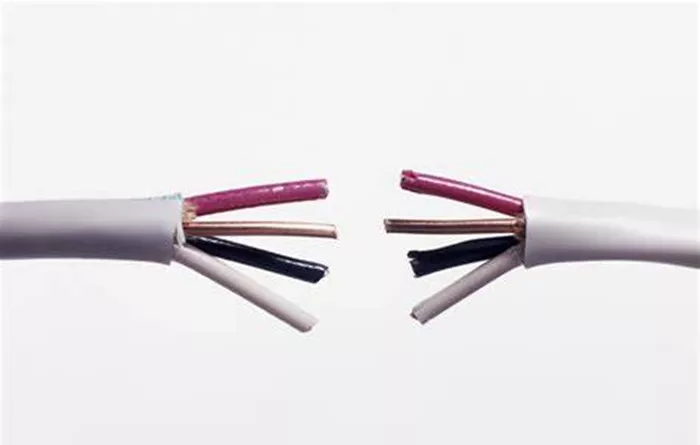

NM cable typically contains two or more insulated current-carrying conductors plus a bare ground wire within a moisture-resistant outer sheath. These conductor arrangements resemble the multiple winding taps found in distribution transformers that serve various voltage requirements in buildings. The cable’s PVC-based materials maintain flexibility across typical indoor temperature ranges while providing adequate protection against abrasion and casual contact.
Standard NM-B cable carries a 90°C temperature rating for conductors with a 60°C rating for the overall assembly under continuous load conditions. These thermal specifications parallel the temperature class ratings used for transformer insulation systems where different components may have varying thermal limits. Proper NM cable sizing ensures safe operation within these temperature constraints while delivering power from transformer secondaries to branch circuits.
Composition and Construction Details
Conductor Materials and Configurations
NM cables primarily use copper conductors due to their superior conductivity and compatibility with standard termination methods. This material choice mirrors the copper windings found in most distribution transformers where energy efficiency and reliable connections are paramount. The conductors follow American Wire Gauge (AWG) sizing standards, with 14 AWG and 12 AWG being most common for residential branch circuits fed by typical 240/120V transformer secondaries.
The cable’s ground conductor provides essential fault current protection, similar to the grounding systems incorporated in transformer installations for equipment and personnel safety. Modern NM cables often include this bare copper ground wire running parallel to the insulated conductors, completing the circuit protection scheme required by electrical codes. This integrated ground path ensures low-impedance fault current return to the source transformer.
Insulation and Sheathing Materials
Individual conductors within NM cable feature color-coded thermoplastic insulation that identifies their function in the circuit. These insulation coloring conventions parallel the phase identification markings found on transformer terminals that help maintain proper system phasing. The outer sheathing consists of a durable PVC compound that resists moisture, flame spread, and physical damage during and after installation.
The composite construction creates a unified cable assembly that simplifies installation compared to separate conductors in conduit. This design efficiency resembles the space-saving benefits of modern compact transformer designs that integrate multiple features into single units. The materials maintain electrical properties in typical indoor environments while being lightweight enough for efficient handling during building wiring projects.
Electrical Properties and Performance Standards
Voltage Ratings and Current Capacity
Standard NM cable carries a 600-volt rating, making it suitable for most residential and commercial power distribution applications. These voltage requirements align perfectly with common transformer secondary voltages that power building electrical systems. The cable’s ampacity follows NEC Table 310.16 for copper conductors, with adjustments made for ambient temperature and cable bundling conditions.
Current carrying capacity decreases when multiple NM cables are bundled together due to reduced heat dissipation. These derating factors parallel the thermal considerations applied to transformer installations where heat buildup affects performance. Proper conductor sizing ensures NM cable can handle anticipated loads without exceeding temperature limits that could degrade insulation over time.
Compliance with Safety Standards
NM wire must meet UL Standard 719 and NFPA 70 (National Electrical Code) requirements for building wiring applications. These certification standards ensure consistent quality and performance across manufacturers, similar to the standards governing transformer production. Recognized testing laboratories evaluate NM cable for flame resistance, insulation integrity, and mechanical durability before granting approval for use in construction projects.
Markings on the cable jacket identify key specifications including wire size, temperature rating, and voltage class. These identification methods resemble the nameplate information found on transformers that communicates essential performance characteristics. Proper labeling helps ensure correct cable selection for specific applications and simplifies compliance verification during electrical inspections.
Installation Methods and Best Practices
Residential Wiring Techniques
NM cable installation begins with careful planning of circuit routes to minimize cable lengths and voltage drop. These design considerations parallel the voltage regulation planning for transformer installations where conductor length affects performance. The cable typically runs through framing members with protective metal plates at potential puncture points, similar to the mechanical protection used for transformer secondary connections in buildings.
Proper support at regular intervals prevents excessive sagging that could strain connections over time. These installation requirements resemble the secure mounting techniques used for transformer installations where mechanical stability is essential. NM cable should be secured within 12 inches of boxes and at intervals not exceeding 4.5 feet for most residential applications.
Commercial Building Applications
In commercial settings, NM cable often routes through dedicated wireways or above suspended ceilings with proper support. These installation methods parallel the careful routing of transformer secondary conductors in commercial facilities where appearance and accessibility matter. Fire-rated assemblies may require special penetration sealing methods where cables pass through walls or floors, similar to firestop requirements for transformer vault penetrations.
Transition points between NM cable and other wiring methods require proper junction boxes and connectors. These interface details resemble the connection compartments used in transformer installations where different wiring systems meet. Proper cable bending radii must be maintained to prevent insulation damage, much like the careful bending requirements for transformer leads during installation.
Comparison with Alternative Wiring Methods
NM Cable vs Metallic Sheathed Cable
Armored cable (AC) and metal-clad (MC) cable provide additional mechanical protection through their metallic sheaths. These alternative wiring methods resemble the armored construction sometimes used for transformer secondary conductors in harsh environments. While offering superior physical protection, these metallic cables are generally heavier, more expensive, and require grounding of their metal sheaths.
NM cable’s lighter weight and lower cost make it preferable for typical residential applications where extreme physical protection isn’t required. This economic advantage parallels the cost considerations when choosing between different transformer types for various applications. The plastic sheathing also eliminates potential grounding issues that can occur with damaged metallic cable armor.
NM Cable vs Conduit Wiring Systems
Conduit wiring allows easier future circuit modifications but requires more labor and materials during initial installation. These trade-offs resemble the decisions faced when choosing between different transformer connection methods where flexibility balances with installation complexity. NM cable provides a practical compromise for permanent installations where circuit changes are unlikely.
The integrated design of NM cable eliminates the need for field assembly of conduit and separate conductors. This installation efficiency mirrors the advantages of factory-assembled transformer equipment versus field-constructed alternatives. While conduit may be required in certain commercial or industrial applications, NM cable remains the standard choice for most residential wiring projects.
Maintenance and Troubleshooting Considerations
Preventative Inspection Practices
Periodic visual inspections of accessible NM cable runs help identify potential problems before they cause system failures. These maintenance procedures parallel the inspection protocols for transformer connections where early detection prevents major repairs. Look for insulation damage, rodent chewing, or overheating signs at termination points that could indicate developing issues.
Infrared scans of electrical panels and visible connections can reveal hot spots caused by loose NM cable terminations. These diagnostic techniques resemble the thermal imaging used to assess transformer performance where temperature variations indicate potential problems. Proactive identification of connection issues allows for timely repairs before damage spreads to cable insulation.
Repair and Replacement Guidelines
Damaged NM cable sections require complete replacement when insulation integrity is compromised. These repair standards mirror the conductor replacement protocols for transformer windings where partial repairs could create reliability risks. Junction boxes must be installed at all splice points, with proper connectors that maintain the cable’s original temperature and voltage ratings.
When upgrading electrical systems, new NM cable installations should account for potential future load increases. These planning considerations resemble the capacity margins built into transformer specifications that allow for some load growth over time. Oversizing conductors slightly during initial installation can prevent costly rewiring projects when adding circuits or appliances later.
Future Developments in Building Wiring Technology
Smart NM Cable Concepts
Emerging technologies may integrate circuit monitoring capabilities directly into NM cable designs. These innovations parallel the condition monitoring systems being incorporated into modern transformers. Future NM cables could include embedded sensors that detect insulation degradation or overheating before failures occur, improving home electrical safety.
Color-changing insulation materials that indicate excessive heat exposure represent another potential development. These smart materials would function similarly to temperature indicators used on transformer windings where thermal stress monitoring is critical. Such advancements could help prevent electrical fires by providing visible warnings of developing problems in branch circuits.
Sustainable Material Innovations
New NM cable formulations are incorporating recycled copper and eco-friendly insulation materials. These sustainable developments align with green initiatives in transformer manufacturing where material choices affect environmental impact. Bio-based plasticizers and halogen-free flame retardants may reduce the ecological footprint of future building wire installations.
Improved recycling processes for NM cable could recover valuable copper while properly disposing of insulation materials. These end-of-life solutions resemble the recycling programs established for retired transformers where material recovery offsets disposal costs. Sustainable lifecycle management will become increasingly important for electrical infrastructure as environmental regulations tighten.
Conclusion
Non-metallic cable has earned its place as the backbone of residential and light commercial electrical installations through its balanced combination of safety, performance, and cost-effectiveness. The technology’s design principles share important similarities with transformer engineering where material selection and construction quality directly impact system reliability. As electrical codes and building practices continue evolving, NM wiring remains a trusted solution for power distribution from service transformers to end-use devices.
The ongoing development of NM cable variants and related wiring methods demonstrates the electrical industry’s commitment to improving safety while meeting changing installation requirements. These advancements parallel the innovations seen in transformer design where new materials and construction techniques continue to enhance performance. Proper selection and installation of NM cable ensures building electrical systems will deliver safe, reliable power distribution that matches the quality expected from modern transformer equipment.
Looking ahead, NM wiring will likely incorporate new materials and smart features while maintaining the core characteristics that have made it an industry standard. These future developments will mirror the technological progress in transformer engineering where traditional designs integrate advanced monitoring capabilities. By understanding NM cable’s properties and applications, electrical professionals can design and install systems that provide decades of trouble-free service while supporting evolving power distribution needs in homes and businesses.
