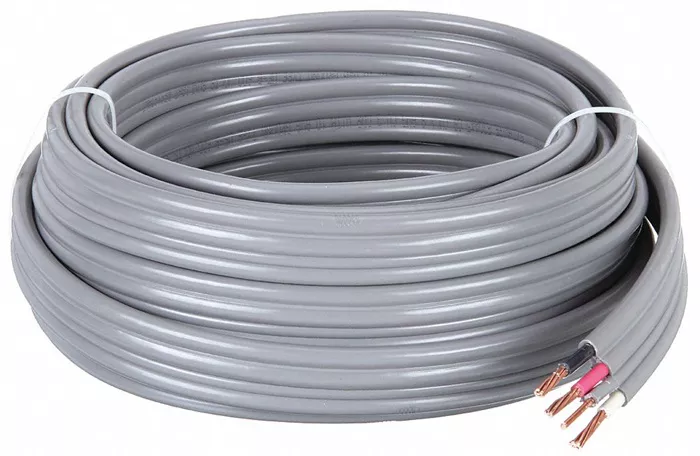

What Is Type UF-B Wire?

by jingji47

Type UF-B wire represents a specialized underground feeder cable designed for direct burial applications in residential and commercial electrical systems. As an electrical engineer with transformer expertise, I recognize UF-B’s critical role in safely delivering power from distribution transformers to remote structures and outdoor equipment. This durable cable combines moisture-resistant insulation with a rugged outer jacket that withstands direct soil contact while maintaining reliable electrical performance.

The construction of UF-B cable features insulated conductors encased in a solid thermoplastic sheath that provides comprehensive environmental protection. This design approach differs from transformer winding configurations but serves the complementary purpose of extending power distribution beyond the transformer secondary connections. UF-B wiring’s unique material composition allows it to function in wet locations and underground environments where conventional NM cable would quickly degrade.

Advertisements

​​Key Characteristics of UF-B Wire​​

UF-B cable contains color-coded insulated conductors with an additional bare copper ground wire, all bonded within a sunlight-resistant outer jacket. These conductor arrangements mirror the multiple voltage outputs available from distribution transformer secondaries that serve various outdoor circuit requirements. The cable’s PVC-based insulation system maintains flexibility in cold weather while resisting moisture absorption and soil chemicals that could compromise performance.

Advertisements

Temperature ratings for UF-B conductors reach 90°C, with a 60°C rating for the complete cable assembly under continuous load conditions. These thermal specifications align with the temperature class ratings used for transformer connections where different components may have varying thermal limits. Proper UF-B cable sizing ensures safe operation within these constraints while efficiently delivering power from transformer secondaries to detached structures, landscape lighting, and other outdoor applications.

Advertisements

Composition and Construction Details

​​Conductor Materials and Configuration​​

UF-B cables exclusively use copper conductors due to their superior conductivity and corrosion resistance in underground environments. This material choice parallels the copper windings found in most distribution transformers where long-term reliability is essential. The conductors follow standardized American Wire Gauge (AWG) sizing, with 14 AWG through 4/0 AWG available to match various load requirements and voltage drop considerations.

Advertisements

The integrated bare copper ground conductor provides critical fault current protection back to the source transformer, similar to the grounding systems incorporated in transformer installations for equipment and personnel safety. This ground wire runs parallel to the insulated conductors within the cable assembly, ensuring low-impedance fault current return paths that enable protective devices to operate effectively during ground fault conditions.

​​Insulation and Jacket Materials​​

Individual conductors within UF-B cable feature color-coded thermoplastic insulation that identifies their function in the circuit while providing robust moisture resistance. These insulation coloring conventions parallel the phase identification markings found on transformer terminals that help maintain proper system phasing during installation. The outer sheathing consists of a specially formulated PVC compound that resists moisture penetration, soil chemicals, and ultraviolet radiation when exposed.

The composite construction creates a unified cable assembly that withstands direct burial while preventing water migration along the conductor paths. This design efficiency resembles the moisture-resistant features of pad-mounted transformers that must endure similar environmental challenges. The materials maintain stable electrical properties in wet conditions while resisting degradation from common soil microorganisms and temperature fluctuations.

Electrical Properties and Performance Standards

​​Voltage Ratings and Current Capacity​​

Standard UF-B cable carries a 600-volt rating, making it suitable for nearly all residential and light commercial underground power distribution applications. These voltage requirements align perfectly with common transformer secondary voltages that power outdoor electrical systems throughout North America. The cable’s ampacity follows NEC Table 310.16 for copper conductors, with necessary adjustments made for underground burial depth and ambient earth temperature conditions.

Current carrying capacity decreases when multiple UF-B cables are installed together in underground trenches due to reduced heat dissipation capabilities. These derating factors parallel the thermal considerations applied to transformer installations where heat buildup directly affects performance and longevity. Proper conductor sizing ensures UF-B cable can handle anticipated loads without exceeding temperature limits that could prematurely degrade insulation materials over years of underground service.

​​Compliance with Safety Standards​​

UF-B wire must meet UL Standard 493 and NFPA 70 (National Electrical Code) requirements for underground feeder and branch circuit cable applications. These rigorous certification standards ensure consistent quality and performance across manufacturers, similar to the standards governing transformer production and installation. Nationally recognized testing laboratories thoroughly evaluate UF-B cable for moisture resistance, crush resistance, and long-term durability before granting approval for direct burial use.

Permanent markings on the cable jacket clearly identify all key specifications including wire size, temperature rating, voltage class, and compliance certifications. These identification methods resemble the comprehensive nameplate information found on transformers that communicates essential performance characteristics to installers and inspectors. Proper labeling helps ensure correct cable selection for specific applications while simplifying compliance verification during electrical inspections and system maintenance.

Installation Methods and Best Practices

​​Direct Burial Techniques​​

UF-B cable installation begins with careful trench planning to avoid underground utilities and optimize cable routing between power sources and loads. These design considerations parallel the careful placement planning for underground distribution transformers where accessibility and protection must be balanced. The cable typically requires burial at depths ranging from 12 to 24 inches depending on application, with warning tape placed above the cable to alert future excavators.

Proper backfilling techniques using screened earth or sand protect the cable from sharp rocks that could damage the outer jacket over time. These protective measures resemble the careful installation practices for underground transformer secondary connections where long-term reliability is paramount. The cable should maintain gentle bending radii during installation to prevent insulation damage, with special care taken at vertical riser points where the cable transitions above ground.

​​Conduit Transition Methods​​

When UF-B cable emerges from underground installations, it often transitions to conduit systems for above-ground protection. These interface details resemble the connection compartments used in transformer installations where different wiring systems must interact safely and reliably. Proper sealing techniques prevent moisture migration into conduit systems, similar to the moisture barriers used in transformer enclosures that protect internal components.

Expansion fittings accommodate thermal cycling at points where UF-B cable enters buildings or equipment enclosures. These installation details parallel the expansion provisions made for transformer bushing connections that experience temperature-related movement. All above-ground portions of UF-B cable must be protected from physical damage using approved raceways or structural guards that maintain the cable’s environmental protection.

Comparison with Alternative Wiring Methods

​​UF-B vs USE Cable​​

Underground service entrance (USE) cable provides higher voltage ratings but lacks the comprehensive insulation system of UF-B wiring. These alternative underground cables resemble the different conductor types used for transformer primary and secondary connections based on voltage requirements. While USE cable can handle higher voltages, UF-B offers superior moisture resistance and flexibility for typical residential underground feeder applications.

The integrated ground conductor in UF-B cable provides a safety advantage over older USE designs that may require separate grounding conductors. This safety feature parallels the improved grounding systems in modern transformer installations that enhance fault protection. UF-B’s sunlight-resistant jacket also makes it suitable for exposed outdoor runs where USE cable would require additional protection.

​​UF-B vs PVC Conduit Systems​​

PVC conduit with individual THWN conductors allows easier future circuit modifications but requires more installation labor and materials. These trade-offs resemble the decisions faced when choosing between different transformer connection methods where flexibility must balance with installation complexity. UF-B provides a practical compromise for permanent underground installations where circuit changes are unlikely during the system’s service life.

The unified design of UF-B cable eliminates the need for field assembly of conduit and separate conductors, significantly reducing installation time in direct burial applications. This installation efficiency mirrors the advantages of factory-assembled transformer equipment versus field-constructed alternatives. While conduit may be required in certain commercial or industrial applications, UF-B remains the standard choice for most residential underground wiring projects where cost-effectiveness and adequate protection are primary considerations.

Maintenance and Troubleshooting Considerations

​​Preventative Inspection Practices​​

Periodic inspections of exposed UF-B cable sections help identify potential problems before they escalate into serious system failures. These maintenance procedures parallel the inspection protocols for transformer connections where early detection prevents catastrophic outages. Qualified electricians should examine above-ground cable jackets for weathering damage and check underground junction points for signs of moisture intrusion during routine maintenance cycles.

Infrared scans of termination points can reveal developing hot spots caused by loose UF-B cable connections or corrosion. These diagnostic techniques resemble the thermal imaging surveys used to assess transformer performance where temperature variations often indicate underlying problems. Proactive identification of connection issues allows for timely repairs before damage spreads to cable insulation or connected equipment.

​​Repair and Replacement Guidelines​​

Damaged UF-B cable sections require complete replacement when insulation integrity becomes compromised, as field repairs cannot restore the original safety margins for underground use. These replacement standards mirror the conductor replacement protocols for transformer windings where partial repairs might create hidden reliability risks. All underground splices must use listed direct burial connectors installed in accessible junction boxes that maintain the cable’s environmental protection.

When upgrading electrical systems or adding new underground circuits, installers should consider potential future load increases when selecting UF-B cable sizes. These planning considerations resemble the capacity margins built into transformer specifications that allow for reasonable load growth over time. Slight oversizing of conductors during initial installation often prevents costly excavation projects when expanding outdoor electrical systems in subsequent years.

Future Developments in Underground Wiring Technology

​​Smart UF-B Cable Concepts​​

Emerging technologies may integrate fault detection capabilities directly into UF-B cable designs through innovative material science and manufacturing techniques. These potential innovations parallel the condition monitoring systems being incorporated into modern transformer designs. Future UF-B cables could include embedded sensors that detect insulation degradation or ground faults before failures occur, significantly improving underground electrical system reliability through early warning capabilities.

Advanced jacket materials with color-changing properties that indicate excessive heat exposure or moisture intrusion represent another promising development direction. These smart materials would function similarly to temperature indicators used on transformer windings where thermal stress monitoring is critical for preventing insulation breakdown. Such technological advancements could help prevent underground electrical failures by providing visible warnings of developing problems before they reach critical levels.

​​Sustainable Material Innovations​​

New UF-B cable formulations are beginning to incorporate recycled copper conductors and eco-friendly insulation compounds that reduce environmental impact. These sustainable developments align with green initiatives in transformer manufacturing where material choices increasingly consider lifecycle environmental factors. Research into bio-based plasticizers and halogen-free flame retardants may further reduce the ecological footprint of future underground wiring installations while maintaining or improving current safety standards.

Improved recycling processes for UF-B cable could enhance recovery rates of valuable copper while properly managing insulation material disposal after service life. These end-of-life solutions resemble the comprehensive recycling programs established for retired transformers where material recovery helps offset disposal costs and environmental impacts. Sustainable lifecycle management will become increasingly important for all underground electrical infrastructure as environmental regulations continue evolving worldwide.

Conclusion

Type UF-B cable has established itself as the fundamental solution for safe and reliable underground power distribution in residential and light commercial applications. The technology’s design principles share important engineering considerations with transformer systems where material selection, environmental resistance, and installation quality directly impact long-term performance. As electrical codes and construction practices continue evolving, UF-B wiring remains a trusted method for extending power distribution from service transformers to remote structures and outdoor equipment.

The ongoing development of UF-B cable variants demonstrates the electrical industry’s commitment to improving underground system reliability while meeting changing installation requirements and environmental standards. These advancements parallel the continuous innovations seen in transformer design where new materials and construction techniques regularly enhance performance in challenging environments. Proper selection and professional installation of UF-B cable ensures underground electrical systems will deliver decades of trouble-free operation that matches the reliability expected from modern transformer equipment.

Looking ahead, UF-B wiring will likely incorporate new materials and intelligent features while maintaining the core characteristics that have made it an industry standard for underground applications. These future developments will mirror the technological progress in transformer engineering where traditional electrical principles combine with advanced monitoring and protection capabilities. By thoroughly understanding UF-B cable’s properties and applications, electrical professionals can design and install systems that provide exceptional service life while supporting the evolving power distribution needs of modern buildings and outdoor facilities.
