Ring floodlight cameras combine advanced security features with powerful illumination, creating unique electrical demands that must be properly addressed through appropriate wire selection. As an electrical engineer with transformer expertise, I recognize how these devices represent a modern evolution of traditional outdoor lighting, requiring careful consideration of both power delivery and data transmission. The wiring for a Ring floodlight cam must accommodate not just the lighting load but also the camera’s operational requirements and smart features, similar to how transformer systems must adapt to power diverse loads with varying characteristics.
Transformer technology relates to floodlight cam wiring because both involve stepping down and distributing power efficiently while maintaining system reliability. This relationship becomes particularly important when considering how proper wire gauge selection affects voltage drop and power quality at the device. While transformers efficiently convert high voltage to usable levels, the wiring must deliver this power without significant losses that could impact camera performance or light output.
Key Electrical Characteristics of Ring Floodlight Cams
Floodlight cams typically operate on standard household voltage but require stable power delivery for optimal performance. These power requirements resemble those for transformer-fed equipment where voltage stability affects operation. Most Ring floodlight cams are rated for 120V operation with power consumption ranging from 10W to 30W depending on model and features.
The wiring must account for both continuous operation and peak demands when the camera activates or floodlights turn on. These load characteristics parallel those considered in transformer sizing where both steady-state and momentary loads must be accommodated. Proper wire sizing prevents voltage fluctuations that could cause camera reboots or reduced light output during operation.
Recommended Wire Gauge for Ring Floodlight Cam Installation
Standard 14 AWG Copper Wire
For most residential installations with run lengths under 50 feet, 14 AWG copper wire provides adequate capacity for Ring floodlight cams. This wire size can safely handle the current requirements while maintaining acceptable voltage drop characteristics. The selection criteria mirror those used for transformer secondary conductors where voltage regulation is important.
14 AWG NM-B or UF-B cable works well for both indoor and outdoor installations when properly protected. These wiring methods resemble the approaches used for transformer-fed outdoor lighting where environmental protection is crucial. The copper conductors ensure reliable connections and long-term performance in various weather conditions.
12 AWG Wire for Longer Runs
For installations exceeding 50 feet or in areas with extreme temperature variations, upgrading to 12 AWG wire helps maintain proper voltage at the floodlight cam. This larger size reduces voltage drop, similar to how oversized transformer secondaries improve voltage regulation. The additional conductor mass provides better performance in cold weather when resistance increases.
12 AWG wiring is particularly recommended for installations where the floodlight cam shares a circuit with other devices. These shared circuit conditions parallel those considered in transformer loading calculations where multiple loads affect overall performance. The larger gauge helps compensate for additional voltage drop caused by other connected equipment.
Electrical Considerations for Optimal Performance
Voltage Drop Calculations
Proper installation requires calculating expected voltage drop based on wire length and load current. These calculations resemble the voltage regulation analysis performed for transformer secondary circuits. For Ring floodlight cams, voltage drop should ideally be kept below 3% to ensure stable camera operation and consistent light output.
The calculation method involves determining circuit resistance based on wire gauge and length, then applying Ohm’s Law. These electrical principles are the same ones used in transformer design where conductor characteristics directly impact performance. Careful planning prevents issues like camera disconnections or reduced nighttime illumination quality.
Circuit Protection Requirements
Ring floodlight cams should be protected by appropriate circuit breakers matching the wire ampacity. These protection requirements parallel those for transformer secondaries where overcurrent devices must coordinate with conductor ratings. Most installations will use 15-amp breakers with 14 AWG wire or 20-amp breakers with 12 AWG wire.
The protection scheme must account for potential inrush currents when floodlights activate. These momentary load characteristics resemble the starting currents considered in transformer protection schemes. Proper breaker selection prevents nuisance tripping while maintaining safety during fault conditions.
Installation Methods and Best Practices
Outdoor Wiring Protection
All outdoor wiring for floodlight cams requires proper protection from environmental factors. These installation requirements mirror those for transformer-fed outdoor lighting where weatherproofing is essential. Liquid-tight conduit or direct-bury rated cable provides the necessary protection against moisture and physical damage.

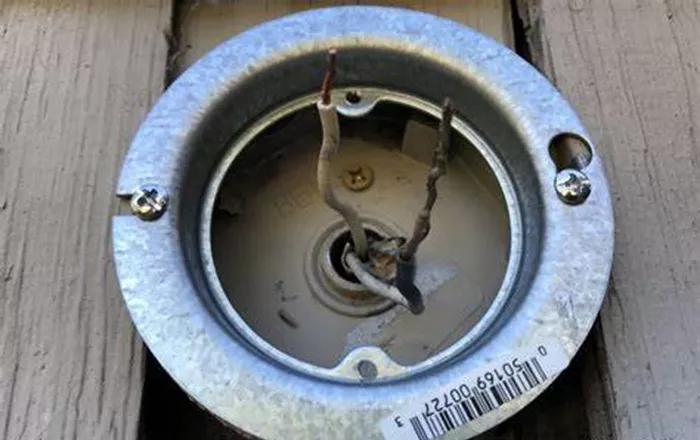

Junction boxes must be rated for wet locations and properly sealed. These enclosure specifications resemble those used for outdoor transformer installations where environmental protection is critical. All connections should be made with approved connectors that maintain the wiring’s weather resistance.
Grounding and Bonding
Proper grounding is essential for safety and optimal floodlight cam performance. These grounding requirements parallel those for transformer installations where effective grounding prevents shock hazards. The equipment grounding conductor must be properly connected to both the device and the circuit’s grounding system.
All metal components in the installation should be bonded to prevent potential differences. These bonding practices resemble those used in transformer installations where equipotential bonding improves safety. A solid ground connection also helps reduce electromagnetic interference that could affect camera performance.
Comparison with Traditional Floodlight Wiring
Smart Device vs Conventional Lighting Loads
Traditional floodlights typically present simpler, more consistent loads compared to smart floodlight cams. These differences parallel those between conventional transformer loads and modern electronic loads that include communication capabilities. The Ring floodlight cam’s additional electronics require cleaner power with less voltage fluctuation.
The wiring must account for the camera’s continuous low-power draw in addition to the lighting load. These combined load characteristics resemble those considered when powering transformer-fed equipment with auxiliary controls. The dual nature of the load makes proper wire sizing more critical than with simple lighting circuits.
Data Transmission Considerations
Unlike conventional floodlights, Ring devices require stable power for data transmission. These communication requirements parallel those for power line communication systems used with some smart transformers. Voltage fluctuations that might be acceptable for simple lighting could disrupt camera connectivity and performance.
The wiring installation must minimize electromagnetic interference that could affect signal quality. These noise reduction considerations resemble those in transformer installations for sensitive electronic equipment. Proper grounding and conductor routing help maintain reliable operation of all smart features.
Future-Proofing Your Installation
Anticipating Higher Power Models
Future Ring floodlight cam models may require more power for enhanced features. These potential upgrades parallel the capacity planning done for transformer installations where future load growth is considered. Installing slightly larger gauge wire than currently needed provides headroom for future device upgrades.
Choosing 12 AWG wire even when 14 AWG would suffice creates a more versatile installation. This conservative approach resembles the design margins often incorporated in transformer sizing where extra capacity improves longevity. The small additional cost provides insurance against future compatibility issues.
Smart Home Integration Potential
The wiring installation should consider potential integration with other smart home devices. These system integration possibilities parallel the interconnected systems used with modern transformer-fed automation. Installing conduit rather than simple cable makes future upgrades easier to implement.
Planning for potential additional conductors or communication cables provides flexibility. These forward-looking installation practices resemble those used in commercial transformer installations where expansion is anticipated. A well-planned installation can adapt to evolving smart home technologies.
Conclusion
Proper wire selection for Ring floodlight cams requires balancing electrical performance with installation safety and longevity. The relationship between wire gauge and device reliability becomes particularly evident when considering how voltage fluctuations affect smart features. Just as transformer design carefully considers conductor sizing, floodlight cam installations must account for both present needs and future possibilities.
The electrical principles governing floodlight cam wiring share fundamental concepts with transformer applications, particularly regarding voltage regulation and power quality. By understanding these principles and following best practices, installers can create robust installations that deliver reliable performance. The careful attention to wire gauge, installation methods, and circuit protection ensures optimal operation of all floodlight cam features while maintaining safety.
As smart home technology continues to evolve, the wiring infrastructure supporting these devices must be both capable and adaptable. This comprehensive approach mirrors the engineering considerations applied to transformer systems where performance and flexibility are equally important. Proper wire selection and installation techniques ultimately determine the reliability and longevity of your Ring floodlight cam investment.
