Direct burial wiring represents a specialized category of electrical cables designed for underground installation without requiring additional conduit protection. As an electrical engineer with transformer expertise, I recognize how these wiring systems complement transformer installations by safely delivering power from outdoor distribution transformers to buildings and equipment. The unique construction of direct burial cables allows them to withstand soil conditions, moisture, and temperature fluctuations that would damage conventional wiring.
These cables share important design considerations with transformer connections where environmental protection and long-term reliability are equally critical. While transformers manage voltage conversion and power distribution, direct burial wiring completes the final connection to end-use equipment in outdoor and underground applications. The materials and construction methods used in direct burial cables reflect years of engineering refinement to address the challenges of underground electrical installations.
Key Characteristics of Direct Burial Wiring
Direct burial cables feature moisture-resistant insulation and rugged outer jackets that protect against soil chemicals and physical damage. These protective qualities resemble the environmental protection built into outdoor transformer designs where weatherproofing is essential for reliable operation. The cables maintain stable electrical properties despite being surrounded by earth, much like underground transformer installations must perform reliably in similar conditions.
Temperature ratings for direct burial wiring typically range from -40°C to 90°C, allowing operation in diverse climates and seasonal conditions. These thermal specifications align with the performance requirements for transformer connections that also experience wide temperature variations. Proper cable sizing ensures safe current carrying capacity while accounting for soil thermal resistivity, similar to how transformer ratings consider installation environment factors.
Types of Direct Burial Rated Wiring
UF-B Underground Feeder Cable

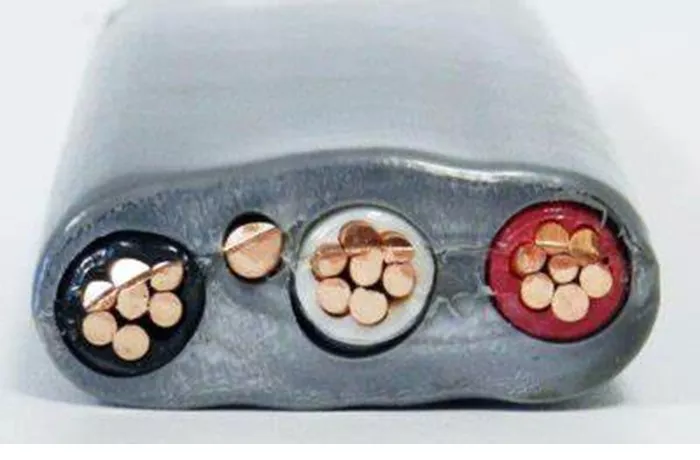

UF-B cable stands as the most common direct burial wiring solution for residential and light commercial applications. This cable type contains insulated conductors and a bare ground wire within a solid thermoplastic sheath that resists moisture and soil contaminants. The construction resembles the moisture protection systems in pad-mounted transformers where reliable performance in wet conditions is equally important.
The cable’s sunlight-resistant jacket allows for above-ground transitions when needed, similar to how transformer connections often transition between underground and aerial configurations. UF-B wiring is available in various conductor sizes to match different load requirements, with installation methods that parallel the careful routing practices used for underground transformer secondary connections.
USE Service Entrance Cable
Underground service entrance (USE) cable provides another direct burial option specifically designed for higher voltage applications. These cables typically connect utility transformers to building service equipment, carrying the full electrical load of a structure. The robust construction withstands higher voltages and greater mechanical stresses, much like the durable conductor systems used in transformer bushings and connections.
USE cables often employ aluminum conductors for cost efficiency in larger sizes, though copper versions are available for enhanced conductivity. This material choice consideration parallels the conductor selection process for transformer windings where performance requirements and economics must be balanced. The cable’s design prioritizes long-term reliability in direct soil contact, similar to underground transformer installations.
Composition and Construction Details
Conductor Materials and Configurations
Direct burial wiring primarily uses copper or aluminum conductors, selected based on application requirements and cost considerations. These material choices mirror those made in transformer design where copper windings offer superior conductivity while aluminum provides economic advantages in larger sizes. The conductors follow standard AWG or kcmil sizing to ensure proper current carrying capacity matches the connected transformer’s output characteristics.
The conductor stranding pattern affects flexibility and installation ease, with more strands allowing tighter bending radii during placement. This flexibility consideration resembles the installation challenges faced when routing transformer secondary connections in constrained spaces. Some direct burial cables incorporate a concentric neutral configuration that provides both current carrying and grounding functions, similar to specialized transformer winding arrangements.
Insulation and Jacket Systems
High-quality insulation materials form the first line of defense against moisture penetration in direct burial applications. These insulation systems must maintain dielectric strength despite prolonged soil contact, much like transformer insulation must withstand years of environmental exposure. Cross-linked polyethylene (XLPE) is commonly used for its excellent moisture resistance and thermal stability properties.
The outer jacket provides mechanical protection against rocks, roots, and other underground hazards. This protective function parallels the rugged enclosures used for outdoor transformers that shield internal components from physical damage. Some direct burial cables incorporate metallic shielding or armor for enhanced protection in challenging installations, similar to armored conductor systems sometimes used in transformer connections.
Electrical Properties and Performance Standards
Voltage Ratings and Current Capacity
Direct burial cables are available with voltage ratings from 600V up to 35kV for different applications. These voltage capabilities align with the output ranges of various distribution transformers that power residential, commercial, and industrial facilities. The cables’ ampacity follows NEC guidelines with adjustments for burial depth and soil conditions, similar to how transformer ratings consider installation environment factors.
Current carrying capacity decreases when multiple direct burial cables are installed in close proximity due to reduced heat dissipation. These derating requirements parallel the thermal considerations applied to transformer banks where heat buildup from adjacent units affects overall performance. Proper cable sizing ensures safe operation within these constraints while delivering power efficiently from source transformers to connected loads.
Compliance with Safety Standards
Direct burial wiring must meet rigorous standards such as UL 854 for USE cables and UL 493 for UF-B types. These certification requirements ensure consistent quality and performance across manufacturers, similar to the standards governing transformer production. Testing includes evaluations for moisture resistance, crush strength, and long-term durability under simulated burial conditions.
Markings on the cable jacket identify key specifications including voltage rating, conductor size, and temperature class. These identification methods resemble the nameplate information found on transformers that communicates essential performance characteristics. Proper labeling helps ensure correct cable selection for specific applications and simplifies compliance verification during electrical inspections.
Installation Methods and Best Practices
Trenching and Burial Techniques
Proper trench preparation forms the foundation for successful direct burial wiring installations. These excavation requirements parallel the careful site preparation needed for underground transformer installations where proper bedding and backfill are equally important. Typical burial depths range from 18 to 36 inches depending on application and local code requirements, with warning tape placed above the cables to alert future excavators.
The trench bottom should be smooth and free of sharp rocks that could damage cable jackets over time. This protective consideration resembles the careful handling procedures for transformer bushings and connections during installation. Proper backfilling techniques using screened earth or sand help protect the cables while allowing for adequate heat dissipation, similar to thermal management considerations for underground transformer installations.
Transition and Termination Methods
Where direct burial cables emerge from the ground, they require proper protection against physical damage and environmental exposure. These transition details mirror the careful interface designs used where underground transformer connections meet above-grade equipment. Rigid conduit or other approved protection methods safeguard the cables during the vulnerable above-ground transition zone.
Termination points must use listed connectors and proper sealing techniques to prevent moisture ingress. These connection requirements parallel the meticulous termination practices used in transformer installations where reliable connections are critical. Expansion fittings accommodate thermal cycling at transition points, similar to provisions made for transformer connections that experience temperature-related movement.
Comparison with Alternative Wiring Methods
Direct Burial vs Conduit Systems
Conduit installations allow easier future modifications but require more materials and labor during initial installation. These trade-offs resemble the decisions faced when choosing between different transformer connection methods where flexibility must balance with installation complexity. Direct burial wiring provides a cost-effective solution for permanent installations where circuit changes are unlikely during the system’s service life.
The integrated design of direct burial cables eliminates the need for field assembly of conduit and separate conductors. This installation efficiency mirrors the advantages of factory-assembled transformer equipment versus field-constructed alternatives. While conduit may be required in certain commercial or industrial applications, direct burial wiring remains the standard choice for most residential underground installations where cost-effectiveness and adequate protection are primary considerations.
Direct Burial vs Aerial Wiring
Aerial wiring methods use different cable types designed for overhead installation between poles or structures. These alternative approaches resemble the different deployment options available for transformers that can be pole-mounted, pad-mounted, or installed in vaults. Direct burial wiring offers superior protection against weather and accidental damage compared to aerial methods, though it requires more extensive excavation work during installation.
The hidden nature of direct burial wiring provides aesthetic advantages in many settings, similar to how underground transformer installations maintain cleaner sight lines than pole-mounted units. Aerial wiring may be preferable in areas with rocky soil or high water tables where burial would be impractical, just as certain environments favor specific transformer mounting configurations based on local conditions.
Maintenance and Troubleshooting Considerations
Preventative Inspection Practices
While direct burial wiring requires minimal maintenance, periodic checks of accessible portions help identify potential issues. These inspection protocols parallel the maintenance schedules for underground transformer installations where early problem detection prevents major failures. Infrared scans of above-ground terminations can reveal developing hot spots caused by loose connections or corrosion.
Soil settling monitoring around buried cables helps detect conditions that might stress the wiring over time. These observational practices resemble the ground movement monitoring sometimes performed around underground transformer installations. Documenting cable routes precisely facilitates future excavation work and prevents accidental damage during landscaping or construction projects.
Repair and Replacement Guidelines
Damaged direct burial cable sections typically require complete replacement due to the difficulty of making reliable underground splices. These replacement standards mirror the conductor replacement protocols for transformer windings where partial repairs might compromise long-term reliability. Excavation for repairs must follow proper safety procedures to avoid damaging adjacent utilities, similar to precautions taken during transformer maintenance.
When upgrading electrical systems, new direct burial installations should account for potential future load increases. These planning considerations resemble the capacity margins built into transformer specifications that allow for reasonable load growth over time. Oversizing conductors slightly during initial installation can prevent costly replacement projects when expanding electrical systems in subsequent years.
Future Developments in Direct Burial Technology
Smart Direct Burial Cable Concepts
Emerging technologies may integrate monitoring capabilities directly into direct burial cable designs. These innovations parallel the condition monitoring systems being incorporated into modern transformer designs. Future cables could include embedded sensors that detect insulation degradation or mechanical stress before failures occur, significantly improving underground system reliability through predictive maintenance capabilities.
Advanced jacket materials with indicators for excessive heat or moisture exposure represent another promising development direction. These smart materials would function similarly to temperature indicators used on transformer windings where thermal stress monitoring is critical. Such technological advancements could help prevent underground electrical failures by providing early warnings of developing problems before service interruptions occur.
Sustainable Material Innovations
New direct burial cable formulations are incorporating recycled conductor materials and eco-friendly insulation compounds. These sustainable developments align with green initiatives in transformer manufacturing where environmental considerations increasingly influence material choices. Research into biodegradable marking tapes and low-impact installation methods may further reduce the ecological footprint of underground wiring projects.
Improved recycling processes for retired direct burial cables could enhance recovery rates of valuable metals while properly managing insulation materials. These end-of-life solutions resemble the comprehensive recycling programs established for transformers where material recovery helps offset disposal costs. Sustainable lifecycle management will become increasingly important for all underground electrical infrastructure as environmental regulations continue evolving.
Conclusion
Direct burial rated wiring serves as a critical component in modern electrical systems, safely delivering power from distribution transformers to buildings and equipment through underground pathways. The technology’s design principles share important engineering considerations with transformer installations where environmental protection and long-term reliability are equally vital. As electrical infrastructure continues evolving, direct burial wiring remains a trusted solution for creating durable, efficient connections in diverse installation environments.
The ongoing development of direct burial cable types and installation methods demonstrates the electrical industry’s commitment to improving underground system performance while meeting changing code requirements and environmental standards. These advancements parallel the continuous innovations seen in transformer design where new materials and construction techniques regularly enhance reliability and efficiency. Proper selection and professional installation of direct burial wiring ensures underground electrical systems will deliver decades of trouble-free operation that matches the quality expected from modern transformer equipment.
Looking ahead, direct burial technology will likely incorporate new materials and intelligent features while maintaining the core characteristics that have made it an industry standard for underground applications. These future developments will mirror the technological progress in transformer engineering where traditional electrical principles combine with advanced monitoring and protection capabilities. By thoroughly understanding direct burial wiring’s properties and applications, electrical professionals can design and install systems that provide exceptional service life while supporting the evolving power distribution needs of modern communities.
