Household wiring systems form the critical infrastructure that safely delivers electricity from the utility transformer to every corner of a home. As an electrical engineer specializing in transformers, I recognize how residential wiring must properly interface with the distribution transformer that steps down high voltage electricity to the 120/240V used in homes. The entire electrical network begins at the service entrance where power enters from the utility company’s transformer and branches out through carefully designed circuits to serve all electrical needs throughout the residence.
Transformer technology directly influences home wiring requirements because the electrical system operates at the secondary voltage provided by the distribution transformer. This relationship becomes particularly important when considering how proper wire sizing affects voltage regulation and power quality at various points in the home. While transformers efficiently convert distribution voltages to usable household levels, the home wiring must distribute this power with minimal losses while maintaining strict safety standards.
Essential Characteristics of Household Wiring
Residential electrical wires must balance current carrying capacity with physical flexibility to allow installation through walls, ceilings, and tight spaces. These requirements resemble those for transformer secondary wiring where conductors must handle load currents while being routed through confined areas. Modern home wiring primarily uses copper conductors with thermoplastic insulation that remains flexible at room temperature while providing reliable protection against electrical faults.
The insulation system must prevent conductor contact while withstanding the thermal environment inside walls and conduits. These durability requirements parallel those for transformer windings where insulation must maintain integrity despite temperature fluctuations. Proper wire sizing prevents excessive voltage drop that could affect appliance performance, similar to how transformer secondary conductors are sized to maintain proper voltage regulation under load.

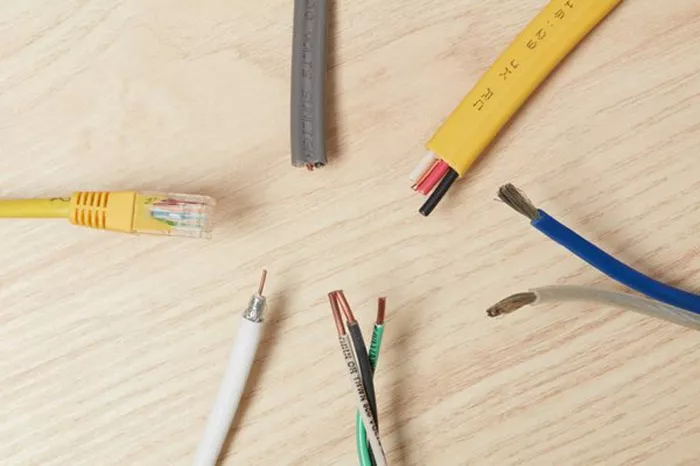

Common Types of Electrical Wire for Residential Use
Non-Metallic Sheathed Cable (NM-B)
NM-B cable, commonly called Romex, represents the standard wiring method for most residential applications. This cable type contains two or more insulated conductors plus a bare ground wire protected by an outer plastic jacket. The construction allows for relatively easy installation through wood framing while providing adequate protection against accidental contact, similar to the safety considerations for transformer secondary wiring.
Available in various configurations from 14/2 to 6/3, NM-B cable accommodates different circuit requirements throughout the home. These size options parallel the conductor selections available for transformer connections in similar applications. The color-coded outer sheathing helps identify wire size and purpose, much like color coding simplifies transformer terminal identification during installation and maintenance.
Underground Feeder Cable (UF-B)
For outdoor residential applications or direct burial installations, UF-B cable provides a moisture-resistant alternative to NM-B. This cable type features conductors embedded in solid thermoplastic that resists water penetration and physical damage. The durable construction resembles the protective measures used for transformer connections in wet locations where environmental protection is critical.
UF-B cable is commonly used for outdoor lighting circuits, garage wiring, and other applications exposed to weather conditions. These outdoor requirements parallel those for transformer secondary connections that must withstand environmental exposure. The cable’s robust design ensures long-term reliability despite challenging installation conditions.
Electrical Properties and Safety Standards
Current Carrying Capacity and Ampacity
Proper wire sizing must account for both the continuous current load and the overcurrent protection device rating. These thermal considerations resemble those for transformer windings where conductor size affects temperature rise and longevity. The National Electrical Code specifies minimum wire sizes for various circuit types, with 14 AWG for 15-amp lighting circuits and 12 AWG for 20-amp receptacle circuits being most common in residential applications.
Larger appliances like electric ranges, dryers, and air conditioners require heavier gauge wiring to handle their substantial power demands. These high-current requirements parallel those for transformer secondary connections serving large loads. Careful circuit design prevents conductor overheating that could degrade insulation or create fire hazards over years of service.
Voltage Drop Considerations
While the NEC provides minimum wire size requirements, optimal residential wiring should also consider voltage drop over circuit length. These calculations resemble the voltage regulation planning for transformer secondary circuits where conductor characteristics affect system performance. Excessive voltage drop can cause dim lighting, motor overheating, and inefficient appliance operation.
For typical 120V branch circuits, the NEC recommends limiting voltage drop to 3% to ensure proper equipment operation. These voltage quality requirements parallel those for transformer-fed equipment where voltage variations can significantly impact performance. Larger wire sizes may be justified for long circuit runs to maintain adequate voltage at the farthest outlets.
Installation Methods and Best Practices
Outlet and Switch Wiring Techniques
Proper wiring techniques at devices ensure reliable connections that withstand years of use. These installation requirements mirror those for transformer terminals where mechanical stability ensures long-term reliability. Modern wiring practices include using pigtails for multiple connections rather than relying on device terminals, which improves reliability and simplifies future modifications.
The NEC now requires neutral conductors at most switch locations to accommodate smart switches and future upgrades. These evolving requirements reflect how residential electrical systems must adapt to new technologies, similar to how transformer connections sometimes need modification for system upgrades. Proper stripping and termination methods prevent loose connections that could cause overheating or arcing faults.
Branch Circuit Design Principles
Thoughtful circuit layout prevents overload conditions while providing convenient access to power throughout the home. These design principles resemble the load balancing considerations for transformer secondaries where even distribution improves efficiency. Separate circuits for lighting, receptacles, and major appliances ensure reliable operation and simplify troubleshooting when problems occur.
The NEC requires certain rooms like kitchens and bathrooms to have dedicated circuits for specific equipment. These specialized requirements parallel the dedicated circuits often used for critical transformer loads where reliability is essential. Modern homes typically include more circuits than older installations to accommodate increased electrical demands and improve safety.
Comparison with Alternative Wiring Methods
Copper vs Aluminum Conductors
Copper conductors dominate modern residential wiring due to superior conductivity and connection reliability. These material advantages parallel those of copper transformer windings where efficiency and durability are critical. While aluminum wiring may be found in some older homes, it requires special termination techniques and compatible devices to prevent oxidation problems that could create fire hazards.
The smaller diameter of copper conductors for a given current rating provides installation advantages in crowded electrical boxes. This size benefit resembles the space considerations in transformer design where compact copper windings improve power density. Proper conductor selection balances performance requirements with installation practicalities and long-term reliability expectations.
Conduit vs Cable Wiring Systems
Non-metallic sheathed cable offers cost-effective wiring for most residential applications, while conduit systems provide superior protection in demanding environments. These installation choices parallel those faced when selecting wiring methods for transformer connections in different settings. Conduit allows for easier future modifications but requires more labor for initial installation compared to NM-B cable.
The choice between wiring methods depends on construction type, local codes, and anticipated future needs. These decision factors resemble those considered when choosing between different transformer connection methods where both current and future requirements must be evaluated. Each approach has appropriate applications based on specific project requirements and budget considerations.
Future Developments in Residential Wiring
Smart Home Integration
Modern homes increasingly incorporate advanced wiring requirements to support home automation and energy management systems. These evolving needs parallel the increasing complexity of transformer monitoring systems in the digital age. Some installations now require additional low-voltage conductors or communication cables to handle data transmission alongside traditional power delivery.
Future wiring systems may incorporate powerline communication technology that uses existing conductors for both power and data. These integrated solutions resemble the combined power and monitoring systems being developed for smart transformers. Proper wire selection today should consider potential future upgrades to more advanced home automation systems that may require additional conductors or different wiring configurations.
Improved Safety Features
New wiring technologies continue to enhance residential electrical safety through innovative design features. These advancements parallel the safety improvements in transformer design where better materials and monitoring systems prevent failures. Arc-fault circuit interrupters (AFCIs) and ground-fault circuit interrupters (GFCIs) represent important safety devices that are becoming standard in modern home wiring.
Advanced insulation materials may allow for higher temperature ratings in smaller cable diameters while improving fire resistance. These developments mirror the conductor and insulation advancements in transformer design where efficiency and safety improvements are constantly being pursued. Such innovations could make home wiring installations both safer and more efficient in coming years.
Conclusion
Quality electrical wiring forms the foundation of safe and reliable home electrical systems, much like proper conductors ensure transformer performance. The relationship between wire selection and system reliability becomes particularly evident when considering the decades of trouble-free service expected from residential installations. Just as transformer design balances multiple engineering factors, home wiring must combine electrical performance with mechanical durability and strict safety standards.
Ongoing developments in wiring technology continue to enhance residential electrical capabilities while improving installation ease and safety. These advancements parallel the innovations in transformer design where materials science and manufacturing improvements drive progress. By understanding wiring requirements and following best practices, electricians can install systems that deliver decades of reliable service while meeting all safety codes and standards.
The careful balance between conductor sizing, insulation properties, and installation methods ensures home wiring will meet both current and future electrical needs. This comprehensive approach mirrors the engineering considerations applied to transformer systems where multiple factors must be evaluated for optimal design. Proper wire selection and installation ultimately determine the safety, efficiency, and longevity of residential electrical systems that power our modern homes.
