Electric stoves represent some of the highest power-demanding appliances in residential settings. As an electrical engineer specializing in transformers, I understand how proper wire selection impacts both safety and performance. The wiring requirements for electric stoves share fundamental principles with transformer secondary connections, particularly regarding current capacity and voltage drop considerations.
Transformers and electric stove wiring both deal with delivering substantial power efficiently and safely. While transformers manage voltage transformation for distribution, stove wiring must deliver this power to the cooking elements without excessive losses. The wire selection process involves balancing electrical requirements, installation methods, and safety standards.
Critical Factors in Stove Wiring Selection
Several key parameters determine the appropriate wire for electric stove installations. Current carrying capacity stands as the primary consideration, ensuring the wire can handle the appliance’s maximum power demand without overheating. Voltage rating must match the circuit requirements, typically 240V for modern electric ranges.
Wire insulation temperature rating must exceed the expected operating temperatures near the appliance. These requirements parallel those for transformer connections where conductor sizing affects both efficiency and safety. Proper grounding and circuit protection complete the essential wiring considerations.
Recommended Wire Types for Electric Stoves
Copper Conductors: Optimal Performance Choice
Copper remains the preferred conductor material for electric stove wiring due to its superior conductivity and durability. Type NM-B or THHN/THWN copper wires in 6 or 8 AWG sizes typically meet the requirements for most residential electric ranges. The copper’s low resistance minimizes energy losses during high-current operation.
In transformer terms, this resembles the use of copper windings in distribution transformers where efficiency matters. The material’s consistent performance under thermal cycling makes it reliable for the variable loads presented by stove elements. Copper also forms more reliable connections than alternatives, reducing potential hot spots.
Aluminum Wiring: Special Installation Requirements
Aluminum conductors may be used for electric stove circuits but require special considerations. Due to aluminum’s lower conductivity, larger wire sizes (typically 4 or 6 AWG) are needed to match copper’s current capacity. Proper anti-oxidant compounds and compatible connectors must be used to prevent connection degradation.
This situation parallels the use of aluminum windings in some power transformers where economics outweigh the slightly lower conductivity. Aluminum stove wiring must be installed by professionals familiar with the material’s unique requirements to ensure long-term safety and reliability.
Circuit Protection and Wire Sizing
Determining Appropriate Wire Gauge
Wire size selection begins with the stove’s rated current draw, typically ranging from 30 to 50 amps for residential units. National Electrical Code tables provide the minimum wire sizes, with 6 AWG copper commonly used for 40-50 amp circuits and 8 AWG for 30-40 amp ranges. These sizing requirements ensure safe operation under maximum load conditions.
Transformer secondary conductors follow similar sizing principles, where conductor capacity must exceed the maximum anticipated load. The calculations must account for continuous operation factors, as stove elements may cycle on for extended periods during cooking.
Overcurrent Protection Requirements
The circuit breaker or fuse must coordinate with the wire size to provide proper protection. A 40-amp stove typically requires a 50-amp breaker with 6 AWG wire, following NEC derating rules. This protection scheme prevents wire damage during overloads while allowing normal operation currents.
This approach mirrors transformer protection philosophy where devices must allow normal operation while preventing dangerous overload conditions. The time-current characteristics of stove circuit protection must account for temporary current surges when elements first energize.
Installation Methods and Best Practices
Cable vs Conduit Wiring Systems
Electric stoves may be wired using either nonmetallic sheathed cable (NM-B) or individual conductors in conduit. NM-B cable offers simpler installation for typical residential applications, containing all necessary conductors in one package. Conduit systems provide better physical protection and are preferred in commercial installations or where damage potential exists.
These installation methods resemble choices in transformer secondary wiring, where environmental factors determine the appropriate approach. Both methods must maintain proper wire spacing and bending radii to prevent insulation damage during and after installation.
Connection Techniques and Termination
Proper connection methods are critical for safe stove operation. Terminal screws must be tightened to specified torques to ensure low-resistance connections. Stranded conductors should be properly dressed and secured to prevent stray strands from causing shorts.
These requirements parallel those for transformer connections where poor terminations can lead to overheating and failure. The use of proper lugs and anti-oxidant compounds (for aluminum) ensures reliable performance over years of thermal cycling.
Special Considerations for Different Stove Types
Standard Electric Coil Ranges

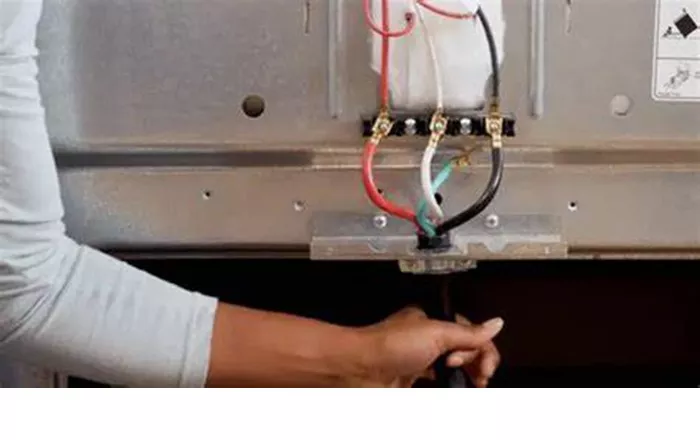

Traditional electric coil ranges typically require 240V circuits with neutral connections for 120V controls and lights. The wiring must include both ungrounded (hot) conductors, a grounded (neutral) conductor, and an equipment grounding conductor. This configuration allows for both 240V heating elements and 120V auxiliary components.
This dual-voltage requirement resembles certain transformer configurations where multiple voltages are derived from a single supply. The neutral conductor must be properly sized to handle potential imbalance currents between the two hot legs.
Smooth-Top and Induction Ranges
Modern smooth-top and induction ranges often have different power requirements than traditional coil models. Some high-end induction ranges may demand 60 amp circuits, necessitating 4 AWG copper conductors. The wiring must account for potential higher inrush currents when multiple induction elements activate simultaneously.
These characteristics parallel the starting current considerations for transformer loads. The wiring system must withstand brief current surges without nuisance tripping while still providing overload protection.
Voltage Drop Considerations
Calculating Acceptable Voltage Loss
Voltage drop becomes particularly important for electric stove circuits, especially in longer runs. The NEC recommends no more than 3% voltage drop on branch circuits for optimal appliance performance. Calculations must consider both the circuit length and the maximum current draw to determine if larger conductors are needed.
This consideration resembles voltage regulation requirements in transformer design, where output voltage must remain within specified limits under load. Excessive voltage drop can lead to reduced heating element performance and longer cooking times.
Solutions for Long Circuit Runs
When voltage drop becomes problematic, several solutions exist. Increasing conductor size reduces resistance and corresponding voltage loss. Using higher temperature rated conductors allows for more current in the same physical size. In extreme cases, relocating the circuit closer to the panel may be necessary.
These approaches mirror techniques used in transformer secondary distribution systems where voltage regulation matters. Proper planning during installation prevents performance issues during operation.
Safety Standards and Code Requirements
NEC Compliance Essentials
Electric stove wiring must comply with National Electrical Code Article 220 for branch circuit calculations and Article 210 for receptacle requirements. The circuit must be dedicated to the range only, with no other outlets or devices connected. Ground fault protection is typically not required for pure 240V appliance circuits.
These requirements align with transformer installation codes where dedicated circuits and proper overcurrent protection are equally critical. Compliance ensures safe operation and prevents potential fire hazards from inadequate wiring.
Local Amendments and Inspections
Local jurisdictions may have amendments to the NEC that affect stove wiring requirements. Permits and inspections are typically required for new circuit installations. Professional installation is recommended to ensure compliance with all applicable codes and standards.
This parallels transformer installation practices where local regulations may modify national standards. Proper documentation and inspection help verify that installations meet all safety requirements before energization.
Future Trends in Appliance Wiring
Higher Efficiency Requirements
Emerging energy efficiency standards may influence future stove wiring practices. Some jurisdictions are considering requirements for energy monitoring circuits in high-power appliances. These systems might require additional conductors for data communication alongside power delivery.
This evolution resembles smart grid developments affecting transformer and metering technologies. The wiring infrastructure must adapt to support both power delivery and information exchange.
Advanced Material Developments
New conductor and insulation materials may change stove wiring practices in coming years. Higher temperature insulations could allow for more compact wiring designs. Improved connection technologies might reduce installation time while enhancing reliability.
These advancements parallel material developments in transformer construction where improved dielectrics and conductors enable more efficient designs. The common goal remains delivering power safely and efficiently to end-use equipment.
Conclusion
Selecting the right wire for an electric stove involves careful consideration of electrical requirements, safety standards, and installation conditions. Copper conductors in 6 or 8 AWG sizes typically represent the best choice for most residential installations, providing the ideal balance of performance, safety, and cost. Aluminum alternatives require special installation techniques but may be suitable in some cases.
The wiring must be properly sized for the stove’s current requirements while accounting for voltage drop in longer runs. Circuit protection must coordinate with conductor capacity to ensure safe operation. Professional installation following all applicable codes guarantees a reliable, long-lasting installation.
These principles share much with transformer secondary circuit design where proper conductor selection and protection are equally vital. By understanding and applying these wiring fundamentals, homeowners and professionals alike can ensure safe, efficient operation of electric cooking appliances for years to come.
