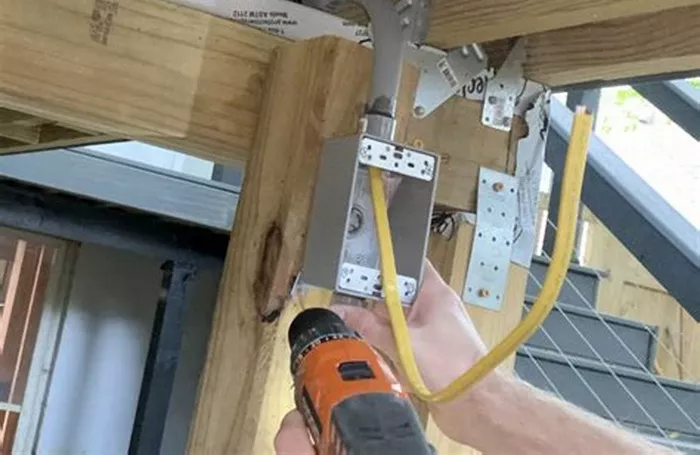

Running electrical power to an outbuilding like a shed requires careful planning and proper material selection to ensure safety, reliability, and code compliance. As an electrical equipment engineer with transformer expertise, I understand how voltage drop, environmental conditions, and load requirements influence wiring decisions for detached structures. This comprehensive guide examines the best wiring options for shed installations while explaining the technical considerations that ensure optimal performance and longevity.
Understanding Shed Electrical Requirements
The type of wire needed for a shed depends on several key factors including the distance from the power source, the electrical load requirements, and whether the installation will be underground or overhead. Each scenario presents unique challenges that affect conductor selection and installation methods to maintain proper voltage levels and safety standards.
Load calculation fundamentals
Determining the shed’s electrical needs is the first critical step before selecting wiring. Consider all planned equipment like lighting, power tools, heating systems, or other appliances that will operate simultaneously. The total wattage requirement dictates the circuit amperage which directly impacts wire size selection to prevent overheating and voltage drop issues.
Recommended Wire Types for Shed Installations
Several wiring methods meet code requirements for shed installations, each with specific advantages depending on the installation method and environmental conditions.
Underground feeder cable (UF-B)
UF-B cable represents one of the most common and practical solutions for buried shed wiring. This durable cable features insulated conductors surrounded by a tough, moisture-resistant jacket designed specifically for direct burial applications without conduit. The cable’s construction resists soil chemicals and moisture infiltration while providing adequate physical protection against minor underground hazards.
Individual THWN-2 conductors in conduit
For installations requiring additional protection or future expansion capability, running individual THWN-2 conductors through schedule 40 or 80 PVC conduit offers superior flexibility. This method allows for easier wire replacement or circuit additions later while providing excellent physical protection. The conduit system must be properly sealed and buried at appropriate depths to prevent damage and water infiltration.
Conductor Material Selection
The choice between copper and aluminum conductors involves important trade-offs that affect performance, cost, and installation requirements for shed wiring projects.
Copper wire advantages
Copper conductors provide superior conductivity and corrosion resistance, making them ideal for most shed wiring applications despite their higher material cost. The metal’s excellent connection properties and long-term reliability often justify the additional expense, especially for critical or high-load installations where voltage drop is a concern.
Aluminum wire considerations
Aluminum conductors offer cost savings for long runs but require special installation techniques to prevent connection problems. Proper termination with antioxidant compound and torque-rated connectors is essential when using aluminum wiring. The larger physical size needed for equivalent ampacity may also affect conduit sizing decisions.
Voltage Drop Calculations
Proper wire sizing must account for voltage drop over the distance between power source and shed to ensure adequate voltage reaches all connected equipment.
Impact of conductor length
Longer wire runs require larger conductor sizes to maintain acceptable voltage levels at the shed’s electrical panel. While the National Electrical Code specifies minimum wire sizes based on ampacity, practical installations often exceed these minimums to keep voltage drop below 3% for optimal equipment operation.
Transformer secondary considerations
For installations fed from a remote transformer, the utility’s secondary voltage and transformer tap settings affect the actual voltage available at the service point. These factors must be considered when calculating conductor sizing to compensate for potential voltage drop across the entire system.
Installation Methods and Requirements
Proper installation techniques ensure shed wiring maintains safety and performance throughout its service life while meeting electrical code requirements.
Direct burial installation practices
UF-B cable must be buried at proper depths (typically 24 inches for residential applications) with warning tape placed above the trench to alert future excavators. The cable should be bedded in sand when passing through rocky soil to prevent damage from sharp objects and frost heave.
Conduit installation techniques
When using conduit systems, proper sizing and fill calculations prevent overheating while allowing for future wire replacement if needed. All conduit runs must include proper expansion fittings and support spacing as specified by local codes, with sealed terminations to prevent water infiltration.
Overcurrent Protection Requirements
The shed wiring requires careful coordination with the circuit protection devices to ensure proper conductor protection and safe operation.
Feeder breaker sizing
The conductors running to the shed must be protected by an overcurrent device rated no higher than their ampacity. The breaker or fuse protects these conductors from overload while allowing for the full rated current of the circuit.
Subpanel requirements
For sheds with multiple circuits, a properly sized subpanel with main disconnect provides circuit protection and allows for individual branch circuit control. The panel must include proper grounding and bonding connections to ensure safety.
Grounding and Bonding Considerations
Proper grounding of the shed electrical system ensures safety and reliable operation of all connected equipment.
Grounding electrode system
The shed’s electrical system requires connection to a grounding electrode such as a ground rod or other approved electrode. This connection stabilizes the system voltage to ground during normal operation and provides a safe path for fault currents.
Equipment grounding conductor
All shed wiring must include an equipment grounding conductor sized appropriately for the circuit amperage. This conductor provides the fault current return path that enables overcurrent devices to operate properly during ground faults.
Code Compliance and Inspection Requirements
All shed wiring must comply with local adaptations of the National Electrical Code and any additional municipal requirements.
NEC detached structure wiring rules
Article 225 of the NEC specifies detailed requirements for wiring to detached structures, including conductor sizing, overcurrent protection, and disconnect requirements. These rules address clearance, protection from physical damage, and proper identification of conductors.
Local permitting considerations
Most jurisdictions require permits for electrical work to outbuildings, with inspections verifying proper installation before energizing the system. Understanding these local requirements prevents costly rework and ensures insurance coverage remains valid.
Emerging Technologies and Future Considerations
Advancements in materials and electrical system design continue to influence shed wiring practices.
Renewable energy integration
Future-proof shed wiring considers potential additions like solar photovoltaic systems or battery backups that may require larger conductors or additional conduit space for future connections.
Smart shed automation
Modern shed installations may include smart lighting, security systems, or equipment monitoring that requires additional low-voltage wiring or data communication cables installed concurrently with power wiring.
Conclusion
Selecting the proper wire type for shed installations requires careful consideration of electrical requirements, installation conditions, and long-term performance expectations. From UF-B direct burial cable to individual THWN-2 conductors in conduit, each option offers specific advantages that must be weighed against project requirements and budget constraints. By understanding these factors and following code-compliant installation practices, homeowners and electricians can ensure safe, reliable power distribution to outbuildings that meets current needs while accommodating future electrical demands.
This guide provides a comprehensive framework for designing and installing shed wiring systems that balance performance, safety, and cost-effectiveness. Proper conductor selection and installation techniques form the foundation for electrical systems that deliver years of trouble-free service while maintaining the highest safety standards. The relatively simple nature of shed wiring projects makes them accessible to many homeowners, but the critical safety implications warrant careful planning and often professional assistance to ensure optimal results.
