Selecting the proper wiring for electrical outlets requires careful consideration of electrical codes, load requirements, and installation conditions. As an electrical equipment engineer with transformer expertise, I understand how proper wire selection impacts circuit performance, safety, and compatibility with the broader electrical system. This comprehensive guide examines the best wiring options for outlet installations while explaining the technical considerations that ensure reliable power distribution throughout residential and commercial buildings.

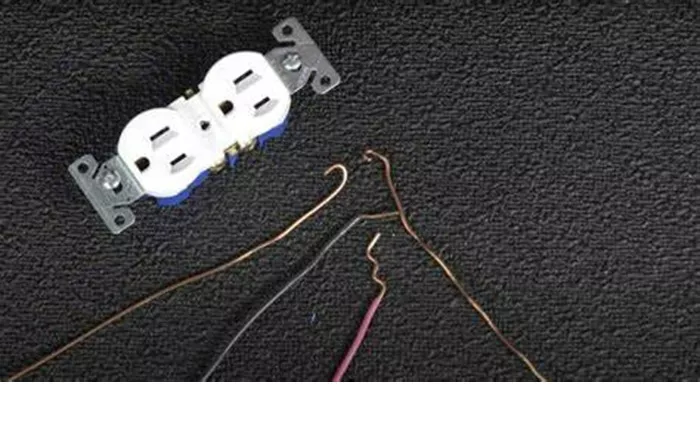

Understanding Outlet Wiring Requirements
Electrical outlets serve as the interface between building wiring and connected devices, making proper wire selection critical for safe operation. The type of wire needed depends on circuit voltage, amperage rating, installation method, and environmental conditions present in the installation location. Each factor influences conductor sizing and insulation requirements to prevent overheating and ensure long-term reliability.
Circuit configuration fundamentals
Standard 120V residential outlets typically use single-phase alternating current supplied from the secondary winding of a distribution transformer. The wire must accommodate both the continuous current draw from connected devices and any temporary surge currents that occur when motors or transformers in appliances first energize. Proper sizing accounts for these variable load conditions while maintaining safe operating temperatures.
Recommended Wire Types for Outlet Circuits
Several wiring options meet code requirements for outlet installations, each offering specific advantages depending on the application and installation environment.
NM-B nonmetallic sheathed cable
NM-B cable, commonly called Romex, represents the most widely used wiring method for residential outlet circuits. This flexible cable contains insulated conductors (typically 14 AWG or 12 AWG) surrounded by a durable plastic jacket that provides physical protection and simplifies installation. The cable’s construction includes a bare copper equipment grounding conductor that ensures proper fault current paths.
THHN/THWN-2 individual conductors in conduit
For commercial installations or locations requiring additional physical protection, individual THHN or THWN-2 conductors in metal or PVC conduit offer superior durability. These moisture-resistant wires maintain their insulation properties in various environments while the conduit system allows for easier future modifications or circuit additions compared to NM cable.
Conductor Size Selection
Proper wire sizing prevents excessive voltage drop and overheating while ensuring adequate current capacity for connected loads.
15-amp circuit requirements
Standard 15-amp branch circuits for general purpose outlets typically use 14 AWG copper wire, which provides sufficient capacity for lighting and small appliances while meeting NEC ampacity requirements. The smaller conductor size reduces material costs for circuits serving typical residential loads.
20-amp circuit considerations
Circuits designed for 20-amp outlets require 12 AWG copper wire to handle the increased current capacity needed for power tools, kitchen appliances, or other heavy-duty equipment. The larger conductor size reduces voltage drop over longer runs while maintaining safe operating temperatures at full load.
Installation Methods and Requirements
Proper wiring techniques ensure outlet circuits perform reliably while meeting electrical code standards for various installation scenarios.
Wall cavity wiring practices
When running NM cable through wall studs or ceiling joists, proper securing and protection against sharp edges prevents insulation damage. Cables must be stapled within 12 inches of boxes and every 4.5 feet thereafter, with bends maintaining a radius at least five times the cable diameter to avoid kinking.
Conduit wiring techniques
Conduit systems require careful fill calculations to prevent overheating, with no more than four current-carrying conductors in a single raceway before applying derating factors. Proper bending techniques and support spacing maintain conduit integrity while allowing for future wire pulls or replacements.
Voltage Drop Considerations
Proper wire sizing must account for voltage drop over the circuit length to ensure adequate voltage reaches all connected devices.
Impact of circuit length
Longer outlet circuits require larger conductor sizes to maintain acceptable voltage levels at the farthest outlet. While the NEC specifies minimum wire sizes based on ampacity, practical installations often use 12 AWG wire for runs exceeding 50 feet to keep voltage drop below 3% for optimal equipment operation.
Transformer secondary effects
For circuits fed from distant transformers, the utility’s voltage regulation and transformer tap settings affect the actual voltage available at the service panel. These factors must be considered when calculating conductor sizing to compensate for potential voltage drop across the entire distribution system.
Grounding and Bonding Requirements
Proper grounding ensures safety by providing effective fault current paths that enable overcurrent devices to operate promptly.
Equipment grounding conductor
All modern outlet circuits must include an equipment grounding conductor sized appropriately for the circuit amperage. This conductor connects to outlet grounding terminals and metal boxes, creating a low-impedance path for fault currents that allows breakers to trip quickly during ground faults.
System bonding jumper
The connection between neutral and ground at the main service panel stabilizes system voltage during normal operation while ensuring proper operation of ground fault circuit interrupters (GFCIs) that protect many modern outlets.
Special Outlet Wiring Considerations
Certain outlet types and locations require specific wiring approaches to meet safety standards and functional requirements.
GFCI and AFCI protection
Ground fault and arc fault protected outlets require careful attention to wiring connections to ensure proper operation. The line and load terminals must be correctly identified when wiring GFCI outlets that provide downstream protection, while AFCI circuits may require dedicated home runs to the panel.
240-volt outlet wiring
High-voltage outlets for large appliances use two ungrounded conductors and one equipment ground, with the neutral conductor omitted for pure 240-volt loads. The wire size must account for the higher current demands of these dedicated circuits while maintaining proper insulation ratings.
Code Compliance and Inspection Requirements
All outlet wiring must comply with current National Electrical Code standards and local amendments that govern installation practices.
NEC outlet spacing rules
Article 210 specifies requirements for outlet placement, including the well-known “6-foot rule” for wall spacing in habitable rooms. These requirements influence the number of outlets needed on each circuit and consequently affect the total circuit loading calculations.
Tamper-resistant outlet requirements
Modern electrical codes mandate tamper-resistant outlets in most residential locations, which affects wiring techniques to ensure proper spring contact tension and reliable connections that maintain safety features.
Emerging Technologies and Future Considerations
Advancements in electrical systems continue to influence outlet wiring practices for both residential and commercial installations.
Smart outlet integration
Modern smart outlets with energy monitoring or remote control capabilities may require neutral conductors even for simple switched outlets, affecting traditional wiring approaches. Some advanced systems also incorporate low-voltage wiring for data communication alongside power conductors.
Electric vehicle charging circuits
Dedicated circuits for EV chargers often require heavier gauge wiring (6 AWG or larger) and specific outlet types that accommodate continuous high-current loads for extended periods, influencing conductor selection and installation methods.
Conclusion
Selecting the proper wire for outlet installations requires careful consideration of electrical requirements, installation conditions, and long-term performance expectations. From NM-B cable for basic residential circuits to individual THHN conductors in conduit for commercial applications, each option offers specific advantages that must be weighed against project requirements and budget constraints. By understanding these factors and following code-compliant installation practices, electricians and homeowners can ensure safe, reliable power distribution to all outlets throughout a building.
This guide provides a comprehensive framework for designing and installing outlet wiring systems that balance performance, safety, and cost-effectiveness. Proper conductor selection and installation techniques form the foundation for electrical systems that deliver years of trouble-free service while maintaining the highest safety standards. The relatively simple nature of outlet wiring belies its critical importance in building electrical systems, warranting careful attention to detail during installation and maintenance.
