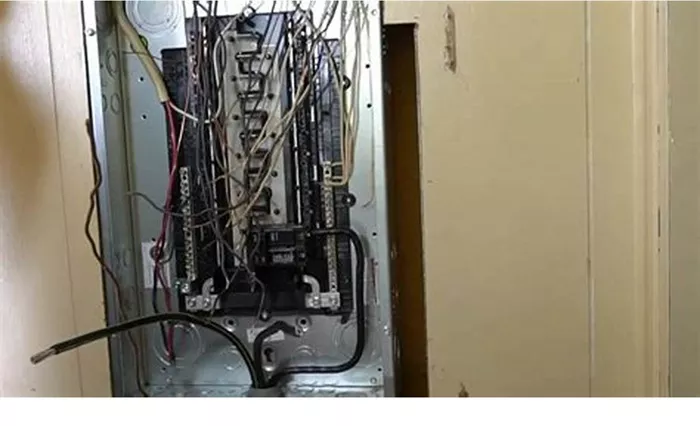

Installing a 60 amp subpanel requires careful selection of appropriate wiring that meets both electrical code requirements and practical performance needs, with considerations extending beyond simple ampacity ratings to include voltage drop calculations, installation methods, and future expansion possibilities. As an electrical equipment engineer specializing in power distribution systems, I will provide comprehensive guidance on selecting the optimal wiring solution while explaining the technical rationale behind these recommendations through the lens of transformer theory and electrical distribution principles.
Understanding Electrical Requirements for 60 Amp Subpanels
A 60 amp subpanel serves as an intermediate power distribution point that receives its feed from the main service panel and subsequently distributes power to various branch circuits, requiring conductors capable of handling not only the rated current but also temporary surge currents that occur during motor starts or simultaneous operation of multiple high-power devices. The National Electrical Code establishes minimum wire size requirements based on insulation type and installation method, mandating that conductors must be rated for at least 60 amps after applying all necessary derating factors that account for ambient temperature variations, conductor bundling conditions, and continuous load operation scenarios that could affect thermal performance.
Recommended Conductor Types and Specifications
THHN/THWN-2 Copper Conductors in Conduit Systems
Individual THHN or THWN-2 copper conductors installed in either EMT metallic conduit or PVC nonmetallic conduit represent the most versatile and code-compliant solution for 60 amp subpanel installations, offering superior physical protection and adaptability to various environmental conditions while facilitating future circuit modifications or expansions. These thermoplastic-insulated conductors maintain excellent dielectric properties across a wide temperature range and their moisture-resistant THWN-2 rating makes them suitable for damp locations or underground installations when properly protected within conduit systems that prevent mechanical damage and environmental degradation.
NM-B Nonmetallic Sheathed Cable Alternatives
For residential applications where conduit installation proves impractical or cost-prohibitive, NM-B nonmetallic sheathed cable containing appropriately sized copper conductors provides a code-approved alternative that simplifies installation in wall cavities and through framing members while maintaining adequate protection against physical damage in typical building environments. Commonly known as Romex, this cable type incorporates insulated current-carrying conductors along with a bare equipment grounding conductor all contained within a durable outer jacket that resists abrasion and moderate environmental exposure, though it remains unsuitable for direct burial or locations subject to severe physical damage without additional protection.
Comprehensive Conductor Sizing Methodology
Copper Conductor Selection Criteria
When specifying copper conductors for 60 amp subpanel feeds, 6 AWG THHN/THWN-2 copper represents the minimum acceptable size when using the 75°C ampacity column from NEC Table 310.16, though prudent design practice often dictates upsizing to 4 AWG for longer circuit runs or installations where voltage drop mitigation becomes a primary concern. The selection process must account for termination temperature ratings of connected equipment, with most modern circuit breakers and panel lugs now rated for 75°C operation allowing full utilization of the conductor’s ampacity potential when properly installed using torque-rated connectors and following manufacturer’s specified installation procedures.
Aluminum Conductor Implementation Considerations
Aluminum conductors present a cost-effective alternative to copper for 60 amp subpanel installations, with 4 AWG aluminum providing equivalent ampacity to 6 AWG copper when properly installed using antioxidant compounds at all termination points and torque-rated connectors specifically designed for aluminum-to-copper interfaces. The larger physical dimensions of aluminum conductors compared to their copper equivalents may necessitate upsizing of conduit runs and careful attention to bending radii during installation, while the inherent oxide formation characteristics of aluminum require periodic inspection of termination points to ensure maintained connection integrity over decades of service.
Voltage Drop Analysis and Mitigation Strategies
Proper electrical design demands consideration of voltage drop across the entire feeder circuit path, with industry standards recommending maintaining voltage drop below 3% for feeder circuits and 5% total between service entrance and final utilization equipment to ensure optimal performance of connected loads. Longer circuit runs exceeding 50 feet often require conductor upsizing beyond minimum ampacity requirements, with 4 AWG copper or 2 AWG aluminum becoming necessary to maintain acceptable voltage levels at the subpanel when supplying sensitive electronic equipment or motor loads that exhibit reduced performance and efficiency when operated at diminished voltage conditions.
Transformer theory principles inform these voltage drop calculations, as the impedance characteristics of both the service transformer and any customer-owned step-down transformers in the distribution path contribute to overall system voltage regulation, necessitating verification of transformer tap settings during installation and potential adjustment to compensate for line losses. The vectorial nature of voltage drop in AC systems requires consideration of both resistive and reactive components, particularly in installations where power factor correction capacitors or harmonic-producing nonlinear loads significantly impact the overall impedance characteristics of the distribution system.
Installation Best Practices and Code Compliance
Conduit installations demand careful attention to fill ratios specified in NEC Chapter 9, with the 40% fill limitation for three or more conductors in conduit ensuring adequate space for heat dissipation and future wire pulls while maintaining acceptable pulling tension during installation. Proper bending techniques using appropriate tools prevent conductor insulation damage and maintain the structural integrity of metallic conduit systems, while support spacing requirements specified in NEC Article 358 for EMT and Article 352 for PVC ensure long-term mechanical stability of the raceway system under various environmental conditions.
Cable-type installations require adherence to NEC Article 334 provisions regarding securing and supporting requirements, with NM-B cable requiring securement within 12 inches of outlet boxes and at intervals not exceeding 4.5 feet thereafter while maintaining bend radii that prevent jacket deformation or conductor insulation damage. Protection against physical damage becomes paramount in exposed locations, with armored cable or supplemental protection methods required where cables pass through framing members or in areas subject to potential mechanical abuse that could compromise the cable assembly’s integrity over time.
System Protection and Grounding Considerations
The overcurrent protection scheme for 60 amp subpanel feeders must coordinate with the conductor ampacity and connected load characteristics, utilizing circuit breakers specifically listed for use with the panelboard manufacturer’s equipment and properly calibrated to provide both overload and short-circuit protection in accordance with NEC Article 240 requirements. Transformer-fed installations introduce additional coordination complexities, requiring careful evaluation of primary-side protection devices to ensure adequate fault clearing times that protect secondary conductors while allowing for transformer inrush currents that typically last between 0.1 and 2 seconds depending on the transformer’s design characteristics and connected load conditions.
Grounding system implementation follows NEC Article 250 requirements mandating proper separation of neutral and equipment grounding conductors at subpanels while maintaining continuous equipment grounding paths back to the service entrance, with sizing of equipment grounding conductors based on the rating of the overcurrent protective device as specified in Table 250.122. The grounding electrode system at separate structures must comply with NEC 250.32 provisions, often requiring supplemental grounding electrodes bonded to the equipment grounding conductor to ensure proper fault current paths and mitigate potential differences between metallic systems during lightning events or utility system fault conditions.
Future-Proofing and Technological Integration
Modern electrical systems increasingly incorporate smart technologies and renewable energy interfaces that influence subpanel wiring strategies, potentially requiring additional conductor capacity for communication circuits, energy monitoring equipment, or future load management systems. The proliferation of electric vehicle charging equipment and battery energy storage systems introduces new design considerations, with many jurisdictions now requiring subpanel installations to accommodate future electric vehicle supply equipment circuits or provide dedicated spaces for energy management system components that may require additional circuit capacity beyond initial load calculations.
Emerging conductor technologies including superconductors and advanced composite materials promise to revolutionize power distribution systems in coming decades, though current installations should focus on robust conventional designs that accommodate foreseeable load growth while maintaining flexibility for integration with developing smart grid technologies. The fundamental principles of proper conductor sizing, overcurrent protection coordination, and grounding system integrity will remain paramount regardless of technological advancements, ensuring safe and reliable operation of 60 amp subpanel installations throughout their service life.
Conclusion
Selecting and installing the proper wiring for a 60 amp subpanel requires synthesis of electrical code requirements, engineering principles, and practical installation considerations to create a power distribution system that delivers safe, reliable performance across decades of service. From the fundamental choice between copper and aluminum conductors to the nuanced decisions regarding voltage drop mitigation and future expansion capacity, each design decision carries implications for system performance, maintenance requirements, and operational costs that extend far beyond the initial installation.
Ultimately, the investment in proper design and quality installation practices for 60 amp subpanel wiring yields dividends in system reliability, operational efficiency, and safety that far outweigh any short-term cost considerations, establishing a solid foundation for electrical systems that must power our homes and businesses through an era of rapidly evolving energy technologies and increasing electrical demands.
