Electrical fires present unique dangers that require specialized extinguishers designed specifically for energized equipment. As an electrical engineer familiar with transformers, I understand how crucial proper fire suppression is for protecting valuable electrical assets. Unlike ordinary fires, electrical blazes demand extinguishers that won’t conduct electricity back to the operator or cause short circuits in sensitive components.
Transformer facilities in particular need careful extinguisher selection due to the combination of high-voltage equipment, flammable insulating oils, and critical infrastructure. The right extinguisher must be non-conductive, provide rapid flame knockdown, and leave minimal residue that could damage expensive electrical components. Understanding these requirements helps facility managers select the best protection for their specific electrical fire risks.
Critical Characteristics of Electrical Fires
Electrical fires belong to Class C classification and behave differently from other fire types due to their energized nature. These fires often start from short circuits, overloaded circuits, or equipment failures that generate intense heat. The presence of live electricity creates shock and arc flash hazards that complicate firefighting efforts.
In transformer applications, electrical fires may involve both the energized components and surrounding insulating oil. This combination of hazards requires extinguishers that can handle electrical fires while being prepared for potential oil involvement after de-energization. The extinguishing method must interrupt the fire without creating additional electrical paths that could endanger responders.
Recommended Extinguishers for Electrical Fires

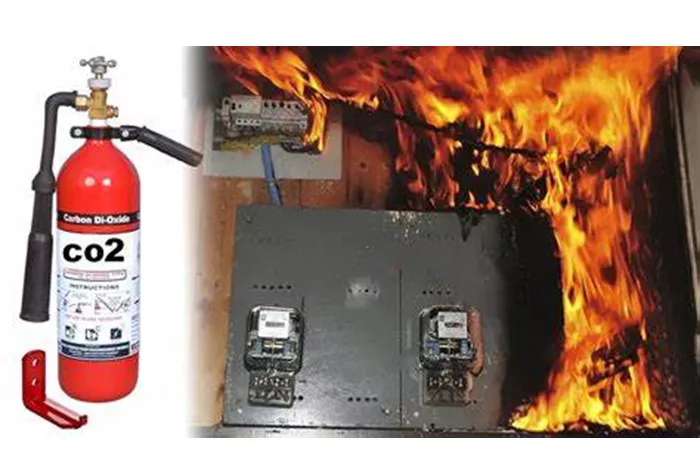

Carbon Dioxide (CO₂) Extinguishers
CO₂ extinguishers represent the gold standard for electrical fire protection in most industrial and utility settings. The gaseous carbon dioxide leaves no residue and presents absolutely no conductivity hazard, making it perfectly safe for energized equipment. The rapid discharge knocks down flames quickly while the heavy gas displaces oxygen to prevent reignition.
For transformer facilities, CO₂ extinguishers offer several advantages. The extremely cold discharge helps cool overheated components without water damage to insulation systems. They won’t contaminate transformer oil or leave corrosive residues that could affect long-term reliability. The clean operation allows faster restoration of service after discharge compared to other extinguisher types.
Dry Chemical Extinguishers (Class C Rated)
Multipurpose dry chemical extinguishers specifically rated for Class C fires provide excellent alternatives where CO₂ may be impractical. These formulations use monoammonium phosphate or sodium bicarbonate powders treated to enhance their non-conductive properties. The powder cloud interrupts flame propagation while helping block oxygen from reaching the fire source.
In transformer installations, dry chemical extinguishers offer advantages in areas where fires might involve both electrical components and surrounding ordinary combustibles. The powder can suppress small oil fires that develop from electrical faults while remaining safe for nearby energized equipment. Facilities should verify the extinguisher’s voltage rating matches their equipment.
Special Considerations for Transformer Applications
High-Voltage Equipment Protection
Transformer installations operating at transmission voltages (69kV and above) require special considerations for fire protection. While CO₂ and dry chemical extinguishers remain safe for lower voltages, their effectiveness diminishes for very high-voltage equipment where arc distances become substantial. Fixed suppression systems using clean agents or water mist often provide better solutions for large power transformers.
The extreme energies present in high-voltage arc flashes may overwhelm portable extinguishers, requiring different suppression approaches. Facilities should consult transformer manufacturers for specific recommendations and consider infrared monitoring systems that detect overheating before fires develop. Proper clearances must be maintained around high-voltage equipment to allow safe extinguisher use.
Oil-Filled Transformer Fires
Electrical fires in oil-filled transformers present complex challenges that may require multiple suppression methods. While CO₂ and dry chemical extinguishers can handle the initial electrical fire component, any significant oil involvement demands additional measures. The best approach involves using electrical-rated extinguishers for the arc or electrical fire while transitioning to foam or other appropriate methods once the equipment is de-energized.
Facility emergency plans must clearly outline this transition process with proper safeguards to ensure complete de-energization before switching extinguisher types. Personnel should be trained to recognize when an electrical fire has progressed to become primarily an oil fire requiring different suppression techniques.
Performance Comparison of Electrical Fire Extinguishers
Effectiveness in Arc Flash Situations
Arc flashes present some of the most dangerous electrical fire scenarios where extinguisher selection critically impacts outcomes. CO₂ extinguishers demonstrate excellent arc flash suppression by rapidly cooling the plasma channel and displacing oxygen. The gaseous discharge can penetrate into equipment enclosures where arcs originate while remaining safe for nearby energized components.
The extremely high temperatures in arc flashes (exceeding 20,000°C) require extinguishers with instant knockdown capability. Both CO₂ and dry chemical types meet this need when properly applied from safe distances. Facilities should select larger capacity models (minimum 10 lb for CO₂, 5 lb for dry chemical) to ensure adequate agent quantity for substantial arc events.
Equipment Damage Considerations
Post-fire equipment damage varies significantly between extinguisher types, affecting repair costs and outage durations. CO₂ leaves no residue and causes minimal collateral damage, often allowing faster restoration of service. Dry chemical extinguishers require thorough cleaning after use as the powder can infiltrate equipment and affect insulation resistance.
Transformer facilities must balance immediate fire control needs with long-term equipment reliability when selecting extinguishers. Areas containing sensitive control equipment or critical circuits often justify the higher cost of CO₂ extinguishers to minimize post-fire impacts. Less critical areas may utilize dry chemical models where residue cleanup presents fewer concerns.
Implementation Best Practices
Placement and Accessibility
Proper extinguisher placement significantly affects emergency response effectiveness in transformer facilities. Units should be mounted near potential electrical fire hazards but at safe distances from live components to prevent accidental contact during discharge. The recommended maximum travel distance is 15 meters for CO₂ and 10 meters for dry chemical extinguishers in electrical areas.
Clear signage should identify extinguisher locations and types while indicating their approved uses. Facilities should implement color-coding systems that help personnel quickly distinguish electrical fire extinguishers from other types during emergencies. Regular inspections verify that units remain fully charged and accessible without obstructions that could delay response.
Personnel Training Requirements
Comprehensive training ensures personnel understand how to properly use electrical fire extinguishers while recognizing their limitations. Hands-on drills should simulate realistic electrical fire scenarios where operators must select the correct extinguisher and apply it from safe distances. Training must emphasize the importance of maintaining proper stance and discharge angles to maximize effectiveness while minimizing risks.
Documentation should verify all personnel receive initial and refresher training at least annually, with additional sessions following any equipment changes that might affect fire risks. Contractors working in transformer facilities must demonstrate equivalent knowledge of proper extinguisher selection and use before being permitted to work in electrical areas.
Maintenance and Inspection Protocols
Monthly Visual Inspections
All electrical fire extinguishers require monthly visual checks to verify proper pressure, intact seals, and unobstructed access. CO₂ units need additional verification that discharge horns remain undamaged and that safety pins are properly seated. Dry chemical models should be gently inverted periodically to prevent powder compaction that could impair discharge performance.
Inspection tags must document the most recent professional service date while any signs of damage, corrosion, or tampering necessitate immediate replacement. Facilities should maintain detailed records of all inspections and corrective actions to demonstrate compliance with safety regulations and insurance requirements.
Annual Professional Servicing
Certified technicians should perform comprehensive annual servicing that includes complete discharge testing and refill operations. For CO₂ extinguishers, this includes weighing the cylinder to verify proper charge and checking valve mechanisms. Dry chemical servicing involves complete powder replacement and verification of expellant gas pressure.
In transformer facilities, the annual service should include dielectric testing of dry chemical extinguishers to confirm their non-conductive properties remain intact. Service reports must document compliance with both fire safety standards and electrical equipment protection requirements for all extinguishers in electrical areas.
Emerging Technologies in Electrical Fire Protection
Clean Agent Extinguishing Systems
New clean agent technologies provide alternatives to traditional CO₂ and dry chemical extinguishers for sensitive electrical equipment. These gaseous systems use chemicals like FK-5-1-12 or Novec 1230 that leave no residue and cause no ozone depletion. The agents work through heat absorption and chemical interference with the combustion process while remaining electrically non-conductive.
Transformer control rooms and relay panels increasingly utilize these systems where even minimal residue from dry chemical extinguishers could affect sensitive electronics. The higher cost becomes justified by reduced equipment damage and faster restoration of critical protection and control systems following discharge.
Water Mist Systems for De-energized Equipment
Advanced water mist systems now provide options for transformer and electrical equipment fires after proper de-energization. The ultra-fine water droplets (less than 1000 microns) create a non-conductive mist that cools fires through evaporation while minimizing water damage. These systems can be safely used on de-energized oil-filled transformers where traditional water spray would be hazardous.
Facilities are increasingly installing water mist as supplemental protection in transformer vaults and electrical rooms, with proper interlocks to prevent activation on energized equipment. The technology bridges the gap between electrical safety requirements and the need for effective cooling of large equipment fires after power removal.
Conclusion
Selecting the best extinguisher for electrical fires in transformer facilities requires balancing immediate suppression needs with long-term equipment reliability and personnel safety. CO₂ extinguishers generally provide the safest, cleanest option for most electrical fires while dry chemical models offer additional capabilities for combined hazard scenarios. The specific facility conditions, equipment types, and voltage levels ultimately determine the optimal mix of extinguishers for comprehensive protection.
Regular training and maintenance ensure extinguishers remain effective when needed while proper placement and signage facilitate quick emergency response. As transformer technology evolves, fire protection systems must adapt to address new risks while maintaining compatibility with sensitive electrical equipment. A well-designed electrical fire protection program incorporates both portable extinguishers and fixed systems tailored to the specific hazards present in each facility area.
By understanding these principles and implementing appropriate extinguisher selection criteria, transformer facilities can achieve optimal fire safety without compromising electrical system reliability. The modest investment in proper electrical fire extinguishers pays substantial dividends through reduced equipment damage, lower liability risks, and improved personnel safety during electrical emergencies.
