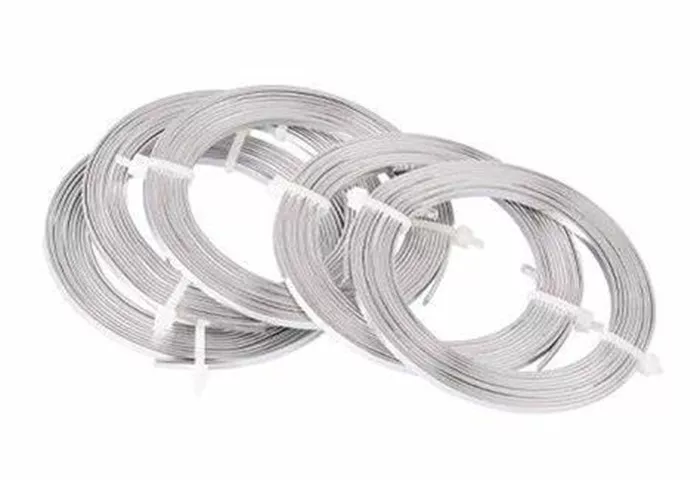

Flat wire represents a specialized conductor configuration that offers unique advantages in various electrical applications. As an electrical equipment engineer with transformer expertise, I understand how flat conductor geometry affects electromagnetic performance, heat dissipation, and mechanical properties in electrical systems. This comprehensive guide examines the diverse applications of flat wire, its technical benefits, and how its distinctive shape makes it particularly valuable in power distribution, transformer design, and other electrical engineering applications.
Understanding Flat Wire Characteristics
Flat wire differs from traditional round conductors in its rectangular cross-section, which provides distinct electrical and mechanical properties that engineers leverage for specific applications. The flattened geometry alters current distribution, thermal performance, and physical handling characteristics in ways that make it preferable for certain installations and components. These unique properties stem from fundamental electromagnetic principles that govern how electricity behaves in conductors of different shapes.
Electromagnetic properties of flat conductors
The rectangular cross-section of flat wire creates a different electromagnetic field distribution compared to round wire, affecting both inductance and skin effect characteristics. The wider surface area allows for more efficient heat dissipation while the shape influences how current density distributes across the conductor under alternating current conditions. These properties become particularly important in high-frequency applications and transformer windings where electromagnetic performance directly impacts efficiency.
Common Applications of Flat Wire
Flat wire serves critical functions across multiple industries, from power distribution to consumer electronics, thanks to its combination of electrical performance and space efficiency. The unique geometry enables solutions that would be impractical or impossible with conventional round conductors.
Transformer and inductor windings
In power and distribution transformers, flat wire (often called rectangular wire or magnet wire) allows for more efficient winding arrangements that maximize copper fill factor within the core window. The tight packing possible with flat conductors improves transformer efficiency by reducing winding resistance and leakage inductance while enhancing thermal transfer to cooling surfaces. Large power transformers frequently use multiple flat conductors wound in parallel to handle high currents while maintaining manageable conductor dimensions.
Busbar and power distribution systems
Flat wire configurations form the basis of busbar systems that distribute power in switchgear, panelboards, and industrial facilities. The wide, flat shape provides substantial surface area for heat dissipation while allowing compact, high-current capacity designs. Busbars made from flat copper or aluminum conductors can carry thousands of amps in relatively small spaces, making them essential for main power distribution in commercial and industrial buildings.
Technical Advantages of Flat Wire
The rectangular cross-section of flat wire provides several performance benefits that engineers utilize in electrical system design and component manufacturing.
Space efficiency in winding applications
Flat conductors pack more efficiently in transformer and motor windings than round wire, allowing higher copper fill factors that typically range from 85% to 95% compared to 70% to 80% for round wire. This improved space utilization enables more compact designs or higher power density in the same physical dimensions, directly impacting the size-to-performance ratio of electromagnetic devices.
Improved thermal performance
The increased surface area to volume ratio of flat wire enhances heat dissipation compared to round conductors of equivalent cross-sectional area. This thermal advantage allows for higher current densities in properly cooled applications while maintaining safe operating temperatures. The flat surfaces also make better contact with cooling plates or heat sinks in high-power applications.
Specialized Flat Wire Applications
Beyond conventional power applications, flat wire serves specialized roles that take advantage of its unique mechanical and electrical properties.
High-frequency and RF applications
In radio frequency systems and high-speed electronics, flat wire (often called ribbon wire) provides controlled impedance characteristics and reduced skin effect losses at high frequencies. The geometry allows precise spacing between conductors in multi-wire configurations, maintaining consistent electrical properties critical for signal integrity in communication systems and high-speed digital circuits.
Automotive and aerospace wiring
Flat wire cables find extensive use in vehicles and aircraft where space constraints and weight savings are paramount. The low-profile design allows routing through tight spaces while the reduced insulation volume compared to round wire bundles contributes to overall weight reduction. Automotive alternators frequently use flat wire in their stator windings to maximize power output within limited underhood space.
Manufacturing and Material Considerations
The production of flat wire involves specialized processes that ensure consistent dimensions and electrical properties throughout the conductor length.
Copper vs. aluminum flat wire
While copper remains the preferred material for most flat wire applications due to its superior conductivity, aluminum flat wire offers cost and weight advantages in large-scale power distribution systems. Aluminum busbars require approximately 56% larger cross-sections than copper to carry equivalent current but provide significant material cost savings in high-current installations.
Insulation and coating options
Flat magnet wire for winding applications comes with various insulation coatings including enamel, paper, or film insulation selected based on voltage requirements and thermal class. Bare flat wire used in busbar applications may receive no insulation or use insulating barriers at connection points depending on the specific installation requirements and safety clearances.
Installation and Handling Practices
Working with flat wire requires different techniques than conventional round conductors to maintain electrical performance and mechanical integrity.
Bending and forming techniques
Flat wire must be carefully bent to avoid damaging the conductor edges or insulation, with minimum bend radii typically specified as multiples of the conductor thickness. Special bending tools help maintain the rectangular cross-section during forming operations, particularly important for transformer windings where dimensional consistency affects electromagnetic performance.
Termination and connection methods
Flat wire terminations often use specialized lugs or clamping systems that distribute pressure evenly across the conductor’s width to prevent localized heating at connection points. Proper surface preparation and torque application are critical for aluminum flat wire connections to prevent oxidation-related issues over time.
Emerging Applications and Future Trends
Advancements in materials and manufacturing continue to expand flat wire applications in cutting-edge electrical technologies.
Electric vehicle power systems
The growing electric vehicle market drives innovation in flat wire applications for traction motors, battery interconnects, and charging systems. New winding techniques using hairpin-shaped flat conductors improve motor efficiency and power density in EV drivetrains while reducing manufacturing complexity compared to traditional round wire windings.
High-temperature superconducting tape
Second-generation superconducting wires use flat tape configurations with thin-film superconductors on metal substrates, enabling compact, high-current capacity cables for power transmission and high-field magnets. These advanced conductors operate at liquid nitrogen temperatures and represent the cutting edge of flat wire technology.
Conclusion
Flat wire serves as an essential component in modern electrical systems, offering unique advantages that make it indispensable for power distribution, transformer design, and specialized applications where space efficiency and thermal performance are critical. From the massive busbars in power substations to the precision windings in high-efficiency transformers, flat wire’s distinctive geometry enables electrical designs that would be impractical with conventional round conductors.
Understanding flat wire properties and applications allows electrical engineers to select the optimal conductor configuration for each specific requirement, balancing electrical performance, thermal management, and physical constraints. As electrical systems continue evolving toward higher power densities and more compact designs, flat wire will undoubtedly play an increasingly important role in meeting these technological challenges while maintaining safety and reliability standards.
The continued development of flat wire materials and manufacturing techniques promises to unlock new applications and performance benchmarks in power electronics, renewable energy systems, and electrified transportation. Electrical professionals who master flat wire characteristics and implementation will be well-equipped to design the next generation of efficient, compact electrical systems across industries.
