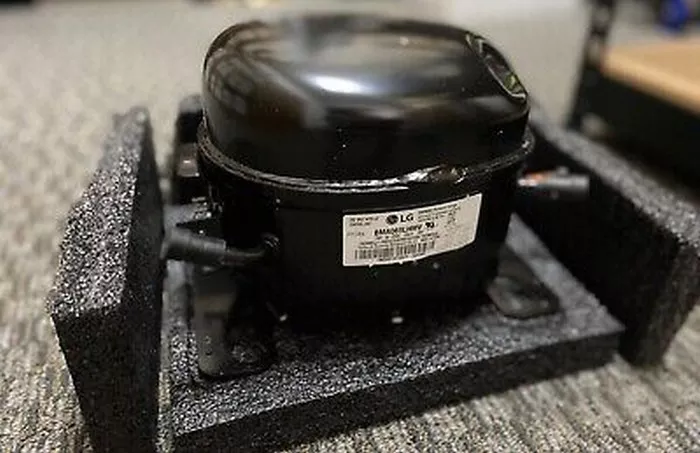

Kenmore Refrigerator Compressor: A Complete Guide

by Anna

Kenmore is a long-established and respected brand in the world of home appliances, known for offering durable, energy-efficient, and innovative refrigeration units. At the heart of every Kenmore refrigerator lies one of its most essential components: the compressor. The compressor plays a critical role in the refrigeration cycle, ensuring food stays fresh, ice is produced efficiently, and temperatures remain stable in both the fridge and freezer compartments.

In this article, we will explore the Kenmore refrigerator compressor in great detail, including its function, design, operation, common issues, troubleshooting tips, and maintenance guidelines. We’ll also draw connections to the broader field of air compressor and general machinery technology, providing a comprehensive perspective for technicians, homeowners, and engineers alike.

Advertisements

What Is a Refrigerator Compressor?

A refrigerator compressor is a mechanical device that circulates refrigerant through the cooling system of the appliance. It works as a pump driven by an electric motor, compressing the refrigerant vapor and increasing its pressure and temperature. This heated vapor is then routed through the condenser coils, releasing heat to the surrounding environment and allowing the refrigerant to condense into a liquid before continuing through the system.

Advertisements

The compressor is the driving force behind the refrigeration cycle. Without it, the heat exchange necessary for cooling cannot occur, rendering the entire system ineffective.

Advertisements

The Role of the Compressor in Kenmore Refrigerators

Kenmore refrigerators are designed with precision-engineered compressors that match the cooling capacity of the appliance. These compressors are known for their quiet operation, energy efficiency, and durability. Their job includes:

Advertisements
  • Compressing low-pressure refrigerant vapor.
  • Raising its temperature and pressure.
  • Sending the vapor to the condenser coils.
  • Enabling the circulation of refrigerant through the evaporator.

The cycle repeats continuously to maintain optimal internal temperatures.

Types of Compressors Used in Kenmore Refrigerators

Kenmore refrigerators typically use one of the following compressor types:

1. Reciprocating Compressor

This is the most common type used in domestic refrigerators. It uses a piston and cylinder assembly to compress the refrigerant. Its advantages include high efficiency and a relatively simple design.

2. Rotary Compressor

Rotary compressors use a rotating mechanism to compress refrigerant, providing quieter and smoother operation. These are often found in Kenmore’s higher-end or energy-efficient models.

3. Inverter Compressor

This advanced compressor can operate at variable speeds, making real-time adjustments based on cooling demand. Inverter compressors are known for their energy efficiency and minimal noise.

Compressor Components and Design in Kenmore Refrigerators

The Kenmore refrigerator compressor includes several key components that allow it to function reliably:

  • Electric Motor: Powers the movement of the compressor mechanism.
  • Crankshaft (in reciprocating types): Converts motor rotation into piston movement.
  • Suction and Discharge Valves: Control refrigerant flow into and out of the compression chamber.
  • Oil Reservoir: Lubricates moving parts to reduce wear and extend lifespan.
  • Hermetic Sealing: The compressor is typically sealed within a steel casing, reducing noise and protecting internal components from moisture and contaminants.

Materials and Build Quality

Kenmore compressors are built using high-quality materials like hardened steel, copper windings, and corrosion-resistant coatings. The hermetically sealed design ensures that internal components are isolated from environmental hazards, enhancing long-term reliability.

How a Kenmore Refrigerator Compressor Works

Let’s break down the typical cycle a Kenmore compressor goes through:

  1. Refrigerant Enters as a Vapor: Low-pressure vapor enters the compressor through the suction line.
  2. Compression Stage: The motor drives the piston or rotary mechanism, compressing the vapor.
  3. Pressurized Vapor Output: The now high-pressure, high-temperature vapor exits through the discharge line.
  4. Condensation: The vapor travels to the condenser coils, where it releases heat and condenses into a liquid.
  5. Cooling Cycle Continuation: The liquid refrigerant continues through an expansion valve and evaporator coils, absorbing heat from inside the fridge and turning back into a vapor.

This process is repeated in a closed loop, regulated by a thermostat and control board to maintain desired temperatures.

Signs of Compressor Problems in Kenmore Refrigerators

Understanding early signs of compressor failure can help prevent costly repairs or food spoilage. Look for the following symptoms:

  • Fridge not cooling: If the refrigerator is not maintaining proper temperatures, the compressor might not be running.
  • Loud or clicking noises: These could indicate motor or relay issues.
  • Overheating: Excessive heat at the back of the unit may suggest compressor strain.
  • Frequent cycling on/off: May indicate electrical or control board issues related to compressor load.
  • High electricity bills: Inefficient compressor operation can spike energy usage.

Diagnosing and Troubleshooting Kenmore Refrigerator Compressor Issues

Kenmore provides diagnostic codes on modern refrigerator displays, which can assist in identifying faults. Here’s a step-by-step guide to troubleshooting compressor issues:

Step 1: Check Power Supply

Ensure the refrigerator is receiving consistent power. Tripped breakers or blown fuses may prevent compressor operation.

Step 2: Inspect the Start Relay

The start relay helps the compressor motor start. If you hear clicking sounds and the compressor doesn’t run, this relay may need replacing.

Step 3: Test with a Multimeter

Measure resistance across the compressor’s terminals. Infinite resistance or shorted terminals typically indicate a failed motor winding.

Step 4: Assess the Capacitor

A faulty capacitor will prevent the motor from receiving the necessary boost to start.

Step 5: Check for Refrigerant Leaks

Low refrigerant levels from leaks will overwork the compressor, leading to overheating or failure.

Replacing the Compressor in a Kenmore Refrigerator

Compressor replacement is a complex task best left to certified technicians. However, understanding the process is helpful:

Tools Required:

  • Manifold gauge set
  • Vacuum pump
  • Refrigerant recovery unit
  • Brazing torch and nitrogen
  • Replacement compressor (OEM or compatible model)

Steps:

  1. Recover the existing refrigerant safely.
  2. Disconnect electrical and refrigerant lines.
  3. Cut and remove the old compressor.
  4. Install the new compressor and braze connections.
  5. Pull a vacuum to remove moisture and air.
  6. Recharge with correct refrigerant and test system operation.

Note: Improper handling of refrigerant or incorrect installation may void the warranty or violate environmental laws.

Energy Efficiency and Smart Features

Kenmore’s inverter compressors offer outstanding energy performance by adjusting speed based on load. This reduces wear and lowers electricity bills. Other smart features include:

  • Digital Temperature Control: Ensures precise internal climate.
  • Wi-Fi Connectivity: Some models offer remote monitoring via smartphone.
  • Eco Mode: Optimizes power consumption during low usage periods.

Maintenance Tips to Extend Compressor Life

Regular maintenance can significantly increase compressor lifespan. Follow these tips:

  • Clean the condenser coils: Dirty coils make the compressor work harder.
  • Ensure proper ventilation: Leave space behind the fridge to allow airflow.
  • Inspect door seals: Faulty seals lead to air leaks and increased compressor usage.
  • Avoid overloading: Excessive contents block air circulation, raising internal temperatures.
  • Listen for abnormal sounds: Catch issues early by staying alert to noise changes.

Kenmore Refrigerator Compressor and the Broader Field of General Machinery

The compressor in a Kenmore refrigerator is a classic example of compact general machinery used in residential cooling systems. It shares operational principles with industrial air compressors, particularly in thermodynamics and mechanical design. While air compressors are designed to pressurize air for tools and machinery, refrigerator compressors work with refrigerant gases to facilitate heat exchange.

Understanding this crossover is beneficial for professionals in HVAC, mechanical engineering, and appliance repair sectors, as the knowledge gained in one area often applies to another.

Common Models and Compressor Specifications

Kenmore refrigerator compressors differ by model. Below are a few common examples:

Model Compressor Type Refrigerant Power Rating Special Feature
Kenmore Elite 795 Inverter Rotary R600a 120V / 60Hz Smart cooling system
Kenmore 50023 Reciprocating R134a 115V / 60Hz Energy Star certified
Kenmore 73102 Rotary R600a 110V Multi-air flow cooling
Kenmore 70343 Inverter R600a 120V Dual evaporator

Warranty and Replacement Policies

Kenmore compressors typically come with a 5 to 10-year warranty depending on the model and date of purchase. Some extended warranties may also include free compressor replacement or repair labor. It’s crucial to register your appliance and keep service records to ensure warranty eligibility.

Conclusion

The Kenmore refrigerator compressor is a sophisticated piece of mechanical engineering, combining principles of thermodynamics, electrical systems, and materials science. Whether you’re a homeowner trying to understand how your refrigerator works or a technician troubleshooting a cooling issue, knowing the ins and outs of the compressor will be invaluable.

From its mechanical construction to its integration into smart home systems, the compressor is more than just a component—it is the engine that drives cooling performance. With proper care and a solid understanding, you can ensure your Kenmore refrigerator operates efficiently for years.
