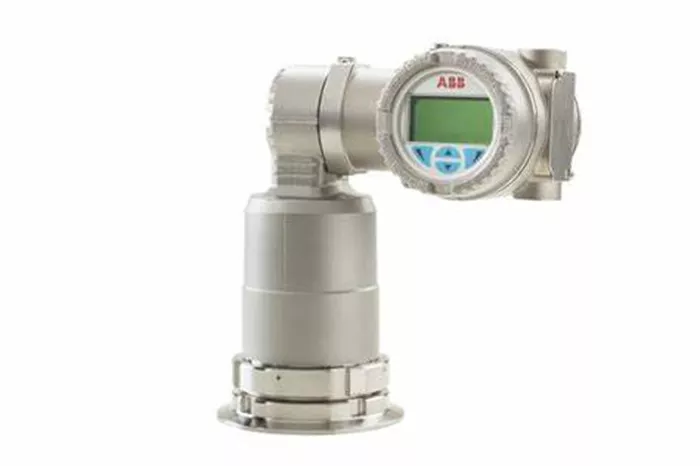

The LLT100 laser measurement device delivers highly accurate readings for both solid and liquid surfaces, even in environments with dust, fog, or explosive hazards. Certified for Class 1/Division 1 (Zone 1) explosion-proof applications, it ensures reliable performance in industries such as oil & gas, chemical processing, and food production.
Fast Installation and User-Friendly Setup
Designed for quick and flexible deployment, the LLT100 features two-wire power and HART communications, simplifying integration into existing systems. Its intuitive setup functions reduce installation time, while the integral, through-the-glass user interface allows for direct configuration on the unit.
Versatile Accessories for Enhanced Performance
The LLT100 offers a range of specialized accessories to optimize operation in various conditions:
- Dust tube to protect against dirt and liquid splashes
- Cooling tube for high-temperature applications (up to 280°C / 535°F)
- Heated window to prevent condensation (requires four-wire power)
- Rotating bracket and swivel flange for precise laser beam alignment
- Laser pointer tool for easy visual reference during setup
- Hygienic tri-clover clamp (4 in.) for sanitary applications
Robust Flange Options for High-Pressure Applications
The device supports multiple flange configurations, including aluminum and stainless-steel universal flanges, compatible with 2 in. ASME150 and DN50 PN 16 standards. For high-pressure environments, options include 2 in. Class 150/300 flanges and DN50 PN16/PN40 flanges, all rated for Class 1/Division 1 (Zone 1) and capable of forming a barrier to Zone 0.
Reliable Performance Under Extreme Conditions
With a maximum pressure rating of 2 bar (29 psi) and explosion-proof certification, the LLT100 is built to withstand demanding industrial environments. Its durable construction and advanced features make it an ideal solution for critical measurement tasks where safety and accuracy are paramount.
