A geothermal generator is a device that converts thermal energy from beneath the Earth’s surface into electrical power. It forms the core of a geothermal power plant, where naturally occurring heat from the Earth’s crust is extracted and used to generate electricity. As the world searches for cleaner alternatives to fossil fuels, geothermal generators have emerged as a reliable and sustainable energy solution.
Geothermal energy is considered both renewable and environmentally friendly. Unlike solar and wind power, which depend on weather and daylight, geothermal energy is available 24/7. This continuous energy source is particularly attractive for regions located near tectonic plate boundaries, volcanic zones, or areas with natural hot springs.
How Geothermal Energy Is Converted into Electricity

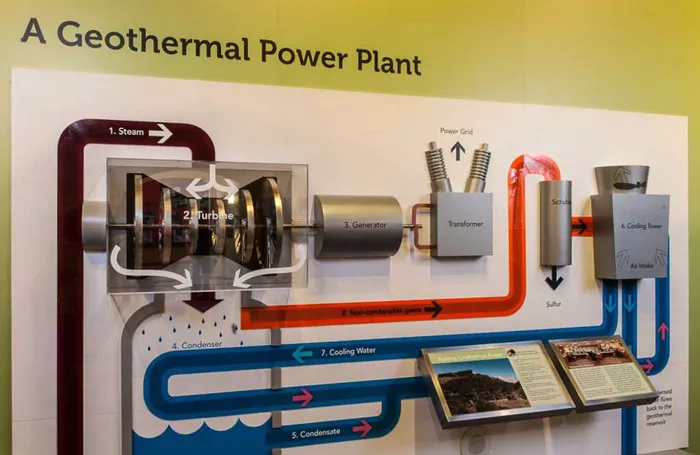

The operation of a geothermal generator is based on a straightforward principle: converting heat into mechanical energy, and then transforming that mechanical energy into electrical power.
Step-by-Step Process:
- Heat Extraction: Wells are drilled deep into the Earth’s crust to access reservoirs of hot water or steam.
- Steam Collection: The hot fluid—either steam or pressurized water—is brought to the surface through production wells.
- Turbine Activation: The steam pressure is used to spin a turbine, which is connected to a generator.
- Electricity Generation: As the turbine blades turn, they drive the generator, which produces electrical energy.
- Condensation and Re-injection: After the steam passes through the turbine, it is cooled, condensed back into water, and then injected back underground to sustain the reservoir.
This closed-loop system ensures that geothermal energy production remains sustainable over the long term.
Types of Geothermal Power Plants
There are three primary types of geothermal power plants, each suited to specific geological conditions.
1. Dry Steam Plants
Dry steam plants are the simplest and oldest form of geothermal power generation. They draw steam directly from underground reservoirs and channel it into a turbine. The Geysers in California, USA, represent the largest operational dry steam field in the world.
Key Characteristics:
- Require natural underground steam.
- Simple design with fewer mechanical components.
- Limited to specific geothermal fields with dry steam.
2. Flash Steam Plants
Flash steam plants are the most common type of geothermal facility today. They use high-pressure hot water from underground (typically above 180°C or 356°F). When the water reaches the surface and enters a low-pressure tank, it rapidly vaporizes or “flashes” into steam.
How It Works:
- High-pressure hot water is extracted.
- Sudden pressure drop causes water to flash into steam.
- Steam drives the turbine; remaining liquid can undergo a second flash or be re-injected.
3. Binary Cycle Plants
Binary cycle plants are designed for regions where underground temperatures are moderate (100–200°C). Instead of using steam directly from the Earth, they transfer heat to a secondary liquid with a lower boiling point, such as isobutane or pentane. This secondary fluid vaporizes and drives the turbine.
Advantages:
- Can be used in more locations due to lower temperature requirements.
- Closed-loop system reduces emissions.
- Often more efficient in terms of environmental impact.
Core Components of a Geothermal Generator System
A geothermal power system comprises several critical components that work together to produce electricity.
1. Production Wells
These wells are drilled to access geothermal reservoirs located several kilometers beneath the surface.
2. Heat Exchangers
Primarily used in binary cycle plants, heat exchangers transfer thermal energy from the geothermal fluid to the working fluid without mixing the two.
3. Turbines
The turbine converts steam pressure into rotational energy. It is the mechanical heart of the system.
4. Generator
Connected to the turbine shaft, the generator converts rotational energy into electricity through electromagnetic induction.
5. Cooling Towers or Condensers
These structures condense steam back into water after it exits the turbine. Efficient cooling is vital to maintain the system’s performance.
6. Injection Wells
These return cooled geothermal fluid back into the Earth, maintaining reservoir pressure and promoting long-term sustainability.
Global Deployment of Geothermal Generators
Geothermal energy plays a significant role in the energy strategies of several countries. Here are some key examples:
- United States: The leading country in installed geothermal capacity, especially in states like California, Nevada, and Utah.
- Iceland: Almost 90% of Icelandic homes use geothermal heating, with a significant portion of electricity also coming from geothermal sources.
- Philippines: Ranks among the top geothermal power producers globally, relying heavily on volcanic activity.
- Indonesia: Has one of the largest untapped geothermal reserves in the world.
- Kenya: A leader in Africa, Kenya produces a substantial portion of its electricity using geothermal generators.
Benefits of Geothermal Generators
Geothermal generators offer several advantages over traditional and even other renewable energy sources.
1. Renewable and Reliable
Unlike solar or wind energy, geothermal power is not affected by weather or time of day. This makes it an ideal baseload power source.
2. Low Emissions
Geothermal power plants emit minimal greenhouse gases compared to fossil fuel plants. Binary plants, in particular, release no emissions.
3. Small Land Footprint
Geothermal installations require less space than solar or wind farms. A compact site can generate significant power.
4. Stable Energy Prices
Because geothermal energy doesn’t depend on fuel markets, it offers more stable and predictable pricing over the long term.
5. Long Operational Life
Geothermal plants often operate for 20–30 years with proper maintenance and reinjection strategies.
Challenges and Limitations
Despite its many benefits, geothermal energy has some limitations.
1. Site Specificity
Geothermal resources are not evenly distributed. Suitable sites are generally located near tectonic plate boundaries or volcanic regions.
2. High Upfront Costs
The cost of drilling and site exploration is substantial. However, operating costs are relatively low, resulting in long-term savings.
3. Environmental Concerns
Although cleaner than fossil fuels, geothermal development may lead to surface disturbance, induced seismicity, and water use issues.
4. Corrosion and Scaling
Geothermal fluids can be highly corrosive and carry dissolved minerals, which may lead to scaling in pipes and heat exchangers.
Emerging Technologies and Innovations
The geothermal industry continues to evolve with technological advancements aimed at overcoming its current challenges.
1. Enhanced Geothermal Systems (EGS)
EGS allows power production in areas without naturally occurring geothermal reservoirs. It involves injecting water into hot dry rock to create a man-made reservoir.
2. Hybrid Systems
Some geothermal plants are being paired with solar or biomass energy systems to improve efficiency and sustainability.
3. Modular and Mobile Generators
Smaller-scale geothermal generators are being developed for localized energy needs, especially in remote or off-grid areas.
4. Residential Heat Pumps
Although not used for electricity generation, ground-source heat pumps use shallow geothermal energy for heating and cooling homes. This represents another avenue for tapping into Earth’s thermal resources.
Environmental Impact of Geothermal Power
In terms of environmental sustainability, geothermal generators rank among the cleanest energy technologies. Their primary environmental considerations include:
- Minimal Air Emissions: Especially in binary systems.
- Water Usage: Large volumes of water are needed, but reinjection helps reduce waste.
- Land Use: Small compared to wind or solar farms.
- Seismic Activity: Induced earthquakes are rare but possible with deep well drilling.
With careful planning, these impacts can be effectively managed.
Comparison with Other Power Generation Methods
| Power Source | Renewable | Emissions | Cost Over Time | Land Use | Reliability |
|---|---|---|---|---|---|
| Geothermal | Yes | Low | Low | Low | High |
| Coal | No | High | High | Medium | High |
| Natural Gas | No | Medium | Medium | Medium | High |
| Solar | Yes | None | Low | High | Low |
| Wind | Yes | None | Low | High | Medium |
| Nuclear | No | Low | Medium | Medium | High |
Geothermal generators clearly stand out as a clean and reliable energy source, particularly in regions with suitable geology.
Role of Geothermal Generators in Modern Energy Infrastructure
As the global energy landscape shifts toward sustainability, geothermal power has found a critical place among renewable sources. Its ability to provide consistent, baseload electricity makes it a strong complement to intermittent sources like solar and wind.
Additionally, geothermal facilities contribute to energy independence, job creation, and local economic development. Many energy companies are now investing in geothermal technologies alongside other electrical equipment and generator systems to meet growing demand.
Conclusion
Geothermal generators offer a powerful way to convert Earth’s natural heat into clean, sustainable electricity. They provide a reliable, low-emission energy source that can operate continuously, unlike many other renewable options. Although the technology is location-dependent and involves high upfront investment, the long-term benefits are significant.
As innovation continues to drive down costs and expand access, geothermal energy will likely play an increasingly vital role in the global energy mix. Whether through large-scale power plants or smaller residential systems, geothermal generators represent a promising path toward a more sustainable and energy-secure future.
