Electrical equipment faces varying degrees of vulnerability when exposed to moisture, with potential consequences ranging from temporary malfunction to catastrophic failure. The impact of water exposure depends on equipment type, design specifications, and environmental protection measures implemented during manufacturing. Transformers, as critical power distribution components, demonstrate particularly complex relationships with moisture that require careful consideration in both installation and operation.
Industry standards classify electrical equipment according to ingress protection (IP) ratings that precisely define permissible exposure levels. These ratings consider not only liquid water contact but also humidity, condensation, and pressurized spray conditions. Proper understanding of these classifications helps determine appropriate equipment deployment in environments where moisture exposure may occur.
Ingress Protection Rating System
The IP code system provides a standardized method for defining electrical equipment resistance to solids and liquids. The second digit in this rating specifically addresses liquid protection, with common classifications including IPX4 for splash resistance up to IPX8 for continuous submersion capability. High-voltage equipment like transformers typically carries IP ratings between IP44 and IP65 depending on installation environment and cooling method.
Transformer-Specific Moisture Considerations
Power transformers present unique challenges since their insulation systems rely on carefully controlled moisture levels. While exterior surfaces may withstand rain exposure, internal components demand precise humidity management to prevent dielectric strength degradation. This dichotomy explains why outdoor transformers feature weatherproof enclosures while maintaining strict internal dryness requirements.
Effects of Water on Different Equipment Types
Water exposure consequences vary dramatically across electrical equipment categories, with some devices tolerating brief moisture contact while others risk immediate failure. Low-voltage control equipment often survives minor splashes if properly dried before re-energization, whereas medium-voltage switchgear may experience catastrophic arcing from similar exposure. Understanding these differences proves critical for proper equipment selection and emergency response procedures.
Rotating equipment like motors and generators demonstrate particular sensitivity to water intrusion due to bearing lubrication contamination and winding insulation damage. Electronic components face additional risks from corrosion and mineral deposit formation even after apparent drying. These varied responses necessitate customized protection strategies for different equipment classes within electrical systems.
Insulation System Vulnerabilities
Electrical insulation materials degrade differently when wet, with cellulose-based systems absorbing moisture while polymer insulators may experience surface tracking. Transformer oil undergoes chemical changes when water dissolves into it, reducing dielectric strength and accelerating paper insulation aging. These processes often occur invisibly until equipment fails under electrical stress.
Corrosion and Contact Deterioration
Metallic components in electrical equipment suffer accelerated corrosion when exposed to moisture, particularly in coastal or industrial environments. Busbar connections, winding terminations, and structural supports all develop increased resistance from oxide formation, creating hot spots that further degrade performance. This progressive damage often escapes notice until thermal imaging reveals abnormal heating patterns.
Protection Methods and Design Solutions
Electrical equipment manufacturers employ multiple strategies to mitigate water damage risks, combining physical barriers, material selection, and system design approaches. Outdoor-rated equipment typically features sloped surfaces, gasketed enclosures, and corrosion-resistant coatings that collectively prevent moisture ingress. These protections become increasingly robust for equipment installed in flood-prone areas or harsh weather environments.
Transformer designs illustrate comprehensive moisture protection through conservator tanks, breather systems, and specialized coatings. Liquid-filled units use barrier systems to separate internal dielectric fluid from external humidity, while dry-type transformers incorporate encapsulation and surface treatments that repel water. These solutions allow safe operation in environments where equipment surfaces regularly encounter precipitation or condensation.
Enclosure Design Strategies
Electrical enclosures employ overlapping seams, drip edges, and ventilated designs that exclude water while preventing condensation accumulation. High-quality gaskets maintain seals across temperature fluctuations, and drain ports allow accidental water entry to escape without contacting live components. These features collectively meet IP rating requirements while accommodating thermal management needs.
Material Selection Considerations
Moisture-resistant materials like stainless steel, marine-grade aluminum, and hydrophobic polymers dominate outdoor electrical equipment construction. Insulation systems incorporate moisture barriers and self-healing properties where possible, while contact surfaces use platings or alloys that resist oxide formation. These material choices significantly extend equipment lifespan in damp environments.
Emergency Response to Water Exposure
Proper procedures following water contact can mean the difference between equipment salvage and total loss. Immediate actions focus on preventing energization of wet equipment while facilitating safe drying processes. The complexity of these procedures increases with voltage levels, requiring specialized approaches for different equipment classes and moisture exposure scenarios.
Large power equipment like transformers demands particular caution, as trapped moisture can cause internal explosions if energized prematurely. Professional assessment including insulation resistance testing, dissolved gas analysis, and thermographic inspection typically precedes any return-to-service decision for major water-exposed assets. These protocols help avoid catastrophic failures that could disrupt entire power networks.
Initial Response Protocol

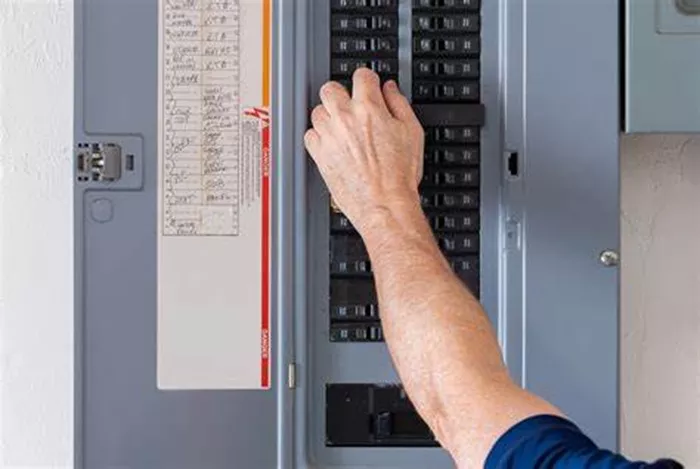

Secure power sources and verify de-energization before approaching wet electrical equipment. Document the exposure circumstances including water source, duration, and contamination potential. Prevent further water ingress while avoiding contact with potentially energized components. These initial steps create conditions for safe assessment and recovery efforts.
Drying and Testing Procedures
Controlled drying processes vary by equipment type, with forced-air circulation suitable for some components while others require vacuum drying or oil processing. Insulation resistance measurements track drying progress, with comparative readings between phases indicating uneven moisture distribution. Final acceptance testing should verify all protective functions before considering re-energization.
Special Considerations for Transformers
Power transformers require exceptional care regarding moisture due to their complex insulation systems and critical grid roles. Water exposure risks extend beyond immediate failure to include accelerated aging and reduced overload capacity. These long-term effects make moisture control a priority throughout transformer lifecycle management from factory testing through field service.
Modern monitoring systems help detect moisture issues before they cause failures, measuring water content in oil, humidity in gas spaces, and insulation dielectric response. These technologies complement traditional maintenance practices like regular oil sampling and visual inspections. Together they form a comprehensive defense against moisture-related transformer problems.
Oil Preservation Systems
Transformer conservators, breathers, and nitrogen blanketing systems collectively maintain oil dryness by limiting atmospheric moisture exchange. Silica gel breathers change color to indicate saturation, while advanced membrane systems provide more consistent protection. These features require regular maintenance to ensure continued effectiveness throughout equipment service life.
Moisture Measurement Techniques
Karl Fischer titration remains the gold standard for measuring water content in transformer oil, though newer dielectric response methods offer non-invasive alternatives. Online monitoring systems track trends that may indicate developing moisture problems, allowing proactive intervention before serious damage occurs.
Future Trends in Moisture Protection
Advancing materials science and monitoring technologies continue improving electrical equipment resistance to water exposure. Nanocoatings that repel liquids more effectively, self-healing insulation systems, and intelligent humidity control systems all show promise for next-generation designs. These innovations may eventually allow electrical equipment to safely operate in environments currently considered too hazardous for reliable performance.
Digital twin technology enables virtual modeling of moisture effects on specific equipment, helping predict failure risks and optimize maintenance schedules. When combined with real-time moisture sensors, these systems could revolutionize how the industry manages water exposure risks across all electrical infrastructure categories.
Smart Monitoring Systems
Emerging sensor networks detect not only moisture presence but also its effects on equipment parameters like partial discharge activity and insulation loss angle. This real-time data enables condition-based maintenance that addresses problems before they cause outages or failures.
Advanced Material Solutions
Graphene-enhanced coatings and hydrophobic nanocomposites promise breakthrough improvements in electrical equipment moisture resistance. These materials may eventually enable safe operation in submerged conditions without traditional hermetic sealing requirements.
Conclusion
Electrical equipment can tolerate varying degrees of moisture exposure depending on design, protection features, and operational parameters. While most modern equipment withstands typical environmental moisture, significant water exposure generally requires careful assessment and remediation before safe operation can resume. Transformers exemplify the complex relationship between electrical systems and water, requiring sophisticated protection methods throughout their service life.
Understanding these principles helps engineers specify appropriate equipment for different environments and develop effective response plans for water exposure incidents. As technology advances, electrical equipment will likely become more resilient to moisture while providing better indicators of water-related damage. These improvements will enhance reliability across power systems while reducing risks associated with operating electrical infrastructure in challenging environments.
