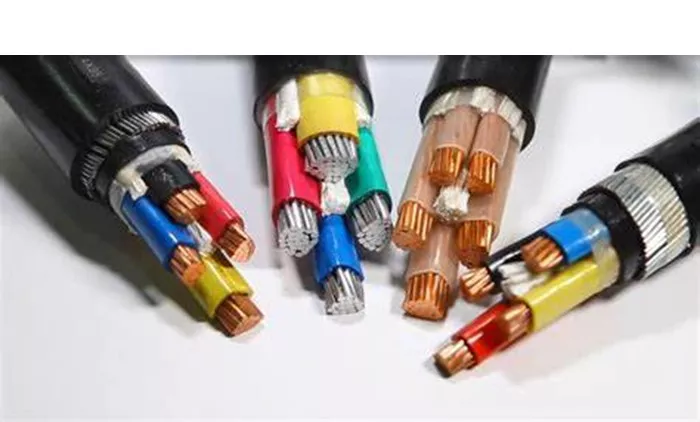

What Is XLPE Wire?

by jingji47

Cross-linked polyethylene (XLPE) wire represents a significant advancement in electrical insulation technology, offering superior performance compared to traditional thermoplastic materials. As an electrical engineer specializing in transformers, I recognize the critical role XLPE insulation plays in modern electrical systems, particularly in high-voltage applications where reliability and durability are paramount. The unique molecular structure of XLPE creates a thermoset material that maintains its properties under extreme conditions, making it ideal for demanding applications ranging from building wiring to underground power transmission.

Transformer manufacturers increasingly utilize XLPE-insulated conductors due to the material’s excellent dielectric strength and thermal stability. The cross-linking process transforms ordinary polyethylene into a three-dimensional polymer network that resists softening at elevated temperatures while maintaining flexibility in cold environments. This balanced performance profile makes XLPE wire suitable for both indoor and outdoor installations where temperature fluctuations could compromise conventional insulation materials.

Advertisements

​​Key Advantages of XLPE Insulation​​

The cross-linking process fundamentally alters polyethylene’s molecular structure, creating a material with enhanced mechanical and electrical properties. These improvements mirror the performance requirements for transformer windings where insulation must withstand electrical stress, thermal cycling, and mechanical vibration. XLPE maintains its shape and dielectric properties at temperatures up to 90°C for continuous operation and can withstand short-term overloads up to 130°C without permanent deformation.

Advertisements

Moisture resistance represents another critical benefit of XLPE insulation, particularly for outdoor and underground applications where water exposure is inevitable. This characteristic parallels the moisture resistance requirements for transformer bushings and external connections that must perform reliably in humid environments. The non-polar nature of polyethylene prevents water molecules from forming conductive paths through the insulation, maintaining electrical integrity even in wet conditions.

Advertisements

Composition and Manufacturing Process

​​Cross-Linking Methods for Polyethylene​​

The manufacturing of XLPE wire involves three primary cross-linking techniques that create permanent molecular bonds between polymer chains. These methods resemble the curing processes used in transformer insulation systems where chemical changes create durable materials. Peroxide cross-linking uses organic peroxides as catalysts that decompose at high temperatures to generate free radicals that initiate cross-linking between polyethylene molecules.

Advertisements

Silane cross-linking employs moisture-curable silane compounds that graft onto polyethylene chains before forming cross-links through hydrolysis. This process resembles some transformer insulation treatments where chemical reactions create stable molecular networks. Electron beam cross-linking exposes polyethylene to high-energy radiation that knocks hydrogen atoms off polymer chains, allowing the formation of carbon-carbon cross-links without chemical additives.

​​Additives and Material Enhancements​​

Modern XLPE formulations incorporate various additives that tailor the material for specific applications and environmental conditions. These enhancements mirror the compound modifications used in transformer insulation systems where performance requirements dictate material composition. Antioxidant packages prevent thermal degradation during processing and extend service life by scavenging free radicals that could initiate insulation breakdown.

Voltage stabilizers improve dielectric strength and reduce treeing phenomena in high-voltage applications, similar to the additives used in transformer oil to prevent partial discharge. Flame retardant additives make XLPE suitable for building wiring by reducing flammability and limiting smoke generation during fire conditions. Colorants provide visual identification of conductors while maintaining the material’s electrical properties.

Electrical Properties and Performance Characteristics

​​Dielectric Strength and Insulation Properties​​

XLPE insulation demonstrates exceptional dielectric strength, typically ranging from 18 to 30 kV/mm depending on formulation and processing conditions. These impressive values parallel the insulation requirements for transformer windings where high electric field stresses must be managed safely. The material’s volume resistivity exceeds 10¹⁶ ohm-cm, preventing leakage currents that could degrade performance or create safety hazards.

Partial discharge resistance makes XLPE particularly valuable for medium and high-voltage applications where corona effects could damage inferior insulation. This performance characteristic resembles the partial discharge requirements for transformer insulation systems where localized discharges can initiate insulation failure. The cross-linked structure creates a homogeneous material with few microscopic voids that could concentrate electric fields.

​​Thermal Performance and Current Carrying Capacity​​

The thermal stability of XLPE allows for higher continuous operating temperatures compared to standard PVC insulation. This advantage mirrors the thermal performance requirements for transformer conductors where heat buildup affects overall efficiency and lifespan. XLPE-insulated conductors typically carry 20-30% more current than equivalent PVC-insulated wires at similar temperature rises due to better heat dissipation properties.

Thermal aging resistance ensures long-term performance by maintaining mechanical and electrical properties throughout decades of service. This durability parallels the longevity requirements for transformer insulation systems where replacement costs justify premium materials. Accelerated aging tests demonstrate that properly formulated XLPE can maintain essential properties for 30-40 years under normal operating conditions.

Applications in Electrical Systems

​​Building Wiring and Power Distribution​​

XLPE-insulated cables have become standard for commercial and industrial power distribution systems where reliability and compact design are priorities. These applications resemble the winding insulation requirements for dry-type transformers where space constraints and thermal management influence material selection. The reduced insulation thickness possible with XLPE allows for higher conductor fill in raceways and conduit systems while maintaining safety margins.

Modern building codes increasingly recognize XLPE as an acceptable alternative to traditional thermoplastic insulation for branch circuit wiring. This acceptance parallels the growing use of XLPE in transformer manufacturing where performance advantages outweigh initial material costs. The combination of flexibility, durability, and thermal performance makes XLPE suitable for challenging installations where conventional materials might fail prematurely.

​​Underground and Submarine Power Cables​​

High-voltage XLPE-insulated cables have largely replaced paper-insulated lead-covered cables for underground power transmission. This transition mirrors the evolution in transformer insulation systems where modern materials offer superior performance with reduced maintenance requirements. The moisture-resistant properties of XLPE make it ideal for direct-buried applications where waterproofing is essential for reliable operation.

Submarine power cables benefit from XLPE’s resistance to water treeing and hydrolysis that could degrade conventional insulation in underwater environments. These demanding applications resemble the challenges faced by transformer connections in coastal installations where saltwater exposure accelerates material degradation. Multilayer XLPE constructions with metallic moisture barriers provide long-term reliability in these critical infrastructure projects.

Comparison with Alternative Insulation Materials

​​XLPE vs PVC Insulation​​

The comparison between XLPE and traditional PVC insulation reveals significant advantages for cross-linked polyethylene in most electrical applications. These differences parallel the performance gaps between modern and traditional transformer insulation systems. XLPE maintains superior thermal stability, with a maximum operating temperature of 90°C compared to PVC’s 60-75°C limit, allowing for higher current carrying capacity in similar conductor sizes.

Mechanical strength under elevated temperatures gives XLPE an advantage in applications where conductors may experience temporary overload conditions. This performance characteristic resembles the overload capacity requirements for transformer insulation where temporary excess currents must not cause permanent damage. XLPE retains its shape and dielectric properties at temperatures that would cause PVC to soften and deform.

​​XLPE vs EPR and Other Elastomeric Insulations​​

Ethylene propylene rubber (EPR) insulations offer some advantages in extreme flexibility applications but generally can’t match XLPE’s combination of properties. These material comparisons mirror the trade-offs considered when selecting transformer insulation systems where multiple factors influence final material selection. XLPE typically demonstrates better cut-through resistance and higher dielectric strength than EPR, making it preferable for most power distribution applications.

The aging characteristics of XLPE generally surpass those of elastomeric materials, particularly in continuous high-temperature service. This durability advantage parallels the long service life expectations for transformer insulation where premature failure carries significant consequences. While EPR may be preferred for some extremely flexible applications, XLPE offers better overall value for most fixed wiring installations.

Installation Considerations and Best Practices

​​Handling and Termination Techniques​​

Proper handling of XLPE-insulated cables preserves the material’s inherent performance advantages throughout the installation process. These handling requirements resemble the care taken with transformer windings where insulation damage can compromise entire systems. Although XLPE is more resistant to cutting and abrasion than thermoplastic materials, installers should still avoid sharp bends and use proper pulling techniques to prevent insulation stress.

Termination of XLPE cables requires attention to detail to maintain the insulation system’s integrity at connection points. These termination practices parallel the meticulous connection methods used in transformer manufacturing where electrical and mechanical performance are equally important. Proper stripping tools should be used to avoid nicking conductors, and termination compounds may be required in high-voltage applications to prevent surface tracking.

​​Temperature Considerations During Installation​​

The minimum installation temperature for XLPE-insulated cables typically falls around -15°C to prevent insulation damage during handling. This limitation resembles the temperature constraints observed when working with transformer insulation systems where cold materials become brittle. In cold weather installations, cables may need preconditioning in heated spaces or the use of cable warmers to achieve sufficient flexibility for proper installation.

Maximum pulling tensions should be calculated based on conductor size and insulation type to prevent permanent deformation of the cable structure. These mechanical limits parallel the winding tension considerations in transformer manufacturing where conductor stress affects final performance. Proper lubrication reduces friction during conduit pulls, allowing installers to stay within recommended tension guidelines while placing XLPE-insulated cables.

Conclusion

XLPE wire has revolutionized electrical insulation systems by combining superior performance characteristics with remarkable durability, establishing itself as a cornerstone of modern power distribution networks. The cross-linking process that defines this technology creates a material with exceptional thermal stability, mechanical strength, and electrical properties that outperform conventional insulation materials in nearly every application. These advantages mirror the evolving requirements of transformer insulation systems, where the demand for higher efficiency and greater reliability continues to drive material innovation.

Future developments in XLPE technology promise even greater performance enhancements through nanotechnology and sustainable material science. These advancements will likely follow the same trajectory as transformer insulation innovations, where incremental improvements yield significant benefits in reliability and efficiency. The ongoing evolution of XLPE wire ensures its continued relevance in an electrical landscape that increasingly values smart grid technologies, renewable energy integration, and resilient infrastructure. By combining proven performance with cutting-edge material science, XLPE insulation will remain at the forefront of electrical engineering solutions for decades to come.
