Electrical installations in outdoor conduit systems demand specific wire types that can withstand environmental challenges while maintaining reliable performance. As an electrical engineer specializing in transformers, I recognize important parallels between outdoor conduit wiring and transformer terminal connections, where both must resist moisture, temperature extremes, and physical stresses. The wires running through outdoor conduit face constant exposure to condensation, thermal cycling, and potential water infiltration that indoor wiring never encounters, requiring more robust construction than standard building cables.
Transformer installations frequently use outdoor conduit systems for connecting primary and secondary circuits to equipment, demonstrating how these wiring methods serve critical roles in power distribution. Proper wire selection for outdoor conduit involves understanding insulation properties, conductor materials, and installation techniques that together ensure long-term reliability in exposed locations. The National Electrical Code specifies particular requirements for outdoor conduit wiring that address both electrical safety and environmental protection concerns.
Key Considerations for Outdoor Conduit Wiring
Moisture resistance represents the primary requirement for wires in outdoor conduit, as condensation and occasional water infiltration can occur even in properly installed systems. These moisture protection needs mirror those of transformer bushings and external connections that must maintain insulation integrity despite years of outdoor exposure. The wire insulation must prevent water absorption while withstanding the damp conditions that can develop inside conduit runs over time.
Temperature tolerance constitutes another critical factor, as outdoor conduit systems experience wider temperature variations than indoor installations. These thermal cycling demands resemble the operating conditions faced by outdoor transformers that must function reliably through seasonal temperature extremes. Both applications require wire insulation that won’t crack in freezing weather or degrade prematurely under summer heat.
Recommended Wire Types for Outdoor Conduit
THWN-2 and THHN Conductors
THWN-2 stands as the most commonly specified wire for outdoor conduit installations, combining thermoplastic insulation with nylon jacketing for wet location approval. This dual-rated insulation provides 90°C dry rating and 75°C wet rating, making it suitable for most outdoor applications. The wire’s construction shares similarities with transformer lead insulation where multiple material layers provide both electrical protection and mechanical durability.
THHN wire offers similar performance to THWN-2 in dry conditions but lacks the water-resistant properties required for outdoor conduit unless specifically marked as THWN-2. This distinction mirrors the different insulation classes used in transformer windings where environmental exposure determines material selection. Most modern THHN wire carries dual THWN-2 rating, providing flexibility for both indoor and outdoor conduit use.
XHHW-2 Conductors
XHHW-2 conductors provide superior performance for demanding outdoor conduit applications with cross-linked polyethylene insulation that resists moisture, heat, and chemicals. These enhanced properties make them ideal for industrial environments or locations with higher ambient temperatures. The material characteristics resemble those used in high-temperature transformer windings where advanced insulation systems ensure reliable operation under stress.
The 90°C wet and dry rating of XHHW-2 wire allows for higher ampacity compared to THWN-2 in some applications, similar to how transformer conductors can carry more current with better insulation systems. This wire type maintains flexibility in cold weather better than standard thermoplastic insulation, making it easier to pull through long conduit runs in various climates.
Conductor Materials and Sizing Considerations
Copper vs Aluminum Conductors
Copper conductors remain the preferred choice for most outdoor conduit applications due to their excellent conductivity, corrosion resistance, and ease of termination. These advantages mirror the reasons copper dominates transformer winding designs where reliability and efficiency are paramount. Copper’s natural resistance to oxidation helps maintain connection integrity in outdoor environments where moisture exposure could degrade other materials.
Aluminum conductors serve as a cost-effective alternative for larger feeder circuits in outdoor conduit, particularly when long runs make copper prohibitively expensive. These applications resemble the use of aluminum in large transformer windings where material cost savings justify the larger conductor size required. Aluminum wiring in outdoor conduit requires special termination techniques and antioxidant compounds to prevent connection problems over time.
Proper Wire Sizing and Ampacity Calculations
Correct wire sizing for outdoor conduit installations must account for both current carrying capacity and voltage drop considerations. These calculations parallel the conductor sizing performed for transformer secondaries where proper sizing ensures efficient power delivery. The National Electrical Code provides ampacity tables that serve as starting points, but additional derating factors may apply based on conduit fill, ambient temperature, and installation conditions.
Voltage drop becomes particularly important for longer outdoor conduit runs where distance can significantly affect performance. These considerations resemble the voltage regulation requirements in transformer design where winding resistance impacts output characteristics. Oversizing conductors for critical circuits helps compensate for voltage drop while providing capacity for future load increases.
Conduit Selection and Installation Methods
Choosing Appropriate Conduit Materials
Rigid metal conduit offers maximum protection for exposed outdoor installations where physical damage might occur. These rugged systems resemble the protective enclosures used for transformer connections in industrial environments. Galvanized steel conduit provides excellent corrosion resistance while aluminum conduit offers lighter weight for easier installation.

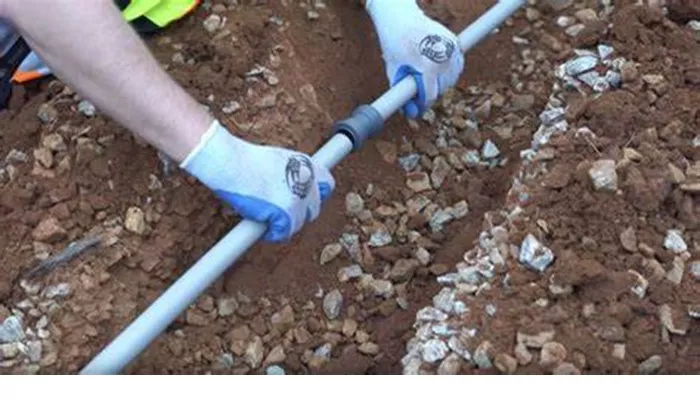

PVC conduit serves as a popular choice for buried outdoor applications where moisture resistance and cost-effectiveness are priorities. These non-metallic systems mirror the corrosion-resistant enclosures used for underground transformer installations. Schedule 40 PVC works for most buried applications while Schedule 80 provides extra wall thickness for areas with potential physical damage.
Proper Conduit Installation Techniques
Outdoor conduit systems require careful planning of expansion fittings and support spacing to accommodate temperature-related movement. These installation considerations parallel the provisions made for transformer connections where thermal cycling can stress rigid systems. Expansion joints should be installed every 20 to 30 feet in straight runs to prevent conduit damage from thermal expansion and contraction.
Proper slope and drainage prevent water accumulation in outdoor conduit runs that could eventually damage wire insulation. These moisture control measures resemble the sealing techniques used in transformer bushings where water infiltration must be prevented. Conduit should slope slightly to drain or include weep holes at low points to allow moisture escape.
Special Applications and Environmental Factors
Corrosive Environment Protection
Industrial or coastal installations may require additional protection against corrosive elements that could degrade conduit or wiring. These challenging environments parallel the conditions faced by transformers in chemical plants or marine applications where special materials are needed. PVC-coated metal conduit or fiberglass systems provide solutions for severely corrosive locations where standard materials would fail prematurely.
Wire selection for corrosive environments should specify insulation materials resistant to local chemical exposures. These specialized requirements resemble the custom insulation systems used in transformers for harsh industrial applications. Consulting manufacturer chemical resistance charts helps ensure proper material selection for specific environmental conditions.
High Temperature Locations
Areas near industrial equipment or in direct sunlight may experience ambient temperatures exceeding standard ratings. These high-temperature conditions mirror the challenges in transformer design where heat management is critical. Wire with higher temperature ratings like XHHW-2 or special high-temperature insulation should be selected for conduit runs in these environments.
Conduit in high-temperature areas should be light-colored or shielded from direct sunlight to minimize heat buildup. These installation techniques resemble the cooling strategies used for outdoor transformer installations where temperature control affects performance. Proper spacing from hot equipment and adequate ventilation help maintain acceptable operating temperatures.
Maintenance and Inspection Best Practices
Periodic System Inspections
Routine visual inspections of outdoor conduit systems help identify potential problems before they cause failures. These maintenance practices mirror the inspection protocols for transformer connections where environmental exposure can accelerate wear. Look for conduit damage, loose fittings, or corrosion that could compromise system integrity over time.
Infrared scans of conduit runs and termination points can reveal developing hot spots caused by loose connections or conductor damage. These diagnostic techniques resemble the thermal imaging used to assess transformer performance where temperature variations indicate potential issues. Preventive identification of problems allows for timely repairs before outages occur.
Moisture Prevention and Control
Regular checks of conduit seals and weep holes help maintain proper moisture control in outdoor systems. These maintenance activities parallel the moisture monitoring performed on transformer bushings where water infiltration must be prevented. Damaged conduit seals should be replaced immediately to prevent water entry that could degrade wire insulation.
Condensation control becomes particularly important in locations with high humidity or temperature variations. These environmental challenges resemble those faced by transformer enclosures where condensation can cause insulation problems. Proper ventilation and drainage provisions help minimize moisture accumulation in conduit systems.
Emerging Technologies and Future Trends
Smart Conduit Systems
Emerging technologies are introducing conduit systems with embedded sensors that monitor wire condition and environmental factors. These smart systems resemble the monitoring capabilities being incorporated into modern transformers that provide real-time performance data. Future conduit may include moisture sensors, temperature probes, and conductor integrity monitors that alert maintenance personnel to developing problems.
Self-drying conduit systems using breathable membranes or desiccant materials represent another area of development. These innovations parallel the advanced sealing techniques being applied to transformer bushings where moisture control is critical. The technologies aim to prevent insulation degradation while reducing maintenance requirements.
Advanced Insulation Materials
New polymer formulations are improving wire insulation performance for outdoor conduit applications. These material advancements resemble the innovations in transformer insulation systems where better materials enhance reliability. Next-generation insulation offers superior moisture resistance, wider temperature tolerance, and longer service life in harsh environments.
Nanocomposite insulation materials are showing promise for extreme outdoor applications where conventional materials reach their limits. These high-performance solutions mirror the cutting-edge materials being tested for transformer windings that push the boundaries of electrical insulation. The new materials may allow for smaller conduit sizes or higher power densities in future installations.
Conclusion
Selecting the proper wire for outdoor conduit requires careful consideration of environmental conditions, electrical requirements, and long-term performance expectations. The parallels between outdoor conduit wiring and transformer connection methods demonstrate consistent engineering principles across different electrical applications. Both systems demand materials and installation techniques that can withstand years of environmental exposure while maintaining electrical safety and reliability.
Modern outdoor conduit systems combine proven wiring methods with advanced materials to create durable power distribution networks. These robust installations mirror the reliable performance of outdoor transformers that must operate continuously despite challenging conditions. Proper wire and conduit selection, combined with quality installation practices, ensures electrical systems will provide safe, uninterrupted service through various weather conditions and seasonal changes.
The ongoing development of new materials and smart technologies promises to enhance outdoor conduit systems in coming years. These innovations parallel advancements in transformer design where monitoring capabilities and improved materials are raising performance standards. Both fields demonstrate how electrical engineering continues to evolve better solutions for the demanding requirements of outdoor power distribution.
