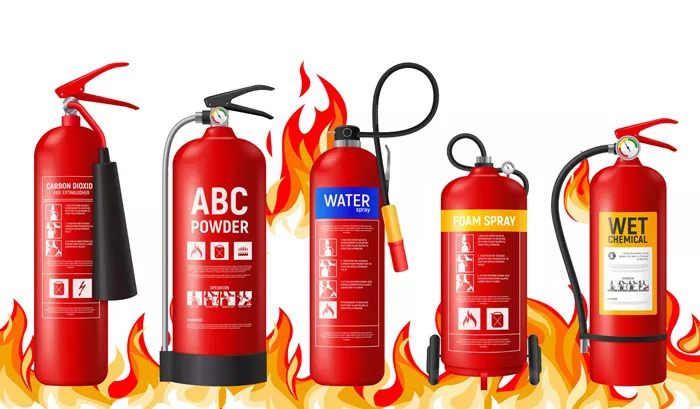

Understanding different fire extinguisher types and their specific uses is essential for electrical safety in industrial settings. As an electrical engineer specializing in transformers, I’ve worked with various extinguishers designed for unique fire risks in power systems. Each extinguisher type has distinct properties that make it suitable for particular fire classes while posing limitations for others.
Transformer facilities require careful extinguisher selection because electrical equipment presents multiple fire hazards. The combination of energized components, insulating oils, and high temperatures demands specialized fire protection knowledge. This guide explains each extinguisher type’s purpose with specific examples from transformer applications to help professionals make informed safety decisions.
Fire Classification Basics
Fires are categorized into classes based on their fuel source, which determines appropriate extinguishing methods. Electrical fires were traditionally Class C, though modern standards often classify them by their primary fuel instead. Transformer facilities typically deal with fires involving electrical equipment, flammable liquids, and ordinary combustibles that each require different extinguisher types.
The extinguisher selection must consider both the immediate fire risk and potential damage to sensitive equipment. Some agents that effectively suppress fires might cause secondary harm to electrical components, making proper choice critical for both safety and equipment protection.
Water-Based Extinguishers
Class A Fire Protection
Water extinguishers work best on ordinary combustibles like wood, paper, and fabric that characterize Class A fires. The water cools burning materials below their ignition temperature while soaking surrounding fuel to prevent spread. These extinguishers are common in office areas and storage spaces within transformer facilities.
The major limitation for electrical environments comes from water’s conductivity, making it dangerous for energized equipment. Even after power shutdown, water can damage transformer components and create long-term reliability issues. These extinguishers should never be used near live electrical equipment or oil-filled transformers.
Transformer Facility Applications
In transformer installations, water extinguishers might be appropriate for administrative areas or material storage spaces separate from electrical equipment. Their use should be strictly limited to locations where no electrical hazards exist and only ordinary combustibles are present. Proper placement ensures they won’t be mistakenly used on electrical or chemical fires.
Facilities must clearly mark water extinguishers and provide training on their limitations near electrical equipment. The consequences of improper use on transformer fires could be catastrophic, including equipment destruction and personnel injury from electrical arcs or steam explosions.
Carbon Dioxide (CO₂) Extinguishers
Electrical and Flammable Liquid Fires
CO₂ extinguishers are ideal for electrical fires and flammable liquid fires common in transformer facilities. The cold discharge smothers flames by displacing oxygen while leaving no residue that could damage equipment. The non-conductive gas works safely on energized electrical systems up to specified voltage ratings.
These extinguishers work particularly well in control rooms and near sensitive electronics where cleanup after discharge must be minimized. The rapid knockdown of electrical arcs helps prevent costly damage to transformer monitoring and protection systems. Their clean operation allows faster return to service after incidents.
Application Techniques
Proper CO₂ use requires understanding its limitations in confined spaces. The heavy gas can create oxygen-deficient atmospheres dangerous for personnel, requiring adequate ventilation after use. The extremely cold discharge (-109°F/-78°C) can also cause thermal shock to some materials if applied too closely.
Transformer facilities should position CO₂ units near electrical panels and control equipment while ensuring proper clearance for safe access. Training must emphasize the brief discharge duration and need to approach fires cautiously from upwind positions. These techniques maximize effectiveness while minimizing risks.
Dry Chemical Extinguishers
Multipurpose ABC Protection
Dry chemical extinguishers containing monoammonium phosphate handle Class A, B, and C fires, making them versatile for many industrial applications. The powder interrupts chemical reactions while coating fuels to prevent reignition. This broad capability comes with tradeoffs including messy residue and potential equipment damage.
In transformer facilities, these extinguishers serve well as general-purpose units for areas with mixed hazards. Their ability to handle both electrical fires and flammable liquids (like transformer oil) provides valuable flexibility. The powder can penetrate equipment enclosures to reach fires in confined spaces where they might start.
Cleanup and Corrosion Concerns
The powder residue requires thorough cleaning after use as it can be mildly corrosive to electrical contacts and moving parts. Transformer facilities must account for this when placing dry chemical units near sensitive equipment. The cleanup process often involves specialized vacuum systems to completely remove powder from electrical components.
Regular inspection ensures powder hasn’t compacted inside the extinguisher, which could impair discharge when needed. Facilities in humid environments should pay particular attention to moisture absorption that can degrade powder performance over time. Proper maintenance preserves reliability despite harsh industrial conditions.
Wet Chemical Extinguishers
Specialized Kitchen Protection
Wet chemical extinguishers are designed specifically for commercial kitchen fires involving cooking oils and fats (Class K). The agent creates a soapy foam that cools burning oil while preventing splashing and reignition. While not typically used in transformer facilities, they might appear in site kitchens or cafeterias.
The specialized formulation differs significantly from other extinguisher types, making proper training essential. Personnel should understand these units are inappropriate for electrical or ordinary combustible fires despite their “wet” appearance. Clear labeling prevents confusion with water extinguishers in emergency situations.
Facility Considerations
For transformer sites with food service areas, wet chemical extinguishers should be placed conspicuously near cooking equipment but separated from electrical fire protection. Their unique application requirements justify dedicated training for kitchen staff while general facility personnel should at least recognize their specialized purpose.
Maintenance follows manufacturer guidelines specific to the chemical formulation, typically involving more frequent inspection than standard units. The liquid agent can settle or separate, requiring periodic agitation to maintain effectiveness. Professional servicing ensures proper operation when needed.
Clean Agent Extinguishers
Sensitive Electronics Protection
Clean agent extinguishers use gases like FM-200 or Novec 1230 that suppress fires without residue or damage to equipment. These systems are ideal for protecting sensitive electronics, control rooms, and areas where downtime must be minimized. The rapid discharge knocks down flames while being safe for occupied spaces.
Transformer control rooms and relay panels often use clean agent systems for comprehensive protection without collateral damage. The agents work by heat absorption and chemical interference with the combustion process, similar to halon systems they replaced. Their design allows effective concentration while maintaining breathable atmospheres.
System Design Factors
Fixed clean agent systems require careful engineering to achieve proper concentration in protected spaces. The enclosure integrity affects performance, necessitating automatic door closers and sealed penetrations. Transformer facilities must balance protection needs with practical access requirements during normal operations.
Regular inspection verifies nozzle clearance, detector functionality, and agent quantity. The systems typically include pre-discharge alarms allowing safe evacuation before suppression begins. These integrated safety features prevent accidental exposure while ensuring rapid fire control when needed.
Foam Extinguishers
Flammable Liquid Fire Control
Foam extinguishers create a blanketing layer that smothers flammable liquid fires while preventing vapor release. The foam solution is particularly effective for large surface area fires involving hydrocarbons like transformer oil. The expanded foam coverage helps contain spills and prevents reignition better than dry chemical alternatives.
Transformer facilities with significant oil-filled equipment might use foam extinguishers in areas where large spills could occur. The units work best when paired with proper containment systems that prevent foam runoff from spreading contamination. Application techniques differ from other extinguisher types, requiring specific training.
Equipment Compatibility
The conductive nature of foam makes it inappropriate for energized electrical equipment unless specially formulated. Facilities must ensure personnel understand foam should only be used on de-energized systems or from safe distances. The residue requires cleanup that can interfere with equipment operation if not properly managed.
Regular maintenance checks concentrate levels and ensure proper mixing mechanisms function correctly. Foam extinguishers typically have shorter service intervals than other types due to the potential for solution degradation or component corrosion. Professional servicing maintains reliability for critical applications.
Conclusion
Proper fire extinguisher selection requires understanding both the potential fuel sources and equipment vulnerabilities in each area. Transformer facilities benefit from a balanced approach combining different extinguisher types to address all likely fire scenarios. Electrical areas need non-conductive agents like CO₂ or clean gas systems, while flammable liquid zones may require foam or dry chemical units.
Regular training ensures personnel can quickly identify and properly use the correct extinguisher during emergencies. Maintenance programs must account for each extinguisher type’s unique requirements to guarantee reliability. By applying this systematic approach, facilities can achieve comprehensive fire protection that safeguards both personnel and critical electrical equipment.
The relatively small investment in proper extinguisher selection and training pays substantial dividends through improved safety and reduced equipment damage. Transformer facilities in particular benefit from tailored fire protection strategies that account for their unique combination of electrical, chemical, and ordinary fire hazards. A well-planned system provides confidence that appropriate suppression will be available when needed most.
