What Are the Different Types of Portable Fire Extinguishers?

by jingji47

Portable fire extinguishers serve as first-line defense against various fire hazards in industrial and electrical environments. As an electrical engineer specializing in power transformers, I understand how critical proper extinguisher selection is for protecting valuable equipment and ensuring personnel safety. These portable units come in several distinct types, each designed to combat specific fire classes effectively while maintaining safety for operators and equipment.

The different extinguisher types contain specialized agents formulated for particular fire hazards, from electrical equipment fires to flammable liquid incidents. Transformer installations present unique challenges as they combine multiple fire risks including energized electrical components, insulating oils, and structural materials. Understanding portable extinguisher capabilities and limitations helps create effective fire protection strategies for these complex environments.

Advertisements

​​Fire Classification Fundamentals​​

Fire safety standards categorize fires based on their fuel source to guide proper extinguisher selection. Class A involves ordinary combustibles like wood and paper while Class B covers flammable liquids including transformer oil. Class C designates energized electrical equipment fires, Class D applies to combustible metals, and Class K addresses commercial kitchen grease fires. These classifications help match extinguisher capabilities to specific facility hazards.

Advertisements

Transformer facilities typically require protection against Class B (oil) and Class C (electrical) hazards, along with potential Class A risks in surrounding areas. The presence of both energized equipment and flammable liquids creates scenarios that demand careful extinguisher selection to prevent dangerous cross-application mistakes during emergencies.

Advertisements

Water-Based Extinguishers

​​Class A Fire Suppression Capabilities​​

Water extinguishers provide the most economical and effective solution for fires involving ordinary combustible materials. These portable units work primarily through heat absorption, cooling burning materials below their ignition temperature. The water stream penetrates deep into burning materials to extinguish fires completely rather than just suppressing surface flames that might reignite.

Advertisements

In transformer facilities, water extinguishers should be restricted to office areas, storage rooms, and other locations containing only Class A materials. They must never be used on electrical equipment or oil fires where water would create significant hazards. Proper zoning ensures water extinguishers are placed far enough from electrical equipment to prevent accidental misuse during emergencies.

​​Important Safety Limitations​​

Water extinguishers present serious dangers when used improperly on electrical or liquid fuel fires. The conductivity of water makes it extremely hazardous for energized equipment while its tendency to spread burning liquids worsens oil fires. Facilities must clearly mark water extinguishers with warnings about prohibited uses and provide alternative extinguishers near electrical and oil hazards.

Transformer installations should implement physical separation between water extinguishers and electrical equipment areas. Training programs must emphasize that water should never be used on transformer oil fires, even after de-energization, as specialized foam extinguishers provide much safer and more effective oil fire suppression.

Foam Extinguishers

​​Flammable Liquid Fire Protection​​

Foam extinguishers offer superior protection for Class B fires involving flammable liquids like transformer oil, gasoline, and solvents. The foam blanket works by smothering flames while preventing vapor release, creating a more effective solution than water for hydrocarbon fires. Special alcohol-resistant formulations handle polar solvents while standard foam works well for ordinary oils and fuels.

Transformer facilities typically deploy foam extinguishers near oil storage areas and de-energized equipment. These portable units must be clearly marked for use only after electrical isolation to prevent dangerous conductivity hazards. The extinguishers feature special applicator nozzles designed to gently blanket burning liquids without causing dangerous splashing.

​​Proper Application Techniques​​

Effective foam extinguisher use requires specific techniques to maximize performance while minimizing risks. Operators should apply foam by banking it off nearby surfaces rather than spraying directly into burning liquid. This approach prevents splashing while allowing the foam blanket to spread evenly across the fire surface for complete coverage.

Training programs must emphasize that foam extinguishers should never be used on energized electrical equipment despite their effectiveness on oil fires. Facilities should conduct regular drills simulating transformer oil fire scenarios to reinforce proper foam application methods and safety protocols for de-energized equipment.

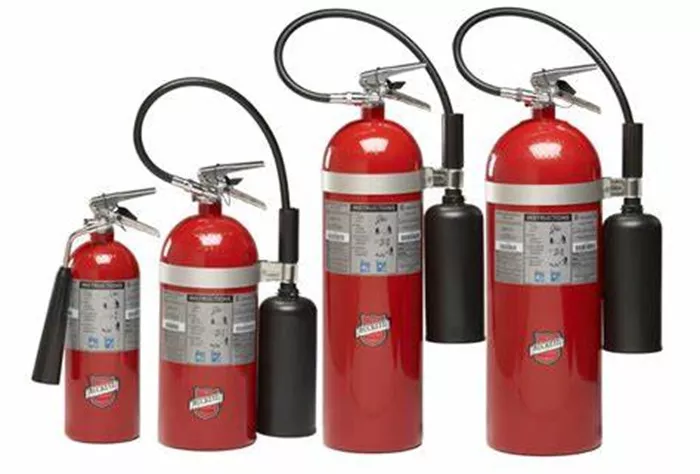

Carbon Dioxide (CO₂) Extinguishers

​​Energized Electrical Equipment Protection​​

CO₂ extinguishers represent the preferred portable solution for Class C fires involving energized electrical equipment due to their non-conductive properties and clean operation. The extremely cold discharge rapidly knocks down flames while the heavy gas displaces oxygen to prevent reignition. These extinguishers leave no residue that could damage sensitive electronics or complicate post-fire inspections.

In transformer applications, CO₂ extinguishers provide safe protection for control panels, switchgear, and other energized components. Their ability to penetrate into equipment enclosures makes them particularly effective for electrical arc incidents while the lack of residue allows faster restoration of service compared to powder-based alternatives.

​​Important Safety Considerations​​

While CO₂ extinguishers are extremely effective for electrical fires, they present specific safety concerns that require attention. The intense cold discharge can cause frostbite if mishandled while the oxygen displacement creates asphyxiation risks in confined spaces. Facilities must provide proper training on safe handling techniques and ventilation requirements after discharge.

Transformer control rooms using CO₂ extinguishers should install oxygen monitoring systems and emergency ventilation to address potential asphyxiation hazards. Clear signage should indicate the need to evacuate after discharge in confined areas until proper air quality is restored through ventilation systems.

Dry Chemical Extinguishers

​​Multipurpose Fire Protection Capabilities​​

Dry chemical extinguishers offer versatile portable protection suitable for Class A, B, and C fires, making them popular for general industrial use. These units typically contain monoammonium phosphate or sodium bicarbonate powders that interrupt chemical reactions while smothering flames. The non-conductive properties make them safe for electrical equipment when properly applied.

In transformer facilities, dry chemical extinguishers serve well in areas where multiple fire risks exist together. Their ability to handle both electrical and ordinary combustible fires makes them suitable for transition zones between electrical equipment and structural areas. However, they should not replace specialized extinguishers in high-risk locations.

​​Post-Fire Cleanup Requirements​​

Dry chemical extinguishers leave substantial residues that require thorough cleaning after use. The powder can infiltrate equipment and affect insulation resistance measurements, potentially delaying restoration of service. Facilities must establish proper cleanup procedures that address both fire residue removal and potential equipment damage assessment.

The cleanup process resembles transformer oil cleanup procedures but with additional considerations for chemical powder removal. Special vacuum systems with HEPA filtration are often required to properly remove all powder residues without spreading contamination to other equipment areas.

Wet Chemical Extinguishers

​​Commercial Kitchen Fire Protection​​

Wet chemical extinguishers are specifically designed for Class K fires involving high-temperature cooking oils and fats. These portable units contain potassium acetate or citrate-based solutions that react with hot oil to create a vapor-sealing foam layer. The chemical reaction provides superior protection compared to standard foam for grease fires that can reach extremely high temperatures.

While transformers don’t involve cooking oils, some facilities may have commercial kitchens that require this specialized protection. The suppression principles share similarities with transformer oil fire protection, particularly regarding high-temperature hydrocarbon fires and the need to prevent reignition through proper cooling and vapor suppression.

​​Specialized Application Methods​​

Wet chemical extinguishers require specific application techniques different from other extinguisher types. Operators must apply the agent slowly across the oil surface to allow proper chemical reaction and foam blanket formation. Rapid discharge can disrupt the process and reduce effectiveness, requiring proper training for kitchen staff.

Facilities with both industrial and food service operations must ensure staff understand these specialized extinguishers are intended only for kitchen use. Clear labeling and separate storage prevent confusion with other extinguisher types that might be needed for electrical or oil fire protection elsewhere in the facility.

Implementation Strategies for Effective Protection

​​Strategic Extinguisher Placement​​

Proper extinguisher placement throughout facilities requires careful consideration of hazard locations and travel distances. Electrical equipment areas need CO₂ units positioned within easy reach while maintaining safe clearances. Oil storage locations require foam extinguishers placed to allow proper application angles without exposing operators to unnecessary risks.

Transformer facilities should create detailed extinguisher location maps showing all units by type and capacity. These maps should be included in emergency response plans and training materials to ensure all personnel understand what extinguishers are available in each area and their proper applications.

​​Comprehensive Training Programs​​

Effective training must cover all extinguisher types present in the facility with emphasis on proper selection and use for different fire scenarios. Hands-on demonstrations should show the dangers of using incorrect extinguishers while reinforcing proper techniques for each type. Electrical personnel need specific training on transitioning from CO₂ to foam extinguishers when dealing with transformer oil fires after de-energization.

Documentation should verify all personnel receive initial and annual refresher training, with additional sessions following any extinguisher type changes or equipment modifications that might affect fire risks. Contractors working in the facility must demonstrate equivalent knowledge of proper extinguisher selection and use before beginning work.

Maintenance and Compliance Requirements

​​Regular Inspection Procedures​​

All portable extinguishers require scheduled inspections to ensure they remain in proper working condition. Monthly visual checks should verify pressure, physical condition, and unobstructed access while annual professional servicing includes complete discharge testing and component inspection. Facilities must maintain detailed records of all inspections and corrective actions.

Electrical facilities should implement enhanced inspection protocols for CO₂ extinguishers near sensitive equipment, including more frequent checks of discharge horn condition and cylinder weight verification. Any extinguishers showing damage, pressure loss, or other issues must be removed from service immediately for repair or replacement.

​​Regulatory Compliance Documentation​​

Proper documentation helps facilities maintain compliance with fire safety regulations and insurance requirements. Records should include extinguisher installation dates, inspection reports, maintenance activities, and personnel training certifications. These documents provide important reference material for safety audits and help demonstrate due diligence in fire protection efforts.

Facilities should keep copies of manufacturer specifications, safety data sheets, and applicable standards for each extinguisher type on site. This information helps ensure proper selection, use, and maintenance of extinguishers while supporting warranty claims and regulatory compliance demonstrations during inspections.

Conclusion

Understanding the different types of portable fire extinguishers and their specific applications enables facilities to develop comprehensive protection strategies tailored to their unique risks. Water, foam, CO₂, dry chemical, and wet chemical extinguishers each serve critical but distinct roles in protecting against various fire classes. Transformer facilities in particular must carefully balance these options to address both electrical and oil fire hazards while preventing dangerous cross-application scenarios.

Regular training and maintenance ensure extinguishers remain effective when needed while proper placement and signage facilitate quick emergency response. As facility hazards evolve with new equipment and technologies, fire protection systems must adapt to maintain appropriate coverage. A well-designed extinguisher program incorporates all necessary types in strategic locations throughout the facility based on thorough hazard analysis and risk assessment.

By implementing these principles and maintaining vigilant safety practices, facilities can achieve optimal fire protection without compromising operational requirements. The investment in proper extinguisher selection, training, and maintenance pays substantial dividends through reduced equipment damage, lower liability risks, and improved personnel safety during fire emergencies. Continuous review and improvement of fire protection strategies ensures facilities remain prepared for evolving risks while meeting all regulatory requirements.
