Electrical fires present unique challenges that require specialized extinguishers designed specifically for energized equipment. As an electrical engineer with extensive transformer experience, I understand how crucial proper fire suppression is for protecting valuable electrical infrastructure. The wrong extinguisher choice can lead to dangerous situations, equipment damage, and potential injury to personnel.
Electrical fires fall under Class C classification in fire safety standards, which specifically addresses energized electrical equipment fires. This classification helps identify the proper extinguishers that can safely interrupt electrical fires without conducting electricity back to the operator. Transformer facilities in particular need careful extinguisher selection due to the combination of high-voltage equipment, flammable insulating oils, and critical power distribution components.
Key Characteristics of Electrical Fires
Electrical fires behave differently from other fire types due to their energized nature and potential for rapid escalation. These fires often originate from short circuits, overloaded conductors, or equipment failures that generate intense heat. The presence of live electricity creates shock hazards and potential arc flash incidents that complicate firefighting efforts.
In transformer applications, electrical fires may involve both the energized windings and surrounding insulating oil. This combination creates complex fire scenarios requiring extinguishers that can handle electrical fires while being prepared for potential oil involvement after de-energization. The suppression method must effectively interrupt the fire without creating additional conductive paths that could endanger responders or equipment.

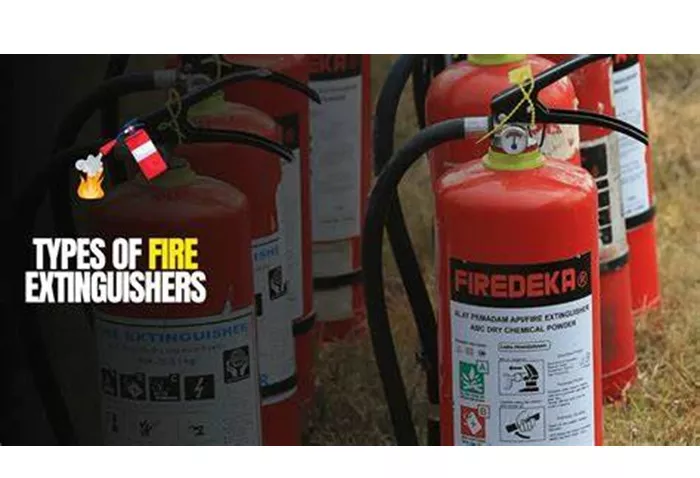

Recommended Extinguishers for Electrical Fires
Carbon Dioxide (CO₂) Extinguishers
CO₂ extinguishers represent the preferred solution for most electrical fire scenarios in industrial and utility settings. These Class C rated extinguishers discharge gaseous carbon dioxide that leaves no residue and presents no conductivity hazard. The rapid discharge effectively knocks down flames while the heavy gas displaces oxygen to prevent reignition.
For electrical appliance protection, CO₂ extinguishers offer several distinct advantages. The extremely cold discharge helps cool overheated components without water damage to insulation systems. They won’t contaminate sensitive electronics or leave corrosive residues that could affect long-term reliability. The clean operation allows faster restoration of service after discharge compared to powder-based alternatives.
Dry Chemical Extinguishers
Multipurpose dry chemical extinguishers specifically rated for Class C fires provide effective alternatives where CO₂ may be impractical. These formulations use specially treated monoammonium phosphate or sodium bicarbonate powders that maintain non-conductive properties during discharge. The powder cloud interrupts flame propagation while helping block oxygen from reaching the fire source.
For electrical appliance protection, dry chemical extinguishers offer advantages in areas where fires might involve both electrical components and surrounding ordinary combustibles. The powder can suppress small fires that develop from electrical faults while remaining safe for nearby energized equipment. Facilities should verify the extinguisher’s voltage rating matches their specific equipment requirements.
Special Considerations for Different Electrical Appliances
Small Electronic Devices and Computers
Small electronics require extinguishers that won’t cause collateral damage while effectively suppressing electrical fires. CO₂ extinguishers work best for these applications as they leave no residue that could damage sensitive circuit boards or components. The rapid cooling effect helps prevent heat damage to adjacent components that might not be directly involved in the fire.
When using extinguishers on small electronics, operators should maintain proper distance to avoid physical damage from the discharge pressure. The extinguisher should be aimed at the base of the fire rather than directly at delicate components. After discharge, proper ventilation is necessary as CO₂ can displace oxygen in confined spaces.
Large Industrial Electrical Equipment
Industrial electrical equipment including transformers, switchgear, and motor control centers present different challenges for fire suppression. These larger installations often benefit from fixed suppression systems in addition to portable extinguishers. The size and energy capacity of industrial equipment may require larger extinguisher sizes or multiple units for effective suppression.
For transformer protection specifically, fire risks involve both electrical components and insulating oil. The initial response should use electrical-rated extinguishers, transitioning to foam or other appropriate methods only after complete de-energization. Facility emergency plans must clearly outline this transition process with proper safeguards to ensure worker safety.
Performance Comparison of Electrical Fire Extinguishers
Effectiveness in Arc Flash Situations
Arc flashes represent some of the most dangerous electrical fire scenarios where extinguisher selection critically impacts outcomes. CO₂ extinguishers demonstrate excellent arc flash suppression by rapidly cooling the plasma channel and displacing oxygen. The gaseous discharge can penetrate into equipment enclosures where arcs originate while remaining safe for nearby energized components.
Dry chemical versions also work well but may leave residues that complicate post-arc inspections. The extremely high temperatures in arc flashes (exceeding 20,000°C) require extinguishers with instant knockdown capability. Facilities should select larger capacity models to ensure adequate agent quantity for substantial arc events while maintaining proper safety margins.
Equipment Damage and Restoration Factors
Post-fire equipment damage varies significantly between extinguisher types, affecting repair costs and outage durations. CO₂ leaves no residue and causes minimal collateral damage, often allowing faster restoration of service. Dry chemical extinguishers require thorough cleaning after use as the powder can infiltrate equipment and affect insulation resistance measurements.
Electrical facilities must balance immediate fire control needs with long-term equipment reliability when selecting extinguishers. Areas containing sensitive control equipment or critical circuits often justify the higher cost of CO₂ extinguishers to minimize post-fire impacts. Less critical areas may utilize dry chemical models where residue cleanup presents fewer operational concerns.
Implementation Best Practices
Strategic Extinguisher Placement
Proper extinguisher placement significantly affects emergency response effectiveness in electrical facilities. Class C units should be mounted near potential hazard areas but at safe distances from live components to prevent accidental contact during discharge. The recommended maximum travel distance is 15 meters for CO₂ and 10 meters for dry chemical extinguishers in electrical equipment areas.
Clear signage should identify extinguisher locations and types while indicating their approved uses. Facilities should implement color-coding systems that help personnel quickly distinguish Class C extinguishers from other types during emergencies. Regular inspections verify that units remain fully charged and accessible without obstructions that could delay response.
Comprehensive Personnel Training
Effective training programs ensure personnel understand how to properly use Class C extinguishers while recognizing their limitations. Hands-on drills should simulate realistic electrical fire scenarios where operators must select the correct extinguisher and apply it from safe distances. Training must emphasize the importance of maintaining proper stance and discharge angles to maximize effectiveness while minimizing risks.
Documentation should verify all personnel receive initial and annual refresher training, with additional sessions following any equipment changes that might affect fire risks. Contractors working in electrical facilities must demonstrate equivalent knowledge of proper extinguisher selection and use before being permitted to work in electrical areas.
Maintenance and Inspection Protocols
Monthly Visual Inspections
All Class C extinguishers require monthly visual checks to verify proper pressure, intact seals, and unobstructed access. CO₂ units need additional verification that discharge horns remain undamaged and that safety pins are properly seated. Dry chemical models should be gently inverted periodically to prevent powder compaction that could impair discharge performance.
Inspection tags must document the most recent professional service date while any signs of damage, corrosion, or tampering necessitate immediate replacement. Facilities should maintain detailed records of all inspections and corrective actions to demonstrate compliance with safety regulations and insurance requirements.
Annual Professional Servicing
Certified technicians should perform comprehensive annual servicing that includes complete discharge testing and refill operations. For CO₂ extinguishers, this includes weighing the cylinder to verify proper charge and checking valve mechanisms. Dry chemical servicing involves complete powder replacement and verification of expellant gas pressure.
In electrical facilities, the annual service should include dielectric testing of dry chemical extinguishers to confirm their non-conductive properties remain intact. Service reports must document compliance with both fire safety standards and electrical equipment protection requirements for all extinguishers in electrical areas.
Emerging Technologies in Electrical Fire Protection
Clean Agent Extinguishing Systems
New clean agent technologies provide alternatives to traditional Class C extinguishers for sensitive electrical equipment. These gaseous systems use chemicals like FK-5-1-12 or Novec 1230 that leave no residue and cause no ozone depletion. The agents work through heat absorption and chemical interference with the combustion process while remaining electrically non-conductive.
Electrical control rooms and equipment panels increasingly utilize these systems where even minimal residue from dry chemical extinguishers could affect sensitive electronics. The higher cost becomes justified by reduced equipment damage and faster restoration of critical systems following discharge.
Water Mist Systems for De-energized Equipment
Advanced water mist systems now provide options for electrical equipment fires after proper de-energization. The ultra-fine water droplets (less than 1000 microns) create a non-conductive mist that cools fires through evaporation while minimizing water damage. These systems can be safely used on de-energized electrical equipment where traditional water spray would be hazardous.
Facilities are increasingly installing water mist as supplemental protection in electrical rooms and equipment vaults, with proper interlocks to prevent activation on energized equipment. The technology bridges the gap between electrical safety requirements and the need for effective cooling of large equipment fires after power removal.
Conclusion
Selecting the proper extinguisher for electrical appliances requires understanding both the unique characteristics of energized equipment fires and the specific needs of different electrical installations. Class C CO₂ extinguishers generally provide the safest, cleanest option for most electrical fires while dry chemical models offer additional capabilities for combined hazard scenarios. The specific facility conditions, equipment types, and voltage levels ultimately determine the optimal mix of extinguishers for comprehensive protection.
Regular training and maintenance ensure extinguishers remain effective when needed while proper placement and signage facilitate quick emergency response. As electrical technology evolves, fire protection systems must adapt to address new risks while maintaining compatibility with sensitive equipment. A well-designed electrical fire protection program incorporates both portable extinguishers and fixed systems tailored to the specific hazards present in each facility area.
By understanding these principles and implementing appropriate extinguisher selection criteria, facilities can achieve optimal fire safety without compromising electrical system reliability. The investment in proper Class C fire extinguishers pays substantial dividends through reduced equipment damage, lower liability risks, and improved personnel safety during electrical emergencies. Continuous review and improvement of fire protection strategies ensures facilities remain prepared for evolving electrical fire risks.
