Fire extinguishers come in several specialized types designed to combat specific fire classes safely and effectively. As an electrical engineer specializing in transformers, I understand how crucial proper extinguisher selection is for protecting valuable electrical equipment. Each extinguisher type has distinct characteristics that make it suitable for certain fire scenarios while being potentially dangerous for others.

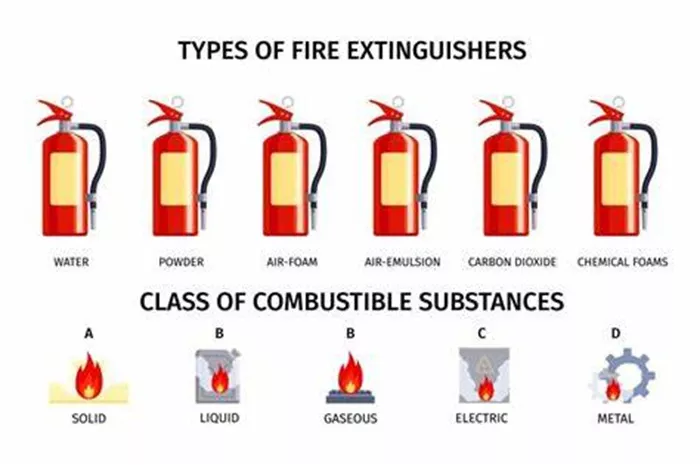

The four primary extinguisher types address different combinations of fire classes from ordinary combustibles to electrical and chemical fires. Transformer facilities particularly need to understand these differences because they often contain multiple fire risks including electrical components, insulating oils, and structural materials. Proper extinguisher selection prevents dangerous situations where the wrong type might spread fires or create additional hazards.
Key Characteristics of Fire Classes
Fire classification systems categorize fires based on their fuel source to guide proper extinguisher selection. Class A involves ordinary combustibles like wood and paper while Class B covers flammable liquids including transformer oil. Class C designates energized electrical equipment fires and Class D applies to combustible metals. Some systems also include Class K for cooking oil fires in commercial kitchens.
Understanding these classifications helps facilities select extinguishers that match their specific risks. Transformer installations typically need protection for both Class B and Class C hazards, requiring careful extinguisher choices that can handle oil fires after proper de-energization while remaining safe for electrical components when energized.
Water-Based Extinguishers
Class A Fire Protection
Water extinguishers provide the most effective and economical solution for Class A fires involving ordinary combustible materials. These extinguishers work by cooling burning materials below their ignition temperature through heat absorption. The water stream penetrates burning materials to extinguish deep-seated fires that might reignite if only surface flames are suppressed.
In transformer facilities, water extinguishers should only be used in designated areas away from electrical equipment. They work well for office areas, storage rooms, and other locations containing paper, wood, or fabric materials. Proper placement ensures they won’t be mistakenly used on electrical or oil fires where water would be dangerous.
Limitations and Safety Concerns
Water extinguishers present serious hazards when used improperly on electrical or oil fires. The conductivity of water makes it extremely dangerous for energized equipment while its tendency to spread burning liquids worsens oil fires. Facilities must clearly mark water extinguishers with warnings about prohibited uses and provide alternative extinguishers near electrical and oil hazards.
Transformer installations should implement strict zoning that separates water extinguishers from electrical equipment areas. Training programs must emphasize that water should never be used on transformer oil fires, even after de-energization, as it can cause dangerous splashing and reignition hazards that specialized foam extinguishers avoid.
Foam Extinguishers
Class B Fire Suppression
Foam extinguishers excel at controlling flammable liquid fires including transformer oil fires after proper de-energization. The foam blanket smothers flames while preventing vapor release, creating a more effective solution than water for hydrocarbon fires. Special alcohol-resistant formulations handle polar solvents while standard foam works well for ordinary oils and fuels.
Transformer facilities typically deploy foam extinguishers near oil storage areas and de-energized equipment. The extinguishers must be clearly marked for use only after electrical isolation to prevent dangerous conductivity hazards. Fixed foam systems often provide primary protection for large oil-filled transformers in substations and power plants.
Application Techniques
Proper foam extinguisher use requires specific techniques to maximize effectiveness while minimizing risks. Operators should apply foam gently by banking it off nearby surfaces rather than spraying directly into burning liquid. This approach prevents splashing while allowing the foam blanket to spread evenly across the fire surface for complete coverage.
Training programs must emphasize that foam extinguishers should never be used on energized electrical equipment despite their effectiveness on oil fires. Facilities should conduct regular drills that simulate transformer oil fire scenarios to reinforce proper foam application methods and safety protocols for de-energized equipment.
Carbon Dioxide (CO₂) Extinguishers
Class C Electrical Fire Protection
CO₂ extinguishers represent the preferred solution for energized electrical equipment fires due to their non-conductive properties and clean operation. The extremely cold discharge rapidly knocks down flames while the heavy gas displaces oxygen to prevent reignition. These extinguishers leave no residue that could damage sensitive electronics or complicate post-fire inspections.
In transformer applications, CO₂ extinguishers provide safe protection for control panels, switchgear, and other energized components. Their ability to penetrate into equipment enclosures makes them particularly effective for electrical arc incidents while the lack of residue allows faster restoration of service compared to powder-based alternatives.
Safety Considerations
While CO₂ extinguishers are extremely effective for electrical fires, they present specific safety concerns that require attention. The intense cold discharge can cause frostbite if mishandled while the oxygen displacement creates asphyxiation risks in confined spaces. Facilities must provide proper training on safe handling techniques and ventilation requirements after discharge.
Transformer control rooms using CO₂ extinguishers should install oxygen monitoring systems and emergency ventilation to address potential asphyxiation hazards. Clear signage should indicate the need to evacuate after discharge in confined areas until proper air quality is restored through ventilation systems.
Dry Powder Extinguishers
Class D Metal Fire Protection
Dry powder extinguishers designed specifically for combustible metal fires contain specialized agents like sodium chloride or copper powder. These formulations smother metal fires by forming a crust over the burning material that excludes oxygen while absorbing heat from the reaction. They represent the only safe portable solution for metals like magnesium, titanium, and sodium.
While transformers themselves don’t typically contain combustible metals, surrounding facility equipment might. Battery rooms with lithium batteries or metal processing equipment near substations may require Class D extinguishers. These units must be clearly marked and separated from electrical fire protection equipment to prevent dangerous confusion during emergencies.
Cleanup and Compatibility
Post-fire cleanup presents significant challenges with dry powder extinguishers as the residues can be corrosive and difficult to remove completely. Some powders may damage electrical components if they infiltrate enclosures, requiring thorough cleaning of affected areas before returning equipment to service. Facilities must establish proper cleanup protocols that address both fire residue removal and potential equipment damage assessment.
The cleanup process resembles transformer oil cleanup procedures but with additional material compatibility considerations for metal powders. Special vacuum systems with HEPA filtration are often required to properly remove all powder residues without spreading contamination to other equipment areas.
Implementation Strategies for Comprehensive Protection
Facility-Wide Extinguisher Placement
Effective fire protection requires strategic placement of appropriate extinguisher types throughout facilities based on specific area hazards. Electrical equipment rooms need CO₂ units while oil storage areas require foam extinguishers, with clear physical separation between different types. The placement must balance quick access during emergencies with prevention of accidental misuse near incompatible hazards.
Transformer facilities should develop detailed extinguisher placement maps that identify all units by type and location. These maps should be included in emergency response plans and training materials to ensure all personnel understand what extinguishers are available in each area and their proper applications.
Integrated Training Programs
Comprehensive training must cover all extinguisher types present in the facility with emphasis on proper selection and use for different fire scenarios. Hands-on demonstrations should show the dangers of using incorrect extinguishers while reinforcing proper techniques for each type. Electrical personnel need specific training on transitioning from CO₂ to foam extinguishers when dealing with transformer oil fires after de-energization.
Documentation should verify all personnel receive initial and annual refresher training, with additional sessions following any extinguisher type changes or equipment modifications that might affect fire risks. Contractors working in the facility must demonstrate equivalent knowledge of proper extinguisher selection and use before beginning work.
Maintenance and Compliance Considerations
Scheduled Inspection Procedures
All extinguisher types require regular inspections to ensure they remain in proper working condition. Monthly visual checks should verify pressure, physical condition, and unobstructed access while annual professional servicing includes complete discharge testing and component inspection. Facilities must maintain detailed records of all inspections and corrective actions to demonstrate compliance with safety regulations.
Electrical facilities should implement enhanced inspection protocols for CO₂ extinguishers near sensitive equipment, including more frequent checks of discharge horn condition and cylinder weight verification. Any extinguishers showing damage, pressure loss, or other issues must be removed from service immediately for repair or replacement.
Regulatory Compliance Documentation
Proper documentation helps facilities maintain compliance with fire safety regulations and insurance requirements. Records should include extinguisher installation dates, inspection reports, maintenance activities, and personnel training certifications. These documents provide important reference material for safety audits and help demonstrate due diligence in fire protection efforts.
Facilities should keep copies of manufacturer specifications, safety data sheets, and applicable standards for each extinguisher type on site. This information helps ensure proper selection, use, and maintenance of extinguishers while supporting warranty claims and regulatory compliance demonstrations during inspections.
Conclusion
Understanding the four primary extinguisher types and their specific applications enables facilities to develop comprehensive fire protection strategies tailored to their unique risks. Water, foam, CO₂, and dry powder extinguishers each serve critical but distinct roles in protecting against different fire classes. Transformer facilities in particular must carefully balance these options to address both electrical and oil fire hazards while preventing dangerous cross-application scenarios.
Regular training and maintenance ensure extinguishers remain effective when needed while proper placement and signage facilitate quick emergency response. As facility hazards evolve with new equipment and technologies, fire protection systems must adapt to maintain appropriate coverage. A well-designed extinguisher program incorporates all four types in strategic locations throughout the facility based on thorough hazard analysis and risk assessment.
By implementing these principles and maintaining vigilant safety practices, facilities can achieve optimal fire protection without compromising operational requirements. The investment in proper extinguisher selection, training, and maintenance pays substantial dividends through reduced equipment damage, lower liability risks, and improved personnel safety during fire emergencies. Continuous review and improvement of fire protection strategies ensures facilities remain prepared for evolving risks while meeting all regulatory requirements.
