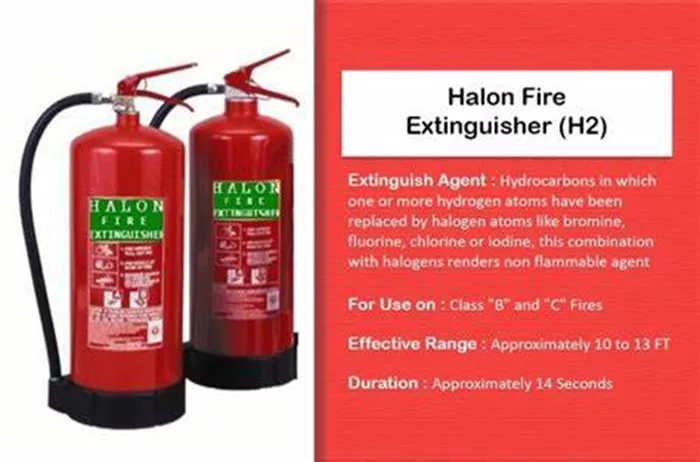

What Are Halon Extinguishers Used For?

by jingji47

Halon extinguishers were once considered the gold standard for protecting sensitive electrical equipment from fire damage. As an electrical engineer specializing in transformers, I’ve worked with these systems in various industrial applications before their phase-out. These clean agent extinguishers offered unique advantages for high-value electrical infrastructure due to their ability to suppress fires without leaving residue or causing equipment damage.

Transformer installations particularly benefited from halon systems because they could quickly extinguish electrical fires without disrupting operations. The gas penetrated deep into equipment enclosures, putting out fires in hard-to-reach areas while being safe for energized components. Though largely replaced today, understanding halon’s applications helps explain why it was so valuable and what modern alternatives attempt to replicate.

Advertisements

​​Halon’s Unique Firefighting Properties​​

Halon extinguishers worked by interrupting the chemical chain reaction of fire rather than just removing heat or oxygen. This mechanism allowed extremely fast fire suppression with minimal agent quantity. The gas was electrically non-conductive and left no residue, making it ideal for sensitive electronics and electrical equipment.

Advertisements

In transformer applications, halon could protect control panels, relay rooms, and other critical areas where water or powder extinguishers would cause unacceptable damage. The quick discharge and rapid dissipation meant minimal downtime after fire incidents, a crucial factor for mission-critical power infrastructure.

Advertisements

Electrical Equipment Protection

​​Energized Component Safety​​

Halon extinguishers were particularly valued for protecting live electrical equipment because the gas didn’t conduct electricity. This allowed safe use on energized transformers, switchgear, and control panels without shock hazards. The suppression occurred so quickly that it often prevented catastrophic equipment damage from electrical arcs.

Advertisements

Transformer facilities used halon systems in control rooms and relay panels where even minor fire damage could cause widespread power disruptions. The ability to suppress fires without de-energizing equipment first was especially valuable for critical infrastructure that couldn’t tolerate unexpected outages.

​​High-Voltage Applications​​

The non-conductive nature of halon made it suitable for high-voltage equipment protection where other extinguishers might create arc paths. Large transformer installations often incorporated fixed halon systems in areas where electrical arcs could potentially ignite surrounding materials.

Special consideration was given to system design to ensure proper concentration in large spaces containing high-voltage equipment. The rapid knockdown capability helped prevent arc re-ignition, a particular concern with high-energy electrical systems.

Flammable Liquid Fire Control

​​Transformer Oil Fire Suppression​​

Halon systems effectively suppressed fires involving transformer oil and other flammable liquids without the messy cleanup of powder extinguishers. The gas worked on both surface and pressurized oil fires, making it valuable for transformer vaults and oil-filled equipment areas.

The chemical interference mechanism allowed halon to put out oil fires faster than traditional methods that relied solely on oxygen displacement. This rapid action was crucial for preventing small transformer oil fires from escalating into major incidents.

​​Three-Dimensional Fire Protection​​

Unlike some agents that only worked on horizontal surfaces, halon could suppress fires burning vertically or overhead. This capability proved valuable in transformer installations where oil fires might spread along walls or equipment surfaces.

The total flooding capability meant halon could fill an entire room or enclosure, providing comprehensive protection regardless of fire location. This was particularly useful for large transformer bays where fire might start in difficult-to-access areas.

Sensitive Environment Applications

​​Computer and Control Rooms​​

Halon was the preferred choice for protecting electronic control systems in transformer facilities because it wouldn’t damage sensitive components. The clean discharge left no residue that could interfere with relay operations or cause long-term corrosion issues.

Control rooms housing transformer monitoring equipment often used halon systems to ensure continuous operation during fire incidents. The quick suppression and clean operation minimized disruption to critical power system controls.

​​Archives and Documentation Areas​​

Transformer facilities with important paper records and technical drawings used halon to protect these materials from fire damage. Unlike water or powder, halon wouldn’t ruin documents if discharged, preserving crucial infrastructure documentation.

The ability to suppress fires without damaging adjacent materials made halon ideal for areas containing both electrical equipment and paper records. This dual protection was valuable in utility company offices and engineering departments.

Phase-Out and Modern Alternatives

​​Environmental Regulations​​

International environmental agreements led to halon’s phase-out due to ozone depletion concerns. The Montreal Protocol and subsequent regulations banned production of most halon types, forcing industries to seek alternatives. Existing halon systems can still be maintained but not replenished with new agent.

Transformer facilities had to retrofit protection systems when halon became unavailable. This transition required careful evaluation of alternative agents to ensure comparable protection for critical electrical equipment.

​​Clean Agent Replacements​​

Modern clean agent systems using gases like FM-200 or Novec 1230 now fill halon’s role in most applications. These alternatives offer similar benefits of quick, clean fire suppression without ozone depletion effects. While not identical to halon in performance, they provide adequate protection for most electrical fire scenarios.

Transformer control rooms and relay panels now typically use these newer clean agents for fire protection. The systems are designed to achieve similar concentration levels and distribution patterns as the halon systems they replaced.

System Design Considerations

​​Total Flooding Requirements​​

Halon systems were typically designed as total flooding systems that filled entire enclosures with fire-suppressing concentrations. This required careful calculation of room volumes, leakage rates, and agent quantities to ensure proper protection levels.

Transformer facilities had to consider enclosure integrity when installing these systems to prevent agent loss. Doors, vents, and other openings needed automatic closures to maintain effective halon concentrations during discharge.

​​Safety and Discharge Protocols​​

While halon was safe for humans in small exposures, facilities needed protocols for evacuation before system discharge in occupied spaces. Warning alarms and pre-discharge delays allowed personnel to exit areas before suppression began.

Transformer control rooms with halon systems required special training so operators understood proper response procedures. The systems were typically interlocked with fire detection and ventilation controls for safe operation.

Legacy Systems and Retrofits

​​Maintaining Existing Installations​​

Some transformer facilities still maintain original halon systems where alternatives aren’t practical. These systems must be carefully monitored for potential leaks since replenishment isn’t possible. Regular testing ensures proper operation while minimizing unnecessary agent loss.

Facilities keeping halon systems must maintain detailed records of remaining agent quantities and system integrity. Specialized contractors are required for any maintenance to prevent accidental discharges or leaks.

​​Retrofit Challenges​​

Replacing halon systems in transformer facilities often required significant modifications to accommodate different agent properties. New clean agents sometimes need larger storage cylinders or different distribution piping due to varying flow characteristics.

The retrofit process typically involved complete system redesign rather than simple component swaps. Facilities had to evaluate whether to maintain separate systems for different areas or implement uniform protection throughout.

Conclusion

Halon extinguishers represented an ideal solution for many transformer facility fire protection needs before environmental concerns forced their phase-out. Their unique combination of rapid suppression, electrical safety, and clean operation made them invaluable for protecting critical power infrastructure. The technology set standards that modern clean agent systems continue to emulate.

Understanding halon’s applications helps explain why it was so widely used and what characteristics make effective replacements. Transformer facilities today must balance fire protection needs with environmental responsibility when selecting suppression systems. The lessons learned from halon systems continue to influence electrical equipment protection strategies decades after their discontinuation.

While no longer available for new installations, halon’s legacy persists in the high standards it established for critical infrastructure fire protection. Modern transformer facilities benefit from this history as they implement newer, more environmentally friendly alternatives that maintain the same commitment to safety and reliability. The transition from halon demonstrates how industries can adapt to environmental challenges while maintaining effective fire protection for essential electrical systems.
