Submersible pump installations demand specialized wiring solutions that can withstand unique underwater operating conditions. As an electrical engineer with transformer expertise, I recognize how pump wiring must maintain reliable performance while submerged, just as transformer connections must endure various environmental challenges. The wiring serves as the critical link between surface power sources and underwater pumping equipment, requiring robust construction to prevent failures in difficult-to-access locations.
Transformer systems and submersible pump wiring share similar requirements for moisture resistance and long-term reliability. While transformers manage voltage conversion for pump operation, the submerged wiring must deliver power through potentially corrosive water environments without insulation breakdown. This relationship becomes particularly important in deep well applications where wiring runs can extend hundreds of feet below ground level.
Key Characteristics of Submersible Pump Wire
Submersible pump wires feature specially formulated insulation that resists water absorption and chemical degradation. These material properties resemble the moisture-resistant insulation systems used in outdoor and underground transformer installations. The wiring must withstand continuous immersion while handling the mechanical stresses of installation and operation, similar to how transformer leads endure vibration and thermal cycling.
Temperature ratings for submersible pump wire typically range from 75°C to 90°C to accommodate warm water conditions and conductor heating. These thermal specifications align with transformer connection requirements where heat buildup affects performance. Proper wire sizing prevents excessive voltage drop over long runs, just as transformer sizing considers voltage regulation for connected pump motors.
Recommended Wire Types for Submersible Pumps
THWN-2 Thermoplastic Insulated Wire
THWN-2 wire serves as a common choice for submersible pump installations due to its excellent moisture resistance and durability. This wire type features thermoplastic insulation with a nylon outer coating that provides protection against water penetration and abrasion. The construction parallels the protective systems used in transformer connections where environmental factors threaten insulation integrity.
Available in copper conductors from 14 AWG to 4/0 AWG, THWN-2 accommodates various pump sizes and installation depths. These conductor size options resemble the range of transformer secondary connections needed for different motor loads. The wire’s color-coded insulation helps maintain proper phase identification throughout the electrical system, similar to color coding standards in transformer installations.
Submersible Pump Cable
Dedicated submersible pump cable offers superior performance for permanent underwater installations. This specialized cable type incorporates multiple insulated conductors within a rugged, waterproof jacket that resists oils, chemicals, and abrasion. The integrated design provides comprehensive protection that mirrors the construction of direct-burial transformer secondary cables used in harsh environments.
The cable typically includes a ground conductor and may feature additional reinforcement for deep well applications. These safety and durability features resemble those incorporated into transformer connection systems where reliability is paramount. Submersible pump cable is available in various configurations to match different pump types and installation requirements.
Electrical Properties and Performance Standards
Voltage Drop Considerations
Proper wire sizing must account for voltage drop over the length of submersible pump wiring runs. These calculations resemble the voltage regulation planning for transformer installations where conductor characteristics affect system performance. Larger conductors may be necessary for deep wells or high-horsepower pumps, similar to the conductor sizing adjustments made for extended transformer secondary circuits.
Low voltage drop ensures pump motors receive adequate voltage for proper operation and efficiency. These voltage quality requirements parallel those for transformer-fed equipment where voltage variations can significantly impact performance. Careful wire selection prevents excessive power loss while maintaining safe operating conditions throughout the electrical system.
Compliance with Safety Standards
Submersible pump wiring must meet UL 44 and UL 83 standards for wet location operation. These certification requirements ensure consistent quality and performance, similar to the standards governing transformer production. Testing includes evaluations for water resistance, crush strength, and long-term durability under simulated operating conditions.
Permanent markings on the wire or cable jacket identify key specifications including wire size, temperature rating, and voltage class. These identification methods resemble the comprehensive nameplate information found on transformers that communicates essential performance characteristics. Proper labeling helps ensure correct wire selection and simplifies compliance verification during inspections.
Installation Methods and Best Practices
Well Casing Protection Techniques

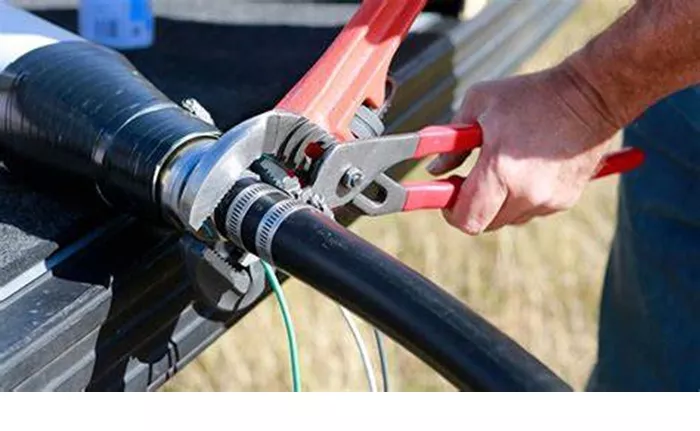

Submersible pump wiring requires proper support and protection within well casings to prevent damage during installation and operation. These protective measures parallel those used for transformer connections in challenging environments. Special clamps or straps secure the wiring at regular intervals while allowing for thermal expansion and contraction.
The wiring should maintain some slack near the pump to accommodate movement and prevent strain on connections. These installation details resemble the stress relief techniques applied to transformer bushings and terminals. Proper routing avoids sharp edges and abrasive surfaces that could damage insulation over time.
Splice and Connection Methods
Underwater splices in submersible pump wiring must use specialized waterproof connectors. These connection systems resemble the moisture-proof terminal arrangements found in outdoor transformer installations. Proper splicing techniques ensure reliable electrical continuity while maintaining insulation integrity in wet environments.
All connections should be mechanically secure and protected against corrosion, similar to the connection requirements for transformer terminals. Heat-shrink tubing or molded rubber splice kits provide additional protection at connection points, preventing water intrusion that could lead to insulation failure.
Comparison with Alternative Wiring Methods
Submersible vs Surface Pump Wiring
Surface pump installations use conventional wiring methods that don’t require waterproof construction. These wiring differences mirror the varying conductor requirements between indoor and outdoor transformer installations. Submersible pump wiring demands more robust materials and construction to withstand continuous immersion and potential chemical exposure.
The inaccessible nature of submersible pump wiring requires higher reliability than surface pump connections. These installation challenges resemble those faced with underground transformer connections where maintenance access is limited. Proper wire selection and installation techniques ensure long service life despite the demanding operating environment.
Copper vs Aluminum Conductors
Copper conductors offer superior conductivity and corrosion resistance for submersible pump applications. These material advantages parallel those of copper transformer windings where reliability is critical. Aluminum conductors may be used in some large pump installations but require special termination techniques to prevent galvanic corrosion.
The smaller diameter of copper conductors for a given current rating often makes them preferable for deep well installations. This size advantage resembles the space considerations in transformer design where compact copper windings improve efficiency. Proper conductor selection balances performance requirements with installation practicalities and cost considerations.
Maintenance and Troubleshooting Considerations
Preventative Inspection Practices
Periodic electrical testing helps identify developing problems in submersible pump wiring before failures occur. These diagnostic procedures parallel the maintenance testing performed on transformer insulation systems. Megohmmeter testing can detect insulation degradation while continuity checks verify proper conductor integrity.
Monitoring pump performance parameters provides indirect indications of wiring condition. These observation techniques resemble the load monitoring methods used to assess transformer health. Significant changes in current draw or starting characteristics may indicate wiring problems requiring investigation.
Repair and Replacement Guidelines
Damaged submersible pump wiring typically requires complete replacement due to the difficulty of making reliable underwater repairs. These replacement standards mirror the conductor replacement protocols for transformer windings where partial repairs might compromise reliability. Well pullers and other specialized equipment are often needed to access and replace failed wiring.
When upgrading pump systems, existing wiring should be evaluated for compatibility with new equipment. These assessment requirements resemble those needed when modifying transformer installations where existing conductors may need replacement. Proper documentation of wiring specifications facilitates future maintenance and replacement projects.
Future Developments in Submersible Pump Wiring
Advanced Insulation Materials
New polymer formulations are improving wire insulation performance for submersible applications. These material advancements resemble the innovations in transformer insulation systems where better materials enhance reliability. Next-generation insulation offers superior resistance to water treeing and chemical degradation while maintaining flexibility for easier installation.
Nanocomposite insulation materials may allow for longer service life in harsh water conditions. These high-performance solutions mirror the conductor advancements in transformer design where material science improves durability. The new materials could enable more compact wiring designs while maintaining or improving safety margins.
Integrated Monitoring Systems
Emerging technologies may incorporate condition monitoring directly into submersible pump wiring. These smart features parallel the diagnostic capabilities being added to modern transformer designs. Future wiring systems could include embedded sensors that detect insulation degradation or conductor damage before failures occur.
Fiber optic strands integrated into pump cables could provide real-time monitoring of temperature and mechanical stress. These advanced monitoring techniques resemble those being developed for critical transformer connections. Early warning systems would significantly improve reliability by allowing proactive maintenance before catastrophic failures.
Conclusion
Quality wiring forms the foundation of reliable submersible pump operation, much like proper conductors ensure transformer performance. The relationship between wiring selection and pump reliability becomes particularly evident when considering the challenging underwater environment and limited maintenance access. Just as transformer capacity and connection quality affect power distribution, submersible pump wiring directly impacts system longevity and operational efficiency.
Ongoing developments in wiring technology continue to enhance submersible pump system reliability, paralleling advancements in transformer design. These improvements address both immediate installation challenges and long-term durability concerns. By understanding wiring requirements and selecting appropriate materials, engineers can create pump installations that deliver years of trouble-free operation while meeting all safety standards.
The careful balance between conductor sizing, insulation properties, and installation methods ensures submersible pump systems will withstand demanding operating conditions. This comprehensive approach mirrors the engineering considerations applied to transformer installations where multiple factors must be balanced for successful implementation. Proper wiring selection and installation ultimately determine the safety, efficiency, and service life of any submersible pump system.
