Romex wire represents one of the most common types of non-metallic sheathed cable used in residential and commercial electrical installations. As an electrical engineer with transformer expertise, I recognize important parallels between Romex wiring and transformer secondary conductors, where both must safely deliver power while accounting for voltage drop and current carrying capacity. The National Electrical Code (NEC) specifically refers to these cables as NM (non-metallic) cables, with Romex being a popular brand name that has become synonymous with the product category.
Modern Romex cables contain insulated copper conductors bundled together with a bare ground wire and protected by an outer PVC jacket. This construction shares conceptual similarities with some transformer lead configurations where multiple conductors are grouped for efficient installation while maintaining proper insulation between circuits. Understanding proper Romex selection requires knowledge of electrical codes, conductor sizing, and installation methods that together ensure safe and reliable power distribution.
Romex Cable Construction and Components

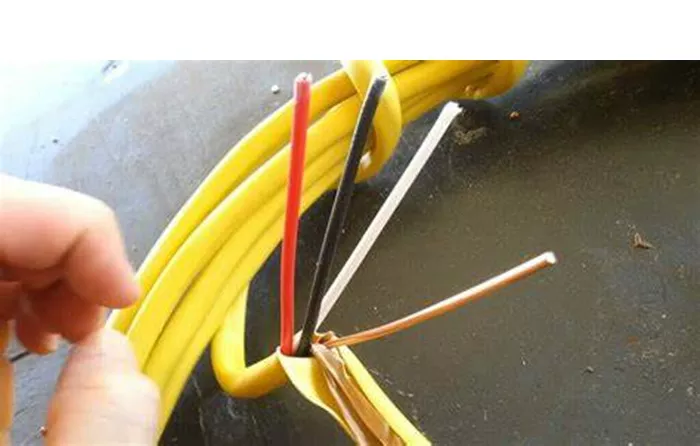

Standard Romex cables consist of two or more insulated current-carrying conductors plus a bare equipment grounding conductor. These components are neatly arranged within a durable PVC jacket that provides physical protection and keeps the conductors properly spaced. The construction principles mirror those used in certain transformer secondary cables where multiple conductors must be bundled while preventing contact between phases.
The color-coded insulation on Romex conductors helps electricians identify wire functions during installation and troubleshooting. This color coding system resembles the identification methods used for transformer windings and leads where proper connection sequence is critical. White insulation typically identifies neutral conductors, black and red denote hot wires, while green or bare copper serves as the grounding conductor.
Key Factors in Romex Wire Selection
Current Capacity and Conductor Size
Romex wire gauge directly determines its safe current carrying capacity, with larger conductors handling greater electrical loads. This relationship between conductor size and ampacity mirrors the fundamental principles governing transformer winding design where proper conductor cross-section prevents excessive temperature rise. Common residential Romex sizes include 14 AWG for 15-amp circuits, 12 AWG for 20-amp circuits, and 10 AWG for 30-amp circuits, following NEC ampacity tables.
Voltage drop considerations become particularly important for longer Romex circuit runs where conductor resistance can significantly reduce delivered voltage. These calculations resemble the voltage regulation analysis performed for transformer secondaries where conductor length affects performance. Oversizing conductors one gauge beyond minimum requirements often proves beneficial for longer runs to maintain proper voltage at connected devices.
Insulation Properties and Temperature Ratings
Romex cables use flame-retardant PVC insulation rated for 90°C dry locations and 60°C wet locations, providing adequate thermal margin for most residential applications. These temperature capabilities parallel the insulation classes used in transformer designs where materials must maintain integrity at specified operating temperatures. The insulation system must withstand both electrical stress and potential environmental exposure during the cable’s service life.
Special Romex variants like NM-B offer improved heat resistance for installations where higher ambient temperatures may occur. These enhanced insulation properties resemble the more robust materials used in industrial transformers where operating conditions exceed standard requirements. Both applications demonstrate how insulation selection must match anticipated environmental conditions.
Common Romex Types and Applications
NM-B for Standard Residential Wiring
NM-B represents the most common Romex type for interior residential wiring in dry locations, combining cost-effectiveness with reliable performance. This cable type shares installation characteristics with standard transformer secondary wiring where moderate environmental protection suffices for controlled conditions. NM-B cables are suitable for running through walls, ceilings, and other protected spaces in single-family dwellings and apartment buildings.
The balanced construction of NM-B provides adequate mechanical protection while maintaining flexibility for easy installation. These physical properties resemble the practical considerations in transformer lead design where cables must be both durable and manageable during installation. Proper handling prevents kinking or crushing that could damage conductors or compromise insulation integrity.
UF-B for Outdoor and Underground Use
Underground feeder cable (UF-B) serves as the outdoor equivalent of Romex, designed for direct burial or wet location applications. This specialized cable features a moisture-resistant design with conductors embedded in solid thermoplastic that prevents water infiltration. The construction principles share similarities with underground transformer secondary connections where cables must withstand burial conditions while maintaining electrical integrity.
UF-B installations require proper burial depth and physical protection where cables emerge from the ground to prevent damage from landscaping activities. These installation precautions parallel those for underground transformer secondary conductors where proper depth and marking prevent accidental excavation damage. Both applications demonstrate how environmental factors influence wiring method selection and installation practices.
Installation Considerations and Code Compliance
Proper Routing and Protection Methods
Romex cables must be protected from physical damage using approved running boards, guard strips, or conduit when passing through accessible areas like unfinished basements or attics. These protective measures mirror the mechanical safeguards employed in transformer installations where exposed conductors require additional shielding. The NEC specifies particular protection requirements based on installation location and potential exposure to damage.
When running through bored holes in framing members, Romex should be kept at least 1-1/4 inches from the nearest edge of wood framing to prevent nail or screw damage. These clearance requirements resemble the safety margins maintained in transformer designs where proper spacing prevents accidental contact with energized components. Both applications demonstrate how thoughtful installation prevents future hazards.
Box Fill and Connection Requirements
Electrical boxes must be properly sized to accommodate the number of Romex cables entering while providing sufficient space for connections. These box fill calculations parallel the space considerations in transformer terminal compartments where adequate room must exist for proper conductor bending and termination. Overcrowded boxes can lead to insulation damage, poor connections, and potential overheating issues.
Proper stripping length and secure termination ensure reliable connections at devices and junction points. These connection requirements resemble the attention given to transformer terminal connections where poor contact can lead to voltage drop and heating problems. Using the correct wire connectors and following manufacturer specifications prevents loose connections that could cause intermittent operation or safety hazards.
Advanced Applications and Special Considerations
Multi-Wire Branch Circuits
Romex cables containing multiple current-carrying conductors can be used to create multi-wire branch circuits that share a common neutral. These circuit configurations resemble certain transformer secondary arrangements where balanced loads allow for neutral conductor sharing. Special care must be taken to ensure proper phase balancing and handle-tie breakers are used to prevent neutral overload conditions.
The installation of multi-wire circuits requires thorough understanding of NEC requirements and potential hazards associated with improper installation. These safety considerations mirror the precautions needed when working with multi-winding transformers where proper phasing and loading are critical for safe operation. Both applications demonstrate how advanced configurations require additional knowledge and care during installation.
Retrofitting and Renovation Projects
Existing Romex wiring in older homes may need evaluation and potential replacement to meet current code requirements and safety standards. These assessment processes resemble the condition evaluations performed on aging transformer installations where outdated materials may no longer provide adequate performance. Upgrades should consider both immediate needs and potential future electrical demands.
The addition of new Romex circuits in renovation projects often requires careful planning to route cables through finished spaces without compromising structural integrity. These installation challenges parallel those faced when retrofitting transformer connections in existing facilities where space constraints and access limitations must be overcome. Both applications benefit from careful planning and creative routing solutions.
Maintenance and Troubleshooting Guidelines
Identifying Common Romex Issues
Periodic inspection of accessible Romex wiring helps detect potential problems like insulation damage, overheating signs, or improper modifications. These preventive measures resemble the routine testing protocols for transformer insulation systems where early detection of developing issues prevents major problems. Common Romex issues include overloaded circuits, damaged jackets, and outdated wiring methods that no longer meet current safety standards.
Thermal imaging can reveal overheating Romex connections that might indicate loose terminations or overloaded circuits. This diagnostic approach parallels the infrared scanning used to identify hot spots in transformer connections where resistance increases can signal developing problems. Both applications benefit from modern diagnostic techniques that identify issues before they become hazards.
Upgrading Outdated Wiring Systems
Many older homes require Romex circuit upgrades to accommodate increased electrical loads from modern appliances and electronics. These improvements parallel the retrofitting of older transformers with modern monitoring systems and protection devices that enhance reliability. The upgrade process must consider both current needs and potential future requirements while maintaining code compliance throughout the project.
The replacement of ungrounded Romex or undersized conductors improves safety and functionality in older electrical systems. These upgrades resemble the modernization of aging transformer installations where outdated materials may not meet current performance or efficiency standards. Both applications demonstrate the value of periodic system modernization to maintain electrical safety and performance.
Conclusion
Choosing appropriate Romex wiring requires careful consideration of current electrical needs while allowing for potential future upgrades. Through examining cable types, conductor sizing, and installation methods, we recognize how proper Romex selection contributes to safe and reliable power distribution. The engineering principles behind Romex wiring share important similarities with transformer secondary conductor selection, where proper sizing, insulation quality, and installation practices form critical design considerations.
Romex wiring serves as the backbone of residential electrical systems, just as transformer connections form the foundation of power distribution networks. Both applications require materials and installation methods that ensure decades of reliable performance while adapting to technological advancements in electrical distribution. By understanding Romex specifications and following code-compliant installation practices, homeowners and professionals can create electrical systems that combine safety, functionality, and longevity.
The continued evolution of electrical standards and smart home technologies will likely introduce new Romex considerations in coming years. These advancements parallel the ongoing developments in transformer technology where efficiency improvements and smart capabilities influence connection methods. Both fields demonstrate how electrical infrastructure must evolve to support technological progress while maintaining fundamental safety principles that protect users and property.
