Flammable liquid fires present unique challenges that require specialized extinguishers designed specifically for these volatile substances. While transformers primarily involve electrical fire risks, their insulating oils create similar hazards to other flammable liquids when ignited. Understanding proper extinguisher selection for flammable liquids draws upon the same principles used to protect oil-filled transformers from fire risks.
Flammable liquids like gasoline, solvents, and transformer oils belong to Class B fire classification. These fires spread rapidly across surfaces, can reignite easily, and often produce intense heat and thick smoke. The right extinguisher must smother the flames while preventing splash hazards and ensuring complete extinguishment of the liquid fuel source.
Key Characteristics of Flammable Liquid Fires
Flammable liquid fires behave differently from ordinary combustible fires due to their fluid nature and volatility. These fires can quickly spread across surfaces and may flow to new areas if not properly contained. The burning liquids produce vapors that can ignite suddenly, creating flash fire hazards similar to transformer oil fires.
Transformer engineers recognize these characteristics from experience with insulating oil fires. The extinguishing methods must account for the liquid’s flash point, viscosity, and potential for reignition. Proper suppression requires creating a vapor-tight seal over the burning liquid while cooling it below ignition temperature.
Recommended Extinguishers for Flammable Liquids
Foam Fire Extinguishers

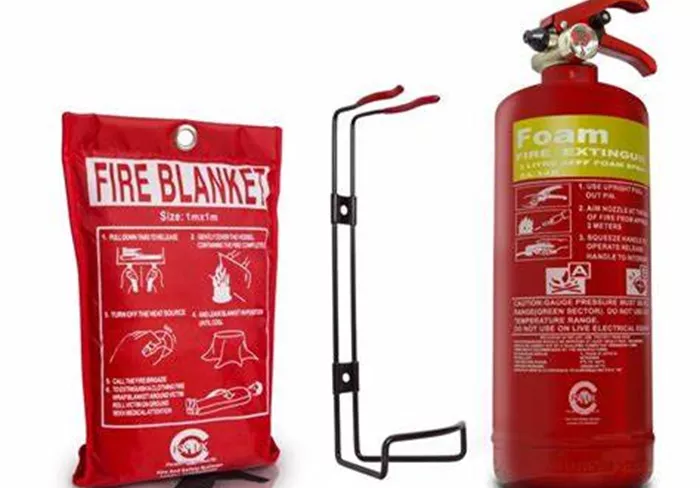

Foam extinguishers provide the most effective solution for flammable liquid fires, including transformer oil blazes. These units contain aqueous film-forming foam (AFFF) that creates a cohesive blanket over burning liquids. The foam works by smothering flames while cooling the fuel surface and preventing vapor release.
In transformer applications, foam extinguishers must only be used after confirming complete de-energization due to water content conductivity. The foam blanket proves particularly effective for hydrocarbon fires, with alcohol-resistant formulations available for polar solvents. Proper application techniques involve gentle banking off nearby surfaces to avoid disturbing the burning liquid.
Carbon Dioxide (CO₂) Extinguishers
CO₂ extinguishers offer clean, non-conductive options for small flammable liquid fires. The gaseous discharge leaves no residue and won’t damage sensitive equipment, making it ideal for electrical environments. CO₂ works by displacing oxygen while providing significant cooling effect.
For transformer facilities, CO₂ extinguishers provide advantages when small electrical fires might involve nearby flammable liquids. The extremely cold discharge helps cool hot surfaces while preventing reignition better than some alternatives. Limitations include potential for reignition if the gas dissipates before complete cooling.
Special Considerations for Transformer Facilities
Oil-Filled Equipment Protection
Oil-filled transformers present unique challenges requiring careful extinguisher selection. While foam works well for oil fires after de-energization, it cannot be used on energized equipment. This creates complex scenarios where facilities must maintain multiple extinguisher types with clear protocols for proper use.
The best approach involves using CO₂ or dry chemical extinguishers on electrical fire components, then transitioning to foam only after verifying complete de-energization. Transformer manufacturers provide specific guidance on approved suppression methods for their equipment, as synthetic ester fluids may require different approaches than mineral oil.
Flammable Storage Areas
Transformer facilities often contain storage areas for insulating oils and solvents that present concentrated fire hazards. These areas require specialized foam or clean agent extinguishers that can handle potential large liquid fires while being positioned safely away from electrical hazards.
Proper containment systems should prevent spilled liquids from flowing toward electrical equipment. Extinguishers must be mounted near potential hazard points but protected from accidental damage. Monthly inspections verify foam extinguishers remain properly pressurized with undegraded concentrate.
Performance Comparison of Extinguishers
Effectiveness on Different Liquid Types
Various flammable liquids require slightly different extinguisher approaches. Hydrocarbon fuels respond well to standard AFFF foam, while alcohol-based solvents need alcohol-resistant formulations. CO₂ works best for small, contained fires but becomes less effective for deep or large surface area blazes.
Transformer facilities should test extinguisher effectiveness with their specific liquids during safety planning. The evaluation process mirrors transformer fluid fire protection assessments, ensuring suppression methods match the exact hazards present.
Electrical Safety Considerations
While flammable liquid extinguishers primarily address Class B hazards, their use in electrical environments requires careful planning. Foam extinguishers must never be used on or near live electrical components due to conductivity risks. CO₂ and dry chemical extinguishers rated for electrical use provide safer options when electrical hazards coexist with flammable liquids.
Facilities should clearly mark exclusion zones and provide proper alternatives for combined hazard scenarios. Personnel training must emphasize these electrical safety considerations when responding to flammable liquid fires in transformer installations.
Implementation Best Practices
Strategic Extinguisher Placement
Proper extinguisher placement significantly impacts emergency response effectiveness. Foam units should be mounted within 15 meters of potential hazards, while CO₂ and dry chemical extinguishers need placement within 10 meters. Locations must balance quick access with protection from damage and environmental exposure.
Clear signage should identify extinguisher types and approved uses, following the same visual communication standards used throughout industrial facilities. Regular inspections verify units remain fully charged and accessible without obstructions.
Comprehensive Personnel Training
Effective training ensures personnel understand proper extinguisher use while recognizing limitations. Hands-on drills should simulate realistic scenarios where operators must select correct equipment and apply proper techniques. Training must emphasize the PASS method (Pull, Aim, Squeeze, Sweep) for effective extinguisher operation.
Documentation should verify all personnel receive initial and annual refresher training, with additional sessions following equipment changes. Contractors must demonstrate equivalent knowledge before working in hazardous areas.
Maintenance and Inspection Protocols
Monthly Visual Inspections
All flammable liquid extinguishers require monthly checks of pressure, seals, and physical condition. Foam units need additional verification of solution clarity, while dry chemical extinguishers should be gently agitated to prevent powder compaction. Any damage or tampering requires immediate replacement.
Facilities must maintain detailed inspection records demonstrating compliance with safety regulations. The documentation process mirrors requirements for other critical safety equipment in industrial environments.
Annual Professional Servicing
Certified technicians should perform complete annual servicing including discharge testing and component verification. Foam extinguishers require checks of nozzle function and foam expansion ratios, while dry chemical units need complete powder replacement and pressure testing.
Service reports must document compliance with all applicable standards, including specialized requirements for electrical safety in transformer facilities. Any units showing performance degradation should be immediately refilled or replaced.
Emerging Technologies in Fire Protection
Advanced Foam Formulations
New foam technologies provide improved performance for modern flammable liquid hazards. These formulations offer better vapor sealing, longer-lasting coverage, and enhanced environmental profiles. Some products demonstrate superior effectiveness on challenging fuels while being easier to clean up after use.
These advancements parallel improvements in transformer fire protection, where formulations evolve to handle new insulating fluid types. The cross-industry technology transfer benefits both general flammable liquid and specialized electrical fire protection applications.
Integrated Detection Systems
Modern facilities increasingly utilize sophisticated systems combining fire detection with automated suppression activation. These systems can identify incipient fires before they fully develop, triggering targeted response while alerting personnel. The technology shares concepts with advanced transformer protection systems using multiple sensing modalities.
As flammable liquid handling becomes more complex, fire protection systems must evolve accordingly. The experience with transformer protection provides valuable insights for developing comprehensive solutions across industrial applications.
Conclusion
Selecting proper extinguishers for flammable liquids requires understanding both the unique fire characteristics and potential electrical hazards. The knowledge electrical engineers apply to transformer protection provides valuable insights for general flammable liquid scenarios. Foam extinguishers generally offer the most effective solution, with CO₂ and dry chemical alternatives providing important options for specific situations.
By implementing these best practices and staying informed about new technologies, facilities can achieve optimal protection against flammable liquid fires. The investment in proper extinguishers and training provides substantial returns through reduced equipment damage, lower liability risks, and enhanced personnel safety. Regular reviews and updates ensure the protection remains effective as technologies and operations evolve.
