Flammable liquid fires require specialized extinguishers that can safely suppress these unique hazards without spreading burning material or creating additional dangers. In transformer facilities and electrical equipment installations, proper extinguisher selection becomes particularly critical due to the presence of insulating oils, lubricants, and cleaning solvents that present Class B fire risks. The right extinguisher must effectively smother liquid fires while maintaining compatibility with nearby electrical hazards and sensitive equipment.
Transformer oil, the most common flammable liquid in electrical facilities, has a flash point between 130-180°C and can produce intense, fast-spreading fires when ignited. These fires behave differently from ordinary combustibles, demanding extinguishers that create vapor-tight seals over liquid surfaces while preventing reignition. Understanding the proper extinguisher types and their applications forms the foundation of effective flammable liquid fire protection in electrical environments.
Key Characteristics of Effective Flammable Liquid Extinguishers
Extinguishers designed for flammable liquid fires share several important features that make them suitable for these challenging scenarios. They must create a lasting barrier between the fuel and oxygen, as liquid fires often reignite when this barrier breaks down. The extinguishing agents should float on liquid surfaces rather than mixing with or sinking below the burning material. Rapid flame knockdown capability proves essential for preventing fire spread to adjacent equipment or structures.
In electrical facilities, flammable liquid extinguishers must also consider potential nearby energized equipment. While some types can be used on small electrical fires, others require complete de-energization before application. The extinguishers should leave minimal residue that could damage sensitive components or complicate post-fire cleanup and equipment restoration.
Recommended Extinguishers for Flammable Liquids
Foam Extinguishers
Foam extinguishers represent the most effective portable solution for flammable liquid fires in transformer facilities when properly applied. These units contain aqueous film-forming foam (AFFF) or alcohol-resistant aqueous film-forming foam (AR-AFFF) that creates a cohesive blanket over burning liquids. The foam works by smothering flames while cooling the fuel surface and preventing vapor release that could cause reignition.
In transformer applications, foam extinguishers must only be used after confirming complete equipment de-energization due to the water content’s conductivity. The foam blanket proves particularly effective for mineral oil fires, with alcohol-resistant formulations also handling polar solvent fires that might occur from cleaning products. Proper application techniques involve gently banking the foam off nearby surfaces to avoid disturbing the burning liquid.

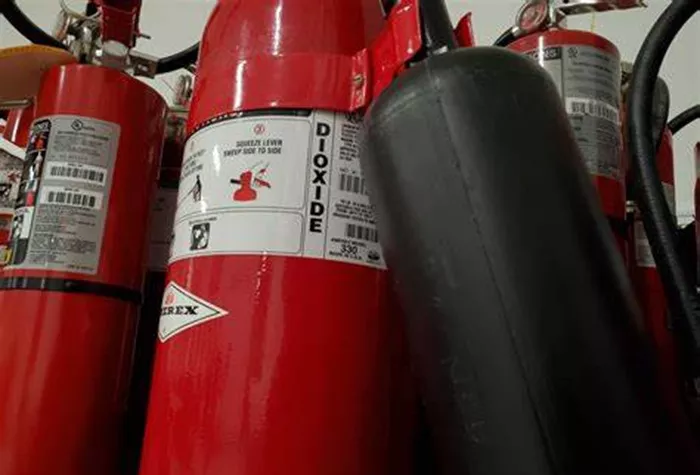

Carbon Dioxide (CO₂) Extinguishers
CO₂ extinguishers provide excellent options for small flammable liquid fires in electrical environments where clean operation is prioritized. The gaseous discharge leaves no residue and won’t damage sensitive equipment, while rapidly displacing oxygen to extinguish flames. CO₂ works well for contained liquid fires in drums, small spills, or electrical cabinets where flammable liquids may accumulate.
In transformer facilities, CO₂ extinguishers offer the advantage of being safe for use on small electrical fires that might involve nearby liquids. The extremely cold discharge helps cool hot surfaces while preventing reignition better than dry chemical alternatives in some scenarios. The main limitations include limited reach and the potential for reignition if the CO₂ dissipates before the liquid cools sufficiently.
Dry Chemical Extinguishers (Class B Rated)
Multipurpose dry chemical extinguishers specifically rated for Class B fires provide versatile options for flammable liquid hazards. These formulations use sodium bicarbonate or potassium bicarbonate powders with additives that help smother liquid fires more effectively than standard dry chemical agents. The powder interrupts flame propagation while creating a slight barrier over the liquid surface.
In transformer facilities, dry chemical extinguishers offer the advantage of being safe for use on small electrical fires that might ignite surrounding liquids. The residue requires cleanup but prevents reignition better than CO₂ in some scenarios. Facilities should select models specifically labeled for Class B fires and verify their effectiveness against the specific liquids present in their operations.
Special Considerations for Transformer Facilities
Oil-Filled Equipment Protection
Oil-filled transformers and circuit breakers present unique challenges due to the large volumes of flammable insulating oil they contain. While foam extinguishers work well for oil fires after de-energization, they cannot be used on energized equipment. This requires facilities to maintain multiple extinguisher types and implement clear protocols for when each can be safely deployed.
The best approach involves using CO₂ or dry chemical extinguishers rated for electrical hazards on the initial electrical fire component, then transitioning to foam application only after verifying complete de-energization. Facilities should consult transformer manufacturers for specific guidance on approved suppression methods, as synthetic ester fluids may require different approaches than mineral oil.
Flammable Storage Areas
Transformer facilities often maintain dedicated storage areas for insulating oils, lubricants, and cleaning solvents that present concentrated flammable liquid hazards. These areas require specialized foam or clean agent extinguishers that can handle potential large liquid fires while being positioned safely away from electrical hazards.
Proper containment systems should prevent spilled liquids from flowing toward electrical equipment, and extinguishers should be mounted near potential hazard points but protected from accidental damage. Monthly inspections must verify that foam extinguishers remain properly pressurized and that the concentrate hasn’t degraded or separated in storage.
Performance Comparison of Flammable Liquid Extinguishers
Effectiveness on Different Liquid Types
Various flammable liquids found in transformer facilities require slightly different extinguisher approaches. Mineral oil responds well to standard AFFF foam, while synthetic esters and silicone-based fluids may need specialized formulations. Polar solvents like alcohol require alcohol-resistant foams that won’t break down upon contact.
CO₂ works well for most hydrocarbon liquids in small quantities but becomes less effective for deep or large surface area fires. Dry chemical extinguishers provide good general coverage but may require more agent for viscous liquids compared to thinner, more volatile flammables. Facilities should test extinguisher effectiveness with their specific liquids during safety planning.
Electrical Safety Considerations
While flammable liquid extinguishers primarily address Class B hazards, their use in electrical environments requires careful consideration of nearby energized equipment. Foam extinguishers must never be used on or near live electrical components due to their water content’s conductivity. CO₂ and dry chemical extinguishers rated for electrical use provide safer options when electrical hazards coexist with flammable liquids.
Facilities should clearly mark exclusion zones where certain extinguisher types cannot be used and provide proper alternatives for combined hazard scenarios. Personnel training must emphasize these electrical safety considerations when responding to flammable liquid fires in transformer installations.
Implementation Best Practices
Placement and Accessibility
Proper extinguisher placement significantly affects emergency response effectiveness in transformer facilities. Flammable liquid extinguishers should be mounted near potential hazard areas but at safe distances from electrical equipment to prevent accidental misuse. The recommended maximum travel distance is 15 meters for foam units and 10 meters for CO₂ or dry chemical extinguishers in flammable liquid areas.
Clear signage should identify extinguisher locations and types while indicating their approved uses. Facilities should implement color-coding systems that help personnel quickly distinguish flammable liquid extinguishers from other types during emergencies. Regular inspections verify that units remain fully charged and accessible without obstructions that could delay response.
Personnel Training Requirements
Comprehensive training ensures personnel understand how to properly use flammable liquid extinguishers while recognizing their limitations. Hands-on drills should simulate realistic scenarios where operators must select the correct extinguisher and apply it using proper techniques. Training must emphasize the importance of maintaining proper stance and discharge angles to maximize effectiveness while minimizing risks.
Documentation should verify all personnel receive initial and refresher training at least annually, with additional sessions following any material changes that might affect fire risks. Contractors working in transformer facilities must demonstrate equivalent knowledge of proper extinguisher selection and use before being permitted to work in flammable liquid areas.
Maintenance and Inspection Protocols
Monthly Visual Inspections
All flammable liquid extinguishers require monthly visual checks to verify proper pressure, intact seals, and unobstructed access. Foam units need additional verification of solution clarity and anti-freeze protection in cold climates. Any signs of damage, corrosion, or tampering necessitate immediate replacement to ensure reliability during emergencies.
The inspections should include gentle agitation of foam extinguishers to prevent concentrate settling and verification that hazard area markings remain clear. Facilities must maintain detailed records of all inspections and corrective actions for compliance purposes.
Annual Professional Servicing
Certified technicians should perform comprehensive annual servicing that includes complete discharge testing and refill operations. For foam extinguishers, this includes checking nozzle function, verifying foam expansion ratios, and testing solution concentrations. Any units showing performance degradation must be immediately refilled or replaced.
In transformer facilities, the annual service should confirm that extinguishers remain appropriate for current flammable liquid hazards and that prohibited use markings remain accurate. Service reports must document compliance with both fire safety standards and electrical equipment protection requirements.
Emerging Technologies in Flammable Liquid Fire Protection
High-Expansion Foam Systems
New high-expansion foam technologies provide enhanced protection for large flammable liquid hazards in transformer facilities. These systems generate foam with expansion ratios exceeding 200:1, creating thick, stable blankets that can cover substantial oil fires quickly. The ultra-light foam minimizes liquid disturbance while providing excellent heat resistance and vapor suppression.
Facilities are increasingly installing these systems in transformer vaults and oil storage areas where conventional foam might require excessive quantities. The systems can be integrated with heat detection for automatic activation while maintaining manual override capabilities for emergency response flexibility.
Clean Agent Alternatives
New clean agent technologies are being adapted for flammable liquid fire protection in sensitive electrical environments. These gaseous systems use chemicals like FK-5-1-12 or Novec 1230 that leave no residue and cause no ozone depletion. While primarily designed for electrical fires, some formulations show promise for small flammable liquid hazards where cleanup concerns exist.
These systems prove particularly valuable in control rooms or relay panels where flammable liquids might be present near sensitive electronics. The higher cost becomes justified by reduced equipment damage and faster restoration of critical systems following discharge.
Conclusion
Selecting the proper extinguishers for flammable liquid fires in transformer facilities requires careful consideration of both immediate suppression needs and long-term equipment protection. Foam, CO₂, and specialized dry chemical extinguishers each offer distinct advantages for different scenarios when properly matched to the specific hazards present. A well-designed fire protection program combines these extinguishers with clear zoning, comprehensive training, and regular maintenance to ensure safe, effective response to flammable liquid emergencies.
By implementing these best practices and staying informed about emerging technologies, transformer facilities can achieve optimal fire safety without compromising electrical system reliability or personnel protection. The investment in proper flammable liquid fire extinguishers and training pays substantial dividends through reduced equipment damage, lower liability risks, and improved emergency response effectiveness throughout the facility’s operational life.
