In the realm of electrical engineering and power distribution, transformers are indispensable components that facilitate the efficient transmission and utilization of electrical energy. Among the various types of transformers, the step-up transformer plays a crucial role in modern electrical systems. This article delves into the intricacies of step-up transformers, explaining their functions, applications, and benefits, and exploring why they are integral to the efficient operation of electrical grids.


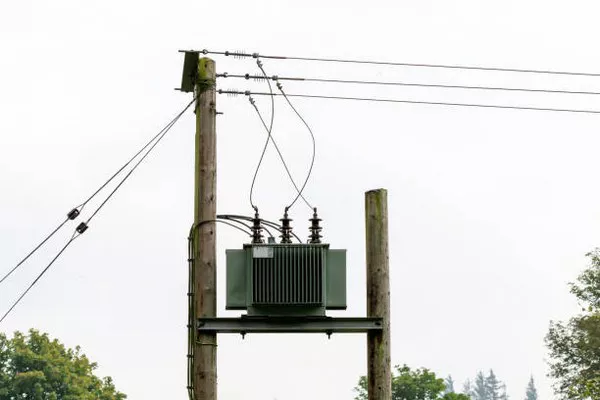

Understanding Step-Up Transformers

A transformer is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. The primary purpose of a step-up transformer is to increase the voltage from a lower level to a higher level. This transformation is achieved through the winding ratios of the primary and secondary coils. In a step-up transformer, the number of turns in the secondary winding is greater than in the primary winding, resulting in a higher secondary voltage.


The fundamental operation of a transformer is based on Faraday’s law of electromagnetic induction, which states that a change in the magnetic flux through a circuit induces an electromotive force (EMF) in the circuit. In a step-up transformer, an alternating current (AC) passing through the primary coil generates a magnetic field, which induces a higher voltage in the secondary coil due to the greater number of turns.

Applications of Step-Up Transformers

Power Transmission

The most significant application of step-up transformers is in the transmission of electrical power over long distances. Electricity generated at power plants is typically produced at medium voltages (e.g., 11-25 kV). To minimize energy losses during transmission, it is crucial to transmit electricity at high voltages and low currents. Step-up transformers at generating stations increase the voltage to levels ranging from 110 kV to 765 kV, depending on the transmission requirements. High-voltage transmission reduces the I²R losses (where I is the current and R is the resistance of the transmission lines), thereby improving the efficiency of power delivery over long distances.

Renewable Energy Integration

With the growing emphasis on renewable energy sources, step-up transformers have become essential in integrating power from sources such as wind turbines and solar farms into the grid. These renewable energy sources typically generate electricity at low to medium voltages. Step-up transformers are used to elevate the voltage to match the grid’s transmission levels, facilitating efficient and reliable incorporation of renewable energy into the existing power infrastructure.

Industrial Applications

In industrial settings, certain processes and machinery require high-voltage power for efficient operation. Step-up transformers are used to supply the necessary high-voltage power to equipment such as induction furnaces, high-intensity discharge lamps, and specialized testing equipment. This capability ensures that industrial processes can operate smoothly and efficiently, without the constraints imposed by lower voltage levels.

Electrical Testing and Research

Laboratories and research facilities often require precise high-voltage levels for testing electrical equipment, insulation materials, and other components. Step-up transformers enable these facilities to generate the required voltages for testing purposes. This application is critical for ensuring the safety, reliability, and performance of electrical products before they are deployed in real-world scenarios.

Benefits of Using Step-Up Transformers

Enhanced Transmission Efficiency

The primary benefit of using step-up transformers in power transmission is the significant reduction in transmission losses. By increasing the voltage and reducing the current, the resistive losses in transmission lines are minimized. This efficiency gain is crucial for maintaining the reliability and cost-effectiveness of power delivery, especially over long distances.

Cost-Effective Infrastructure

Higher voltage transmission allows for the use of thinner conductors, as the current is reduced. This reduction in conductor size translates to lower material costs for transmission lines. Additionally, the infrastructure required for high-voltage transmission is generally more economical in terms of maintenance and energy efficiency compared to low-voltage transmission systems.

Improved Voltage Regulation

Step-up transformers contribute to better voltage regulation across the power grid. By boosting the voltage at the generation point, the voltage drop that occurs during transmission is less significant, ensuring that the voltage levels remain within acceptable ranges when they reach the distribution points. This regulation is vital for maintaining the quality and stability of the power supply to end users.

Support for Renewable Energy Growth

The integration of renewable energy sources into the power grid is a pivotal factor in achieving sustainable energy goals. Step-up transformers enable the effective connection of these decentralized energy sources to the main grid, promoting the growth of renewable energy and reducing reliance on fossil fuels. This support is essential for transitioning to a cleaner and more sustainable energy future.

Scalability and Flexibility

Step-up transformers provide the flexibility to adapt to varying power generation and transmission needs. As the demand for electricity grows and new generation sources come online, the ability to scale up voltage levels efficiently ensures that the power grid can accommodate these changes without extensive modifications. This scalability is vital for the dynamic and evolving nature of modern power systems.

Challenges and Considerations

While step-up transformers offer numerous benefits, their implementation also involves certain challenges and considerations:

Insulation and Cooling Requirements

High-voltage transformers require robust insulation and cooling systems to prevent breakdowns and overheating. The design and maintenance of these systems are critical to ensure the safe and reliable operation of step-up transformers.

Economic Factors

The initial cost of step-up transformers and the associated high-voltage infrastructure can be significant. However, these costs are often offset by the long-term savings in transmission efficiency and reduced losses. Careful economic analysis and planning are essential to justify these investments.

Environmental Impact

The installation of high-voltage transmission lines and transformers can have environmental impacts, including land use and potential effects on wildlife. Mitigating these impacts through careful planning and environmental considerations is crucial for sustainable development.

See Also   Why Step Up Transformer Decreases Current


Step-up transformers are indispensable components in modern electrical systems, playing a vital role in enhancing the efficiency and reliability of power transmission. By elevating voltage levels, these transformers minimize transmission losses, support the integration of renewable energy sources, and ensure stable power delivery to end users. Despite the challenges associated with their implementation, the benefits of step-up transformers in terms of improved transmission efficiency, cost-effectiveness, and scalability make them essential for the future of electrical power systems. As the demand for electricity continues to grow and the push for sustainable energy intensifies, step-up transformers will remain a cornerstone of the global power infrastructure, facilitating the seamless flow of electrical energy across vast distances and diverse applications.
