The electrical connection between the utility meter and main service panel represents one of the most critical wiring runs in any building’s electrical system. As an electrical equipment engineer specializing in transformers, I understand how proper wire selection for this crucial link impacts system safety, efficiency, and compliance. This comprehensive guide examines the appropriate wire types, installation considerations, and technical factors that ensure reliable power distribution from the meter to the panel while maintaining code compliance and optimal performance.

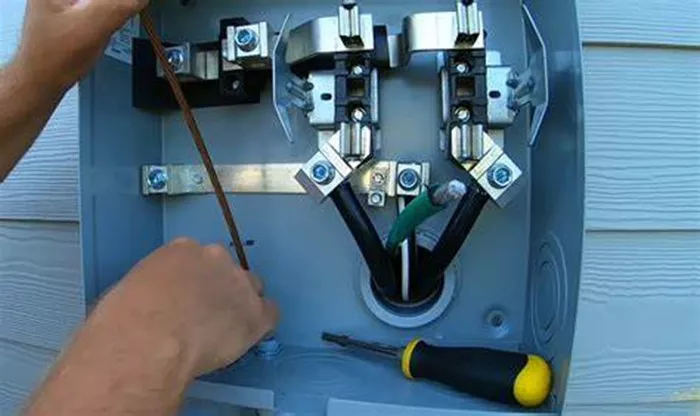

Understanding the Meter to Panel Connection
The conductors running from the electric meter to the main service panel carry the full electrical load of the building, making proper wire selection essential for safe operation. These wires must handle the maximum current the electrical service can deliver while withstanding environmental conditions and maintaining proper insulation integrity over decades of service.
Electrical service capacity considerations
The wire size and type must match the amperage rating of the electrical service, whether 100A, 200A, or higher capacity. The National Electrical Code specifies minimum wire sizes for various service ratings, but practical installations often use larger conductors to account for voltage drop and future expansion needs. The connection represents the building’s main power feed before any branch circuit division occurs.
Recommended Wire Types for Meter to Panel Runs
Several wire types meet the demanding requirements for this critical electrical connection, each offering specific advantages depending on installation method and local code requirements.
Service entrance cable (SEU and SER)
Service entrance cable, available in both underground (SEU) and overhead (SER) configurations, provides a complete wiring solution for meter to panel connections. These cables combine insulated phase conductors with a concentric neutral wrapped around them, all contained within a durable outer jacket. SEU cable typically uses aluminum conductors for cost-effectiveness in residential applications, while SER may employ copper for superior conductivity.
Individual THWN-2 conductors in conduit
For installations requiring conduit protection, individual THWN-2 (Thermoplastic Heat and Water Resistant Nylon-coated) conductors offer excellent flexibility and durability. These moisture-resistant wires can be pulled through conduit while maintaining their insulation properties in wet locations. This approach allows for custom conductor sizing and easier replacement if needed, though it requires more labor for installation.
Conductor Material Selection
The choice between aluminum and copper conductors involves trade-offs between cost, performance, and installation requirements that must be carefully considered for meter to panel applications.
Aluminum wire advantages
Aluminum service entrance cables provide a cost-effective solution for most residential and light commercial installations. Modern AA-8000 series aluminum alloys have addressed historical issues with creep and oxidation that plagued earlier aluminum wiring. Proper installation with antioxidant compound and torque-rated lugs ensures reliable long-term connections at both meter and panel terminals.
Copper wire performance
Copper conductors offer superior conductivity and smaller physical size for a given ampacity, though at significantly higher material cost. Copper remains the preferred choice for services requiring compact wiring or where maximum current density is needed. The metal’s inherent resistance to oxidation and excellent connection properties make it ideal for critical applications despite the premium price.
Installation Methods and Requirements
Proper installation techniques ensure the meter to panel wiring maintains safety and performance throughout its service life while meeting electrical code requirements.
Conduit installation practices
When using individual conductors in conduit, proper sizing and fill calculations prevent overheating while allowing for future wire replacement if needed. Rigid metal conduit provides maximum physical protection, while PVC conduit offers corrosion resistance for underground installations. All conduit runs must include proper expansion fittings and support spacing as specified by local codes.
Direct burial cable considerations
Underground service entrance cables must be rated for direct burial and installed at proper depths to prevent damage from excavation or frost heave. The cable should be bedded in sand or other protective material when passing through rocky soil, with warning tape placed above the trench to alert future excavators.
Voltage Drop Calculations
Proper wire sizing must account for voltage drop over the distance between meter and panel to ensure adequate voltage reaches all branch circuits.
Impact of conductor length
Longer runs between meter and panel require larger wire sizes to maintain acceptable voltage levels at the service equipment. While the NEC specifies minimum wire sizes based on ampacity, practical installations often exceed these minimums to keep voltage drop below 3% for the feeder and 5% total to the farthest outlet.
Transformer secondary considerations
For services fed from pad-mounted or pole-mounted transformers, the utility’s secondary voltage must be considered when calculating voltage drop. The transformer’s impedance and tap settings affect the actual voltage available at the service point, which influences conductor sizing decisions.
Overcurrent Protection Requirements
The meter to panel connection requires careful coordination with the service disconnect and main breaker to ensure proper protection of the conductors.
Main breaker sizing
The service entrance conductors must be protected by an overcurrent device rated no higher than their ampacity, with exceptions allowed for motor starting currents and transformer inrush conditions. The main breaker or fuse protects these conductors from overload while allowing for the full rated current of the service.
Transformer primary protection
When the service originates from a customer-owned transformer, the primary side protection must coordinate with the secondary conductors to ensure proper fault clearing times. This protection scheme prevents damage to the transformer while maintaining safety for the service entrance conductors.
Grounding and Bonding Considerations
Proper grounding of the meter to panel connection ensures safety and reliable operation of the entire electrical system.
Grounding electrode conductor
The connection between the service panel and grounding electrode system must use an appropriately sized conductor based on the service capacity. This conductor completes the fault current path and stabilizes the system voltage to ground during normal operation.
Neutral to ground bonding
The meter to panel connection typically includes the main bonding jumper that connects the neutral conductor to the equipment grounding system at the first means of disconnect. This critical connection must be properly sized and installed to ensure effective fault current return paths.
Code Compliance and Inspection Requirements
All meter to panel wiring must comply with local adaptations of the National Electrical Code and any additional utility company requirements.
NEC service entrance requirements
Article 230 of the NEC specifies detailed requirements for service entrance conductors, including minimum sizes, insulation ratings, and installation methods. These rules address clearance, protection from physical damage, and proper identification of conductors.
Utility company specifications
Local power providers often have additional requirements for meter base connections, conductor types, and disconnect locations that must be followed for service approval. These specifications may dictate specific wire types or installation methods beyond standard code requirements.
Emerging Technologies and Future Considerations
Advancements in materials and electrical service design continue to influence meter to panel wiring practices.
Smart meter integration
Modern digital meters with advanced monitoring capabilities may require additional communication wiring between the meter and panel for data collection and remote service functions. These low-voltage conductors must be properly separated from power wiring to prevent interference.
Renewable energy ready installations
Future-proof meter to panel wiring considers potential additions like solar photovoltaic systems or battery backups that may require larger service conductors or additional conduit space for future connections.
Conclusion
Selecting the proper wire type for the meter to panel connection requires careful consideration of electrical requirements, installation conditions, and long-term performance expectations. From service entrance cables to individual THWN-2 conductors in conduit, each option offers specific advantages that must be weighed against project requirements and budget constraints. By understanding these factors and following code-compliant installation practices, electrical professionals can ensure safe, reliable power distribution from the utility connection point throughout the entire electrical system.
This guide provides a comprehensive framework for designing and installing meter to panel wiring systems that meet current needs while accommodating future electrical demands. Proper conductor selection and installation techniques form the foundation for building electrical systems that deliver decades of trouble-free service while maintaining the highest safety standards. The critical nature of this connection warrants careful planning and execution to ensure optimal performance of the entire electrical infrastructure.
